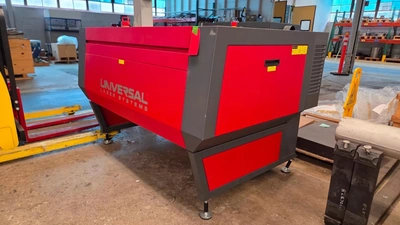

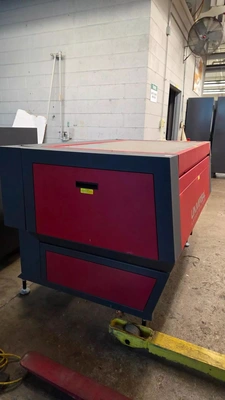

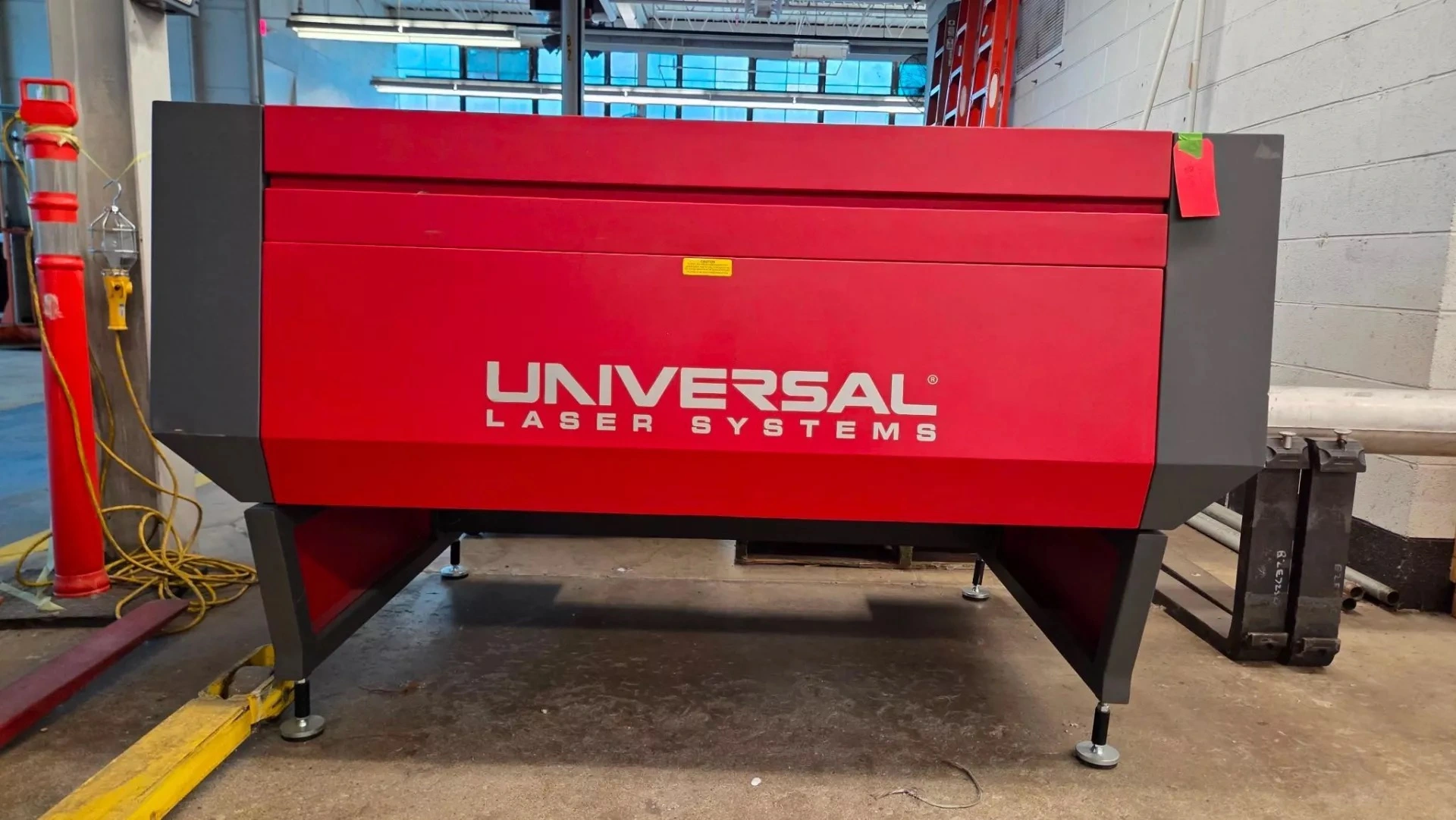

USED 2018 UNIVERSAL LASER SYSTEMS ILS12
Overview
Specs
Capacity: 75 Watt

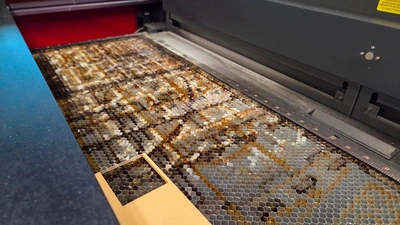

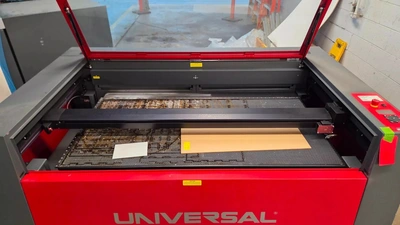

LASER MATERIAL PROCESSING AREA: 48″ X 24″ (1219 X 610 MM)
MAXIMUM PART SIZE (W X D X H): 52.5″ X 30″ X 12″ (1334 X 762 X 305 MM)
MOTORIZED Z-AXIS TABLE LIFT CAPACITY: 60 LBS (27 KG)
ROTARY CAPACITY: 10.25″ (260 MM) MAXIMUM DIAMETER
OVERALL LASER SYSTEM FOOTPRINT (W X D X H): 69″ X 44″ X 46″ (1753 X 1118 X 1168 MM)
LASER SYSTEM WEIGHT: APPROX. 430 LBS (195 KG)
CLASS 4 PASS-THROUGH WORK AREA: 24″ X INFINITE LENGTH

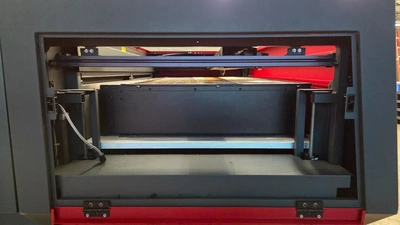

OPEN SIDE PORT ENTRY CLEARANCE: 23.75″ X 8″
RESOLUTION SELECTION: UP TO 1000 DPI / LPI
OPTICS & MOTION: DIGITAL STEPPER MOTORS, ENCLOSED V-GROOVE RAILS, KEVLAR STRUCTURAL BELTS
LASER POWER CONFIGURATION: SUPPORTS SINGLE (10 TO 75 WATTS) OR DUAL (UP TO 150 WATTS) LASER CARTRIDGES (RAPID RECONFIGURATION™)
ELECTRICAL POWER REQUIREMENTS: SINGLE-PHASE 220V–240V AC, 50/60 HZ, 10–16 AMPS

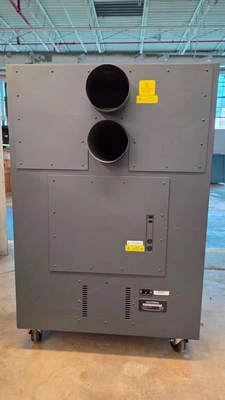

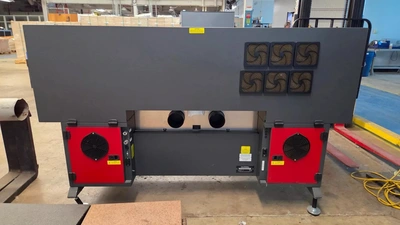

EXHAUST COLLECTOR PORTS: DUAL 4″ OD FITTINGS ON REAR CHASSIS
LASER MANUFACTURE DATE: MAY 2018
EQUIPPED WITH:

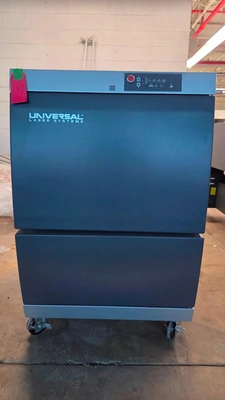

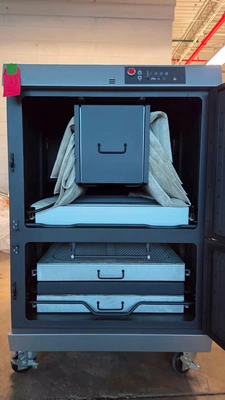

UNIVERSAL LASER SYSTEMS UAC 4000 ADVANCED AIR FILTRATION UNIT (SN: UAC4000XXX040118122643, MANUFACTURED: APRIL 2018, 4-STAGE ACTIVE FILTRATION SYSTEM, MOBILE ON CASTERS)
