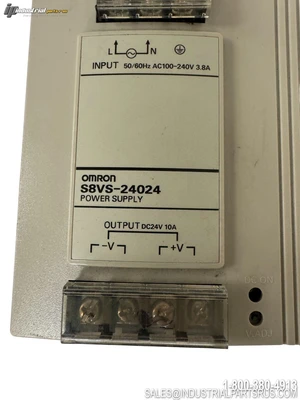

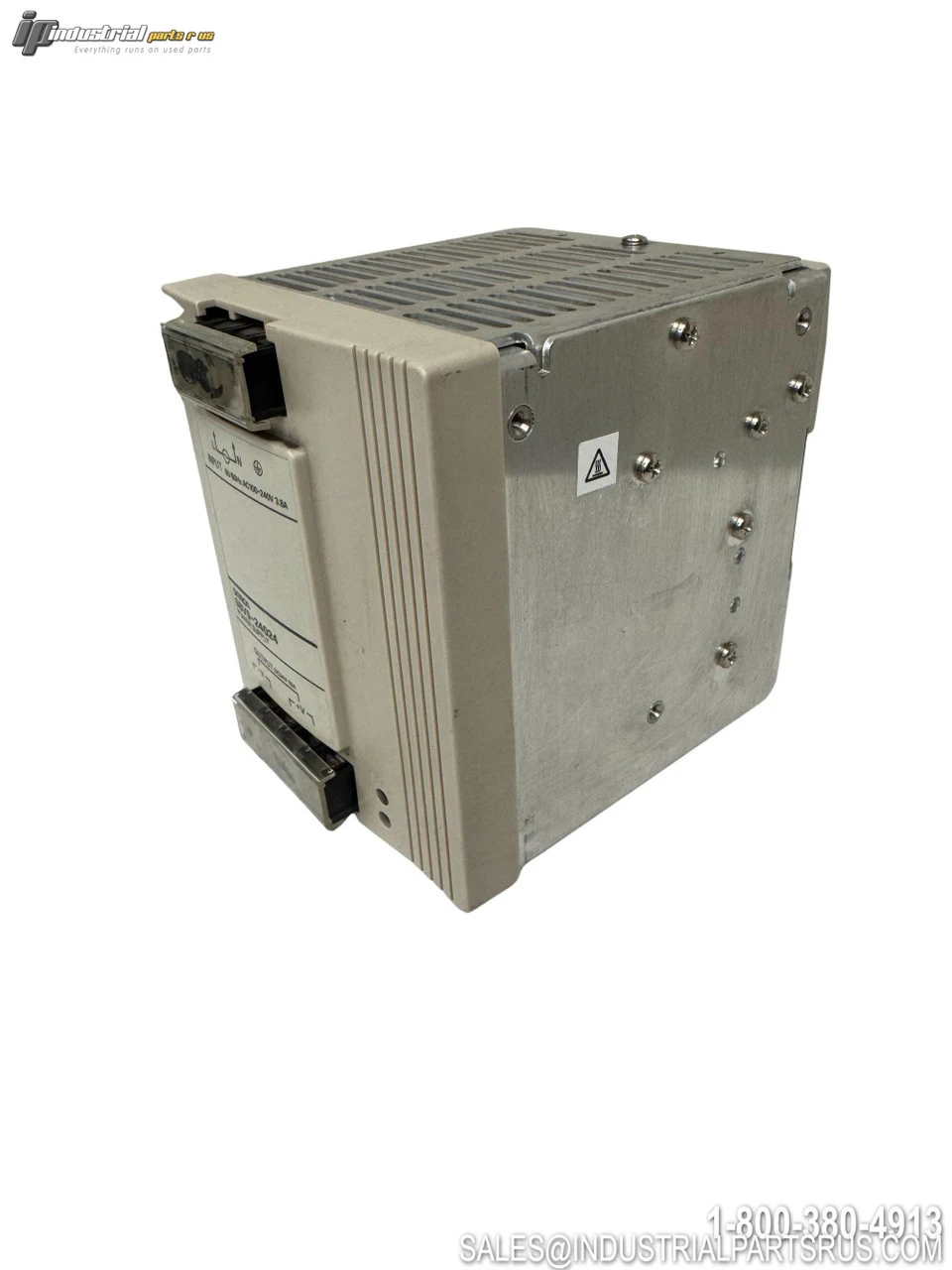

USED OMRON S8VS-24024

The Omron S8VS-24024 is a 240-watt switch mode power supply (SMPS) from Omron's S8VS series, designed for industrial DIN rail installation. It accepts a wide-range single-phase AC input (85–264 VAC) or DC input (80–370 VDC) and delivers a regulated 24 VDC output at up to 10 A. This basic model features a sinking alarm output (emitter COM), screw terminal block connections, natural convection cooling with no fan required, and automatic reset overload protection. The unit is gray in color and supports series operation of up to 2 units for higher voltage applications.
Specification
Value
Brand
Omron
Model / Part Number
S8VS-24024
Product Type
Switch Mode Power Supply (SMPS)
Series
S8VS
Power Rating
240 W
Input Voltage (AC)
85–264 VAC (100/120/240 VAC nominal)
Input Voltage (DC)
80–370 VDC (110 VDC nominal)
Input Current (Max)
3.8 A @ 100 VAC / 2.0 A @ 200 VAC
Input Phase
Single-phase (1AC) or DC
Input Frequency
50/60 Hz
Output Voltage
24 VDC
Output Current
10 A
Number of Outputs
1
Output Type
Fixed
Hold Time
64 ms @ 100 VAC / 64 ms @ 200 VAC
Alarm Output
Sinking (Emitter COM), 30 VDC max, 50 mA max
Indication Monitor
Without indication (basic model)
Overload Protection
105%–160% of rated load current, auto reset (inverted-L drop)
Overvoltage Protection
Yes
Undervoltage Detection
Approx. 80% (75–90%) of rated output
Cooling Method
Natural convection (gravity/fanless)
Mounting Type
DIN Rail
Connection Type
Screw Terminal Block
Operating Temperature
-10°C to +60°C
Length
125.3 mm
Width
100 mm
Series Operation
Up to 2 units in series
Certifications
UL 508, CSA C22.2 No107.1, CE, EN 62477-1, EN 61204-3, EN 55011 Class A/B, SEMI F47-0706
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
