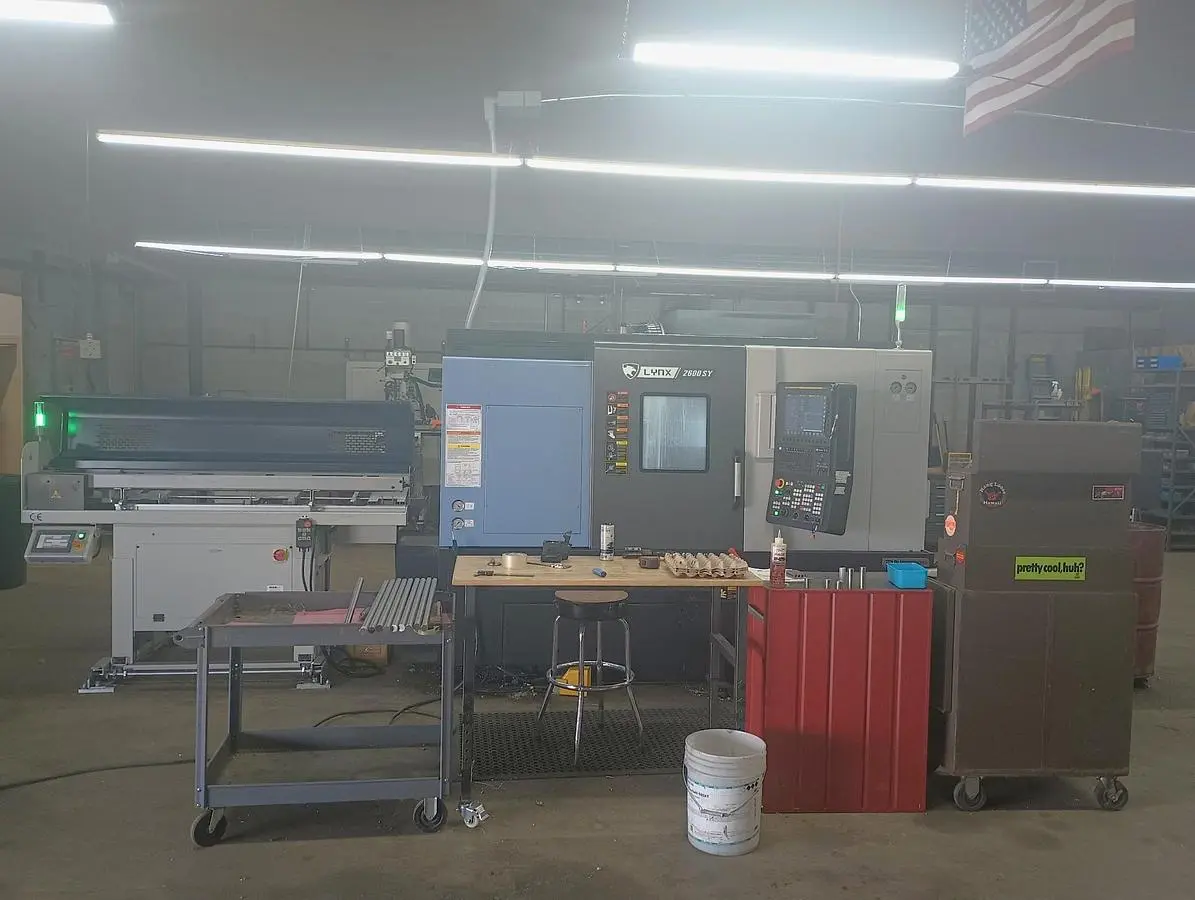

USED 2022 DN SOLUTIONS LYNX 2600SY-II

Subspindle
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

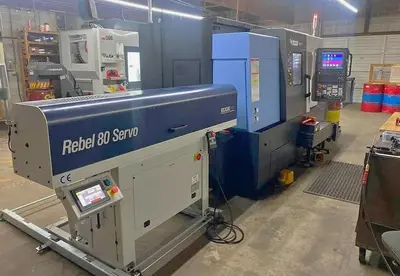

Edge Rebel 100 Short Barfeeder
Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Auto Tool Presetter
10" 3 Jaw Hydraulic Chuck on Main Spindle
6" 3 Jaw Hydraulic Chuck on Subspindle
RS 232 Port Interface
All Available Live Tooling
Static Tooling Including perishable and inserts
All Available Soft and Hard Chuck Jaws
All Available Manuals
Complete Coolant System with Tank & Pump

**ONLY 5,270 Cutting Hours**

The 2022 DN Solutions Lynx 2600SY-II CNC lathe provides efficient performance with its Fanuc 0i-Plus Series Control featuring an intuitive iHMi touchscreen. Designed for complex operations, it includes a 10" main and a 6" subspindle hydraulic chuck, capable of handling a maximum swing over bed of 24.8 inches and a turning diameter of up to 14.96 inches. The Lynx 2600SY-II boasts a generous maximum turning length of 24 inches and a bar capacity of 3.23 inches, making it ideal for a wide range of machining tasks.

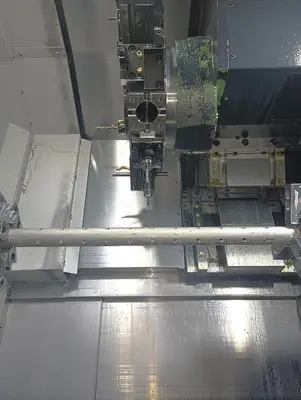

Offering high precision, it supports multi-axis operations with X, Y, and Z travels of 9.85", 4.13", and 26.79" respectively. The main spindle operates at 3,500 RPM powered by a 25 HP motor, while the subspindle reaches speeds of up to 4,500 RPM with a 10 HP motor. Further enhancing its capabilities, the lathe features a 12-position BMT-type turret with a 7.5 HP rotary tool motor, achieving speeds up to 5,000 RPM.

This model includes an Edge Rebel 100 Barfeed, chip conveyor, parts catch, and parts conveyor to streamline operations and improve productivity. Despite its robust capabilities, the machine maintains a reasonable footprint with dimensions of 135" x 82.5" x 75.6" and a weight of 13,225 lbs, making it a valuable asset for precision engineering workshops.
