NEW HSG R2
Overview
Specs
Resonator Wattage: 6000 Watts
Tube processing ranges: Round tube: 0.47” - 9.45” Square tube: □0.47”x0.47” - □9.45”x9.45” Rectangular tube: 0.47” ≤each side≤9.45” 0.79”x0.79”≤Angle Steel≤7.9”x7.9” 2”x1.5”≤ Channel≤7.9”x3” 3.9”x2.7”≤I beam≤7.9”x4” 3.9”x3.9”≤HW beam≤7.9”x7.9”
Range of incoming materials for tube: 3.3' - 21.3'
Positioning Precision X/Y Axis: ±0.002”/3’
Repetitive Positioning X/Y Axis: ±0.0012"
Speed of chuck: 140RPM (When the tube weight increases, the motion parameters would be reduced correspondingly）
Max. linkage speed: 492'/min
Max. linkage acceleration: 1.5G
Maximum single tube weight: Approx. 660 lbs.
Tailing length: 45°proximal ≥ 10.6” 45°distal ≥25.6” Dual Chuck Clamping ≥18” (straight cut model); Front chuck jump ≥3.1” (straight cut model)
Electrical: 380V, 50/60 Hz, 3 Phase, 46kW / 092A (6000W)
Machine Dimensions: Approx. 33.3' x 7.9' x 7.9'H
Equipped With
Equipped with:

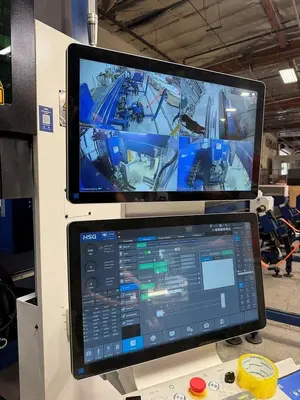

HSG Control

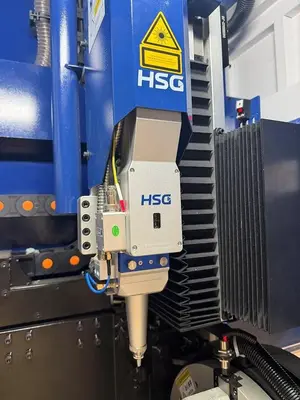

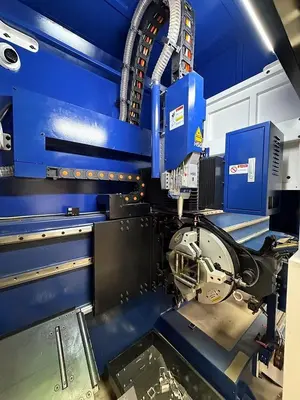

HSG Cutting Head
HSG-X10000 Operating System
6kW Raykus Power Source

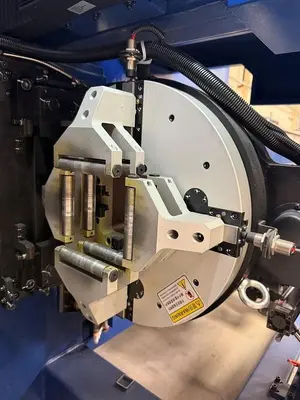

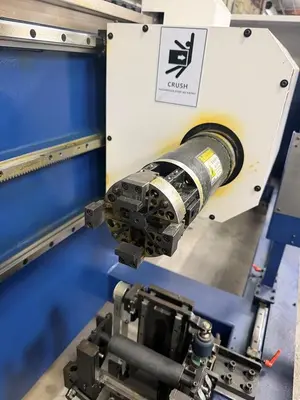

2 Chucks
Water Chiller
Safety Protection Package
Voltage Stabilizer
Transformer
Dust Collector

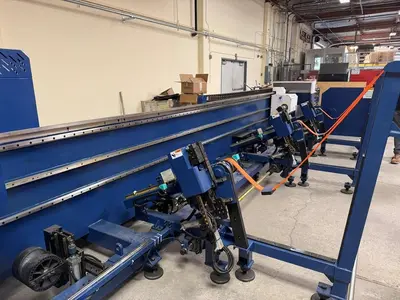

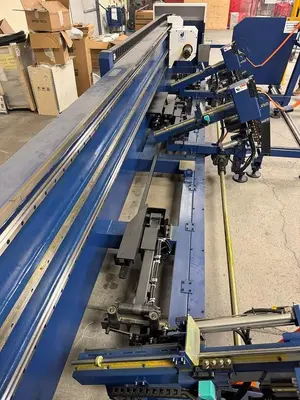

Automatic Unloader
Optional Upgrades:
Multi-Tube Automatic Loading System
Bevel Cutter
Please call for pricing on the Upgrades

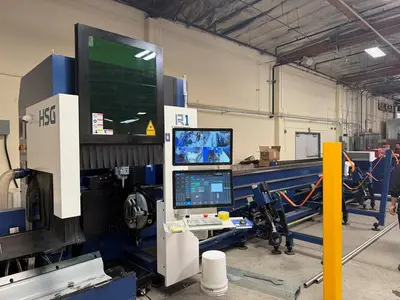

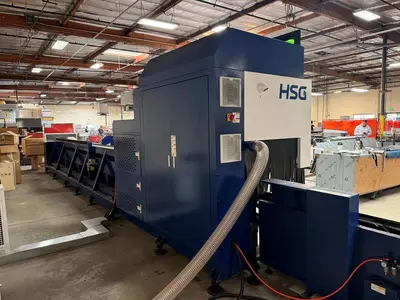

The 6000 Watt HSG R2 CNC Fiber Tube Laser Cutting System is a robust and precise equipment ideal for various industrial applications. It is equipped with a high-performance 6000-watt resonator, allowing efficient cutting of a range of tube types and sizes. It accommodates round tubes ranging from 0.47” to 9.45” in diameter, square tubes up to □9.45”x9.45”, and other profiles including rectangular, angle steel, channel, I beam, and HW beam with specific dimensional limits.
The system ensures high precision with a positioning accuracy of ±0.002” over 3 feet and a repetitive positioning accuracy of ±0.0012". The chuck operates at a speed of 140 RPM, though performance is adjusted based on the weight of the material being processed. The system supports a maximum incoming material length of 21.3 feet and can handle single tube weights of up to approximately 660 lbs.
Powered by a 380V, 50/60 Hz, 3-phase electrical supply, the HSG R2 operates with a maximum power consumption of 46kW. The machine's dimensions are approximately 33.3 feet in length, 7.9 feet in width, and 7.9 feet in height, making it suitable for large-scale industrial environments. It is a dependable choice for businesses requiring efficiency and accuracy in tube laser cutting.
