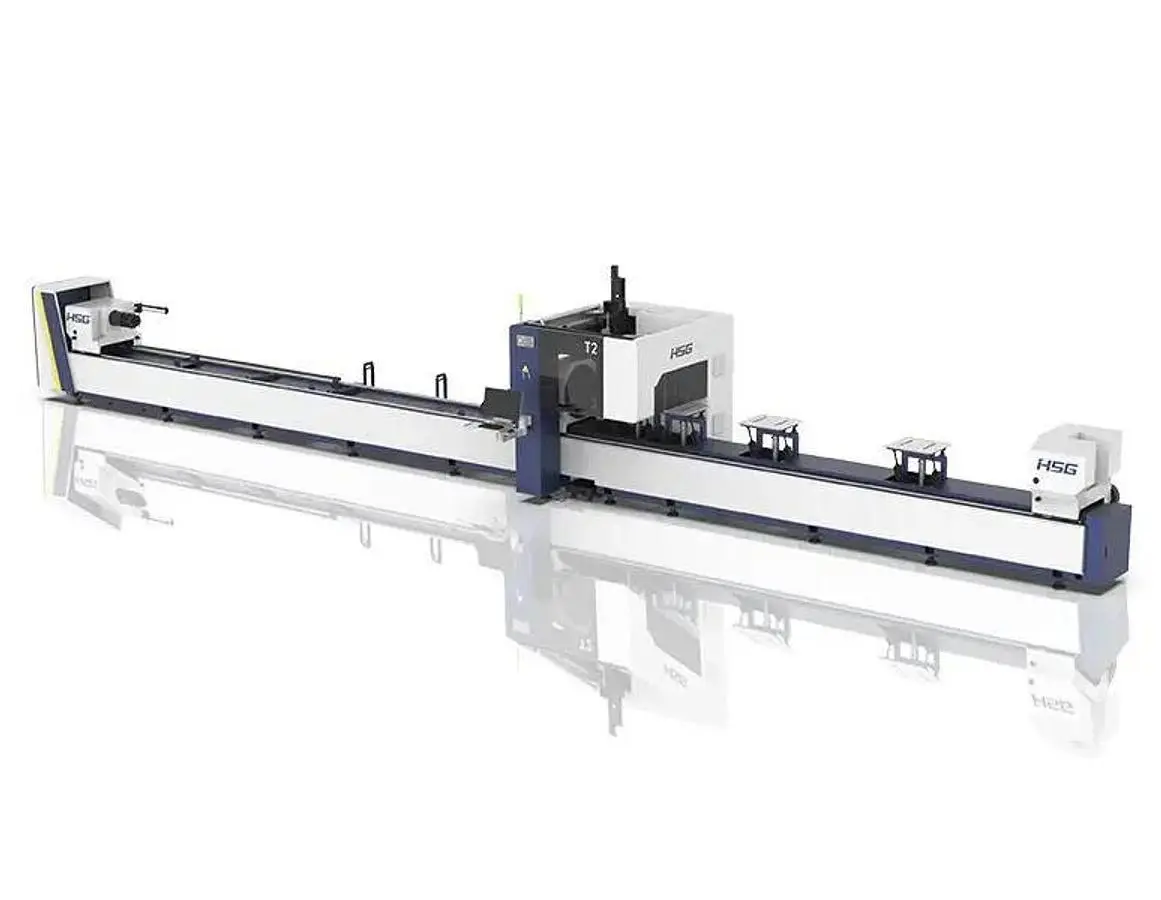

NEW HSG T2

Resonator Wattage: 6000 Watts
Tube processing ranges (round): Round tube: .78” - 9.45”
Tube processing ranges (square): Rectangular tube: .78”≤each side≤9.45”
Tube processing ranges (rectangle): 0.78”≤each side≤9.45” 0.78”x0.78”≤Angle Steel ≤7.9”x7.9” 2”x1.5”≤Channel≤7.9”x3” 2”x1.5”≤I beam≤7.9”x3.9” 3.9”x3.9”≤HW Steel≤7.9”x7.9”
Bevel cutting range: 2”, thickness above .12”
Range of incoming materials for tube: 39”- 23’
Max. auto-unloading length (straight cut): 19.6’（≥55”，straight cut for the last auto-unload part）
Max. auto-unloading length (bevel cut): 19.6’（≥67”，bevel cut for the last auto-unload part）
Positioning precision of X/Y axis: ±0.0012”/3 ft
Repetitive positioning precision of X/Y axis: ±0.0012”
Speed of chuck: 100 RPM
Max. linkage speed: 328 FPM
Max. linkage acceleration: 1G
Maximum single tube weight: 660 lbs.
Tailing length: ≥0” （Only when the nesting material is reasonable can it be achieved）
Bevel angle: ±45°
Bevel cutting surface: V
Electrical: 380V, 3 Phase, 50/60Hz, 66Kw/132A (6000W)
Machine Dimensions: Approx. 56’x10’x9.5’H / Approx. 56’x16.4’x9.8’H（loading machine）
