USED 2025 AKYAPAK 3 ADM 1200
Overview

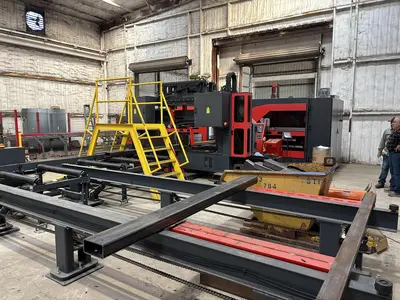

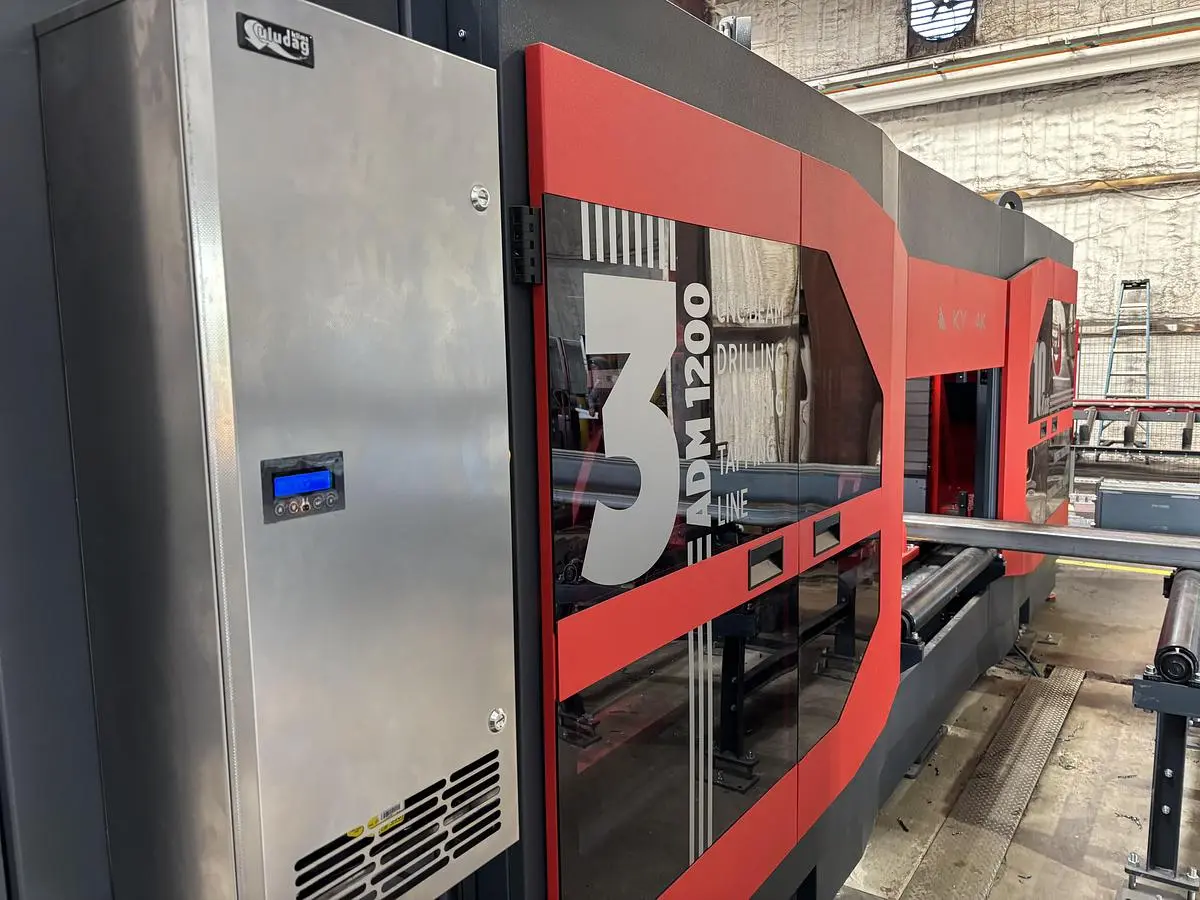

▪ 3 ADM 1200 CNC DRILL LINE

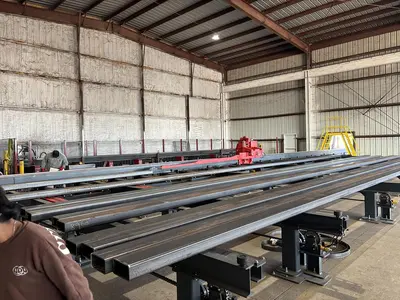

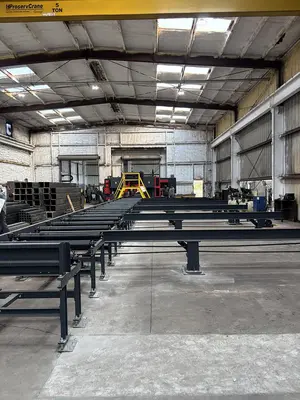

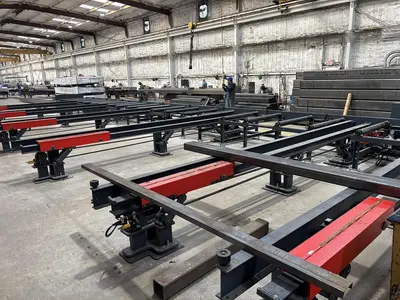

▪ Infeed conveyors ( 60 ft.)
▪ Outfeed conveyor ( 60 ft.)

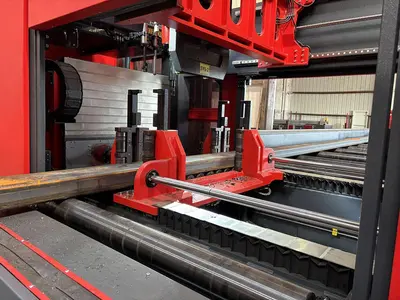

▪ Feeding arm
▪ Safety fences
▪ Wireless remote control
▪ Auto-lubrication system
3 ADM 1200 + AST 1200-500 ▪ ATC – Automatic Tool Changer (one unit for each spindle, each unit has 4 tool stations)
▪ BT40 Tool Holder
▪ MQL (Minimum Quantity Lubrication)

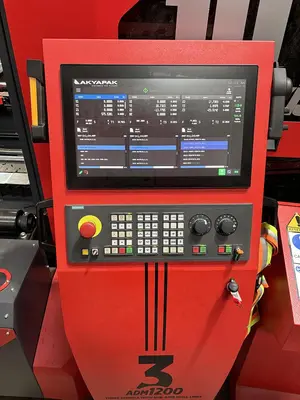

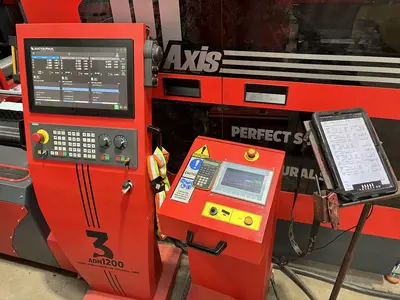

▪ Mobile control panel
▪ Lantek Flex 3D Steel Work
▪ DSTV file import
▪ Online connection hub
▪ 15” Touch Screen Mitsubishi

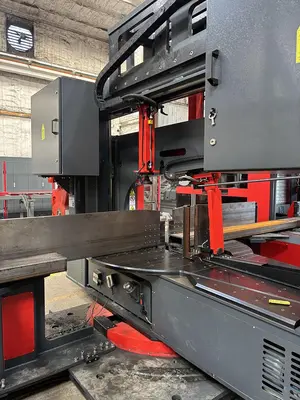

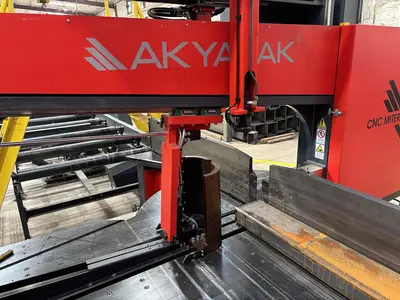

▪ ▪ AST 1300-600 CNC MITER BANDSAW
▪ Automatic blade tensioning system
▪ Chip brush for blade
▪ Integrated chip conveyor
▪ MQL
▪ Clamping vice
Specs
Drill Heats: 3
Drill Dia: (Carbide and U-drill) 3/8 – 1-1/2 (Only with U-drill) 1-1/2 – 2
Thread Tapping: M10 – M24
Drill Thickness: 0.2 – 3.94*
Tool Holder: BT40 or ISO40**
Spindle Speed: 50 – 3000 stepless RPM
Spindle power: 30 (S1) and 35 (S6) HP
Vertical spindle strokes X, Y, Z: 57 – 20 – 36
Horizontal spindles’ strokes X, Y, Z: 20 – 21 – 28
Room Size: 49 w X 27 h
Min Beam size: 8 x 3.15
Max Beam Size: 48 x 20
Standard line for length – Min: 6.5 ft
Standard line for length – Max.: 41 ft
Weight per linear Feet: 670
SAW: AST 1300-600
Cutting capacity: 3.15" – 51,5" 0" – 24" Blade does not move up
Cutting angle: 60°/60°
Upper pressure cylinders*: Yes
Cutting feed: Electronically controlled free fall
Blade: 67 x 1,6 mm (2.64" x 16 ga.)
Total Power: 24 HP
Blade speed: 65.6 – 377.3 ft/min
