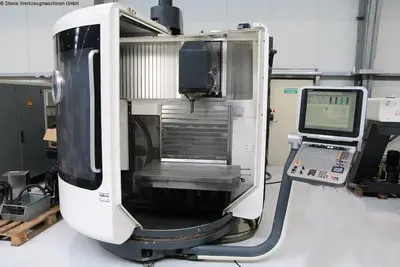

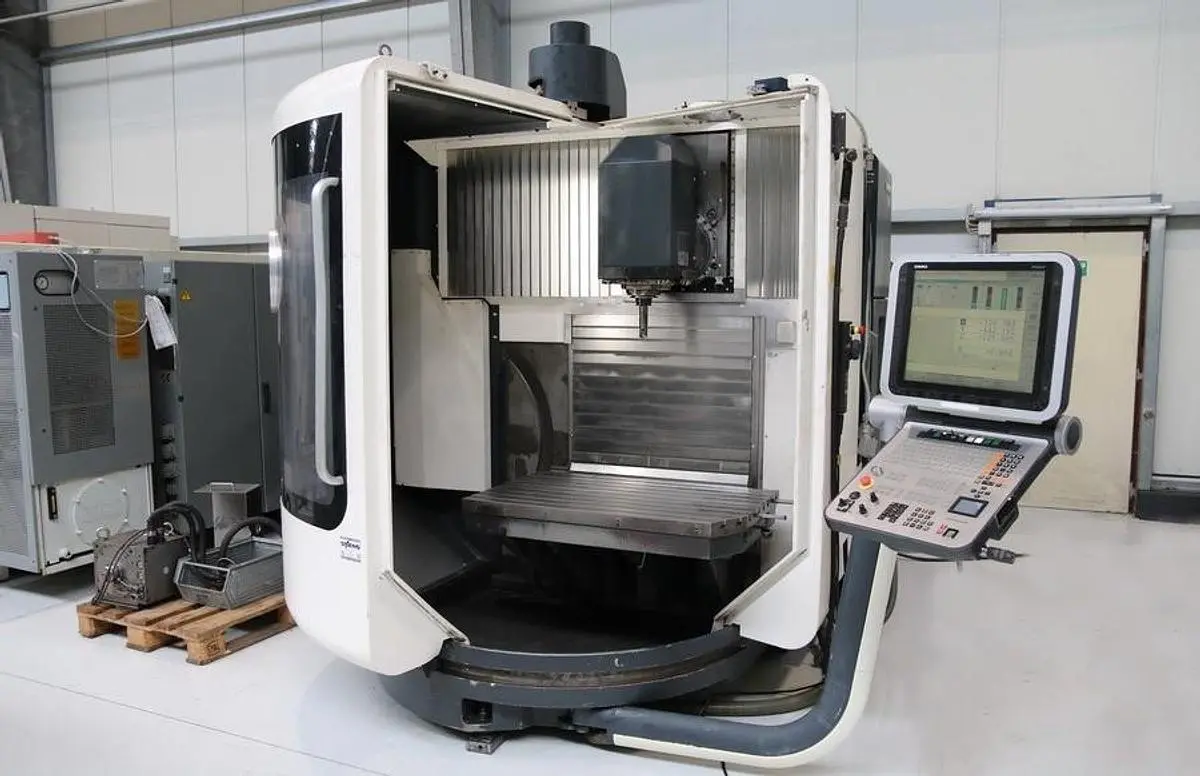

USED 2008 DMG DMU 60 MONOBLOCK
Overview

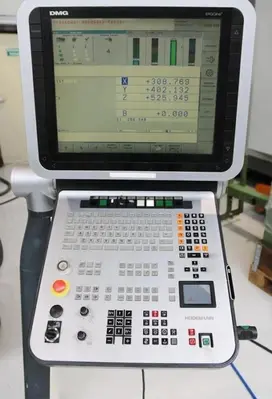

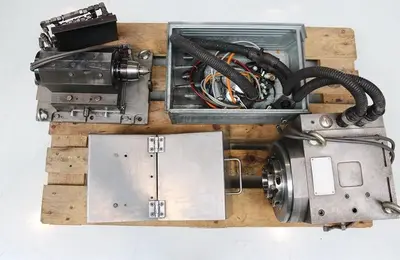

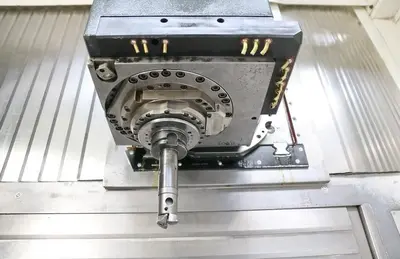

Heidenhain 530 iTNC CNC Control4 axes (+ NC dividing head)Swivel-Milling HeadSpindle refurbishedNEW X, Y, Z guidewaysNEW ball screwsNEW X-axis bellowsChip conveyor60 Position Automatic Tool Changer - HSK-A63Coolant Systemhigh pressure coolantturning milling headelectronic hand wheelRotary screenpaper band filterSpray gunexhaust fanindexing attachment - EA-733.20TailstockNC-Swivel Milling Head:turning speed range - main spindle max. 18.000 rpmpower capacity - main spindel 10 / 15 kWmax. Torque 130 / 87 Nmtool taper HSK-A63swivellable NC: +30 / -120 °Work Table:table surface area 1,000 x 600 mmT-slots 9x 14 x H7max. table load 700 kg
Specs
Manufacturer: DMG
Model: DMU 60 monoBLOCK
Year: 2008
Condition: Used
Stock Number: 5654393
Spindle speeds: 18,000 rpm
X axis travel: 630 mm
Y axis travel: 560 mm
Z axis travel: 560 mm
Spindle power: 10 / 15 kW
Spindle torque: 130 / 87 Nm
Tool taper: HSK-A63
Swivellable: NC: +30/120°
Table surface area: 1,000 x 600 mm
Table capacity: 700 kg
Total power requirement: 49.7 kVA
Machine weight: 11 Ton
Machine dimensions: 4.5 x 4.5 x 3.5 m
