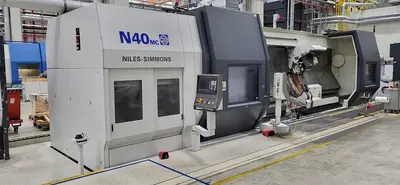

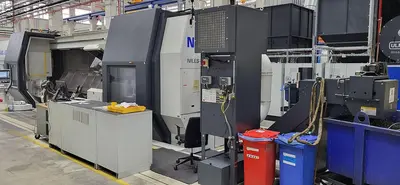

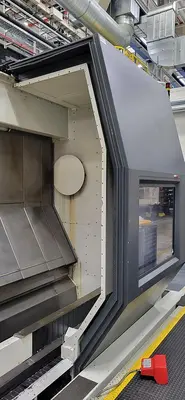

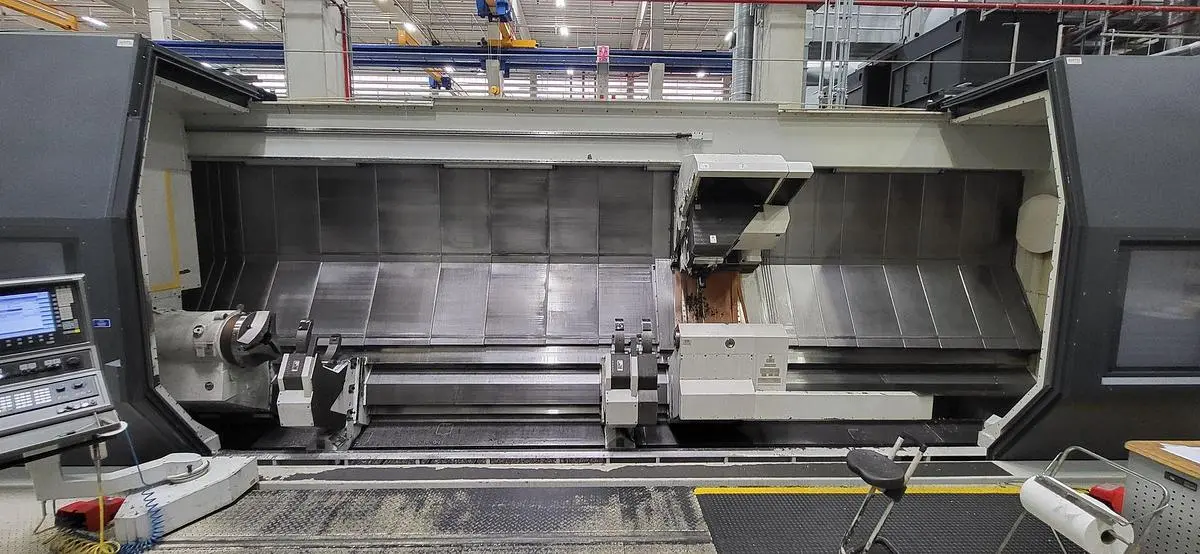

USED 2019 NILES SIMMONS N 40 MC X 6000

Workpiece spindle:
Spindle head according to DIN 55026 A15
Bathing through 160 mm
Front diameter Bearing 240mm
2-stage gearbox, infinitely variable programmable
Drive power at 100/60% duty cycle: 78/87kW
Speed ranges: 2
Speed range I: 10-501 rpm
Speed range II: 10-1750 rpm
Torque I, 60% duty cycle: 8000 Nm
Torque II, 60% duty cycle: 2308 Nm

C-axis
Holding torque with backlash-free spindle brake: 3000 Nm
Speed: 0-50 rpm
Maximum torque (100/60% duty cycle): 3700/4430 Nm

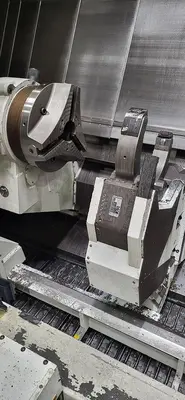

Steady rest clamping range: 70-425 mm

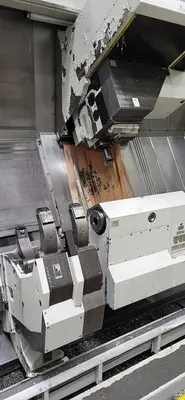

Turning, drilling, milling head
Front diameter: Bearing 110mm
Interface HSK100/C8

Tailstock
Quill diameter 180mm
Stroke 170mm
Internal taper MK6
Axially force, manually adjustable 5-30 kN
Quick tip height adjustment +/-0.15mm
