USED DAVIS STANDARD 600S THERM

Used Equipment Facts About This Machine
Manufacturer
Davis-Standard is a world-leading manufacturer of extrusion equipment for the plastics, packaging, polymer, pipe, profile, sheet, and recycling industries. Davis-Standard extruders are known for their robust construction, long operating life, and dependable performance in continuous, high-output manufacturing environments.

Description

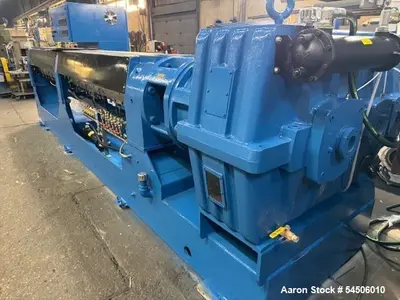

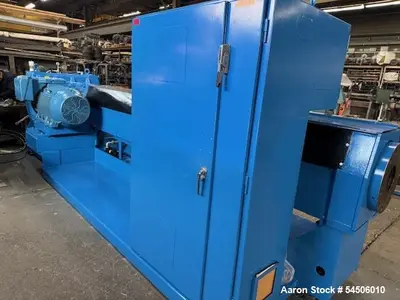

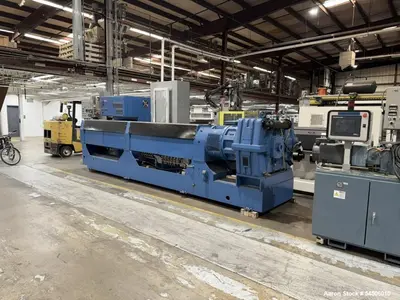

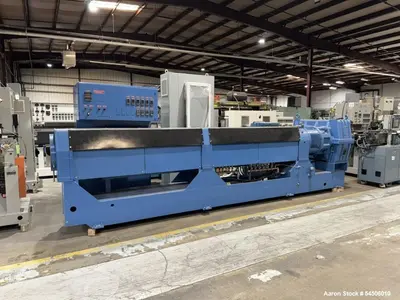

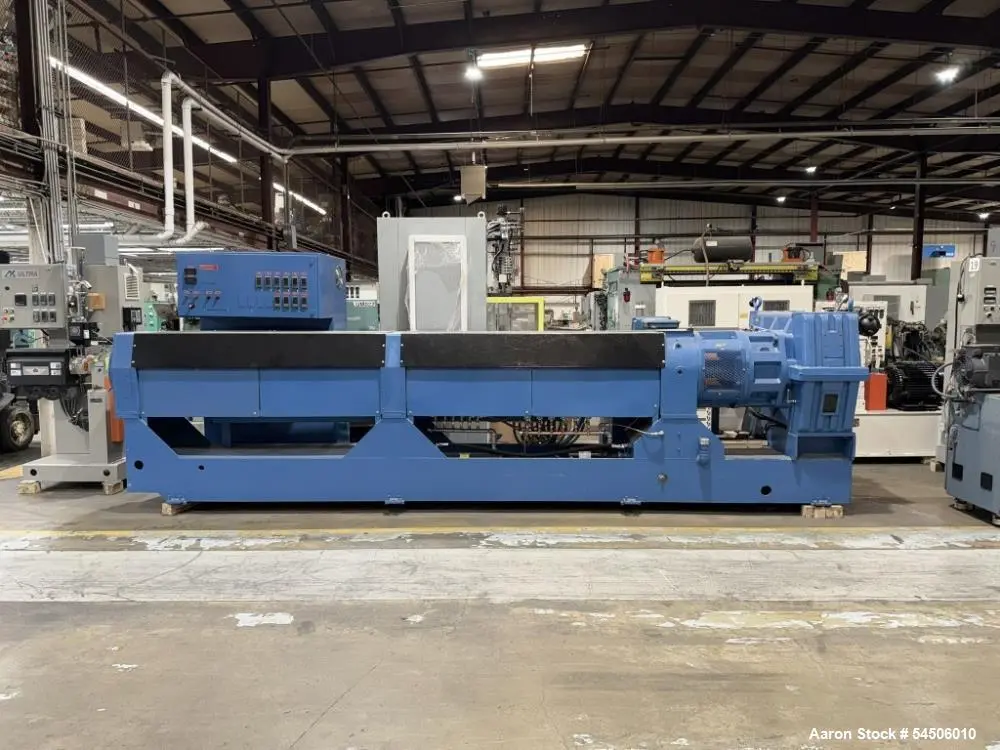

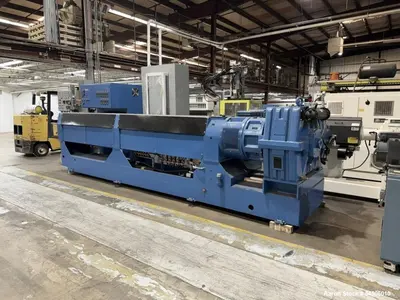

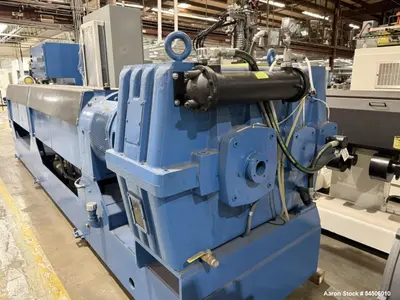

The Used & Reconditioned Davis-Standard 6" Single Screw Extruder, Model 600S Thermatic, is a professionally rebuilt extrusion system engineered for demanding thermoplastic processing applications. Originally manufactured in 1998 and reconditioned in 2025, this machine has received significant mechanical and electrical upgrades, providing reliable production performance with modern controls and drive technology.

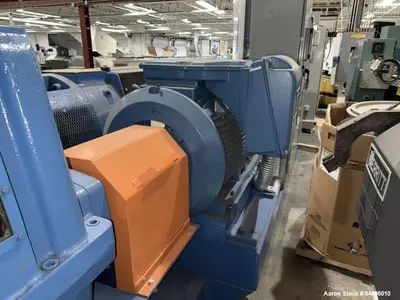

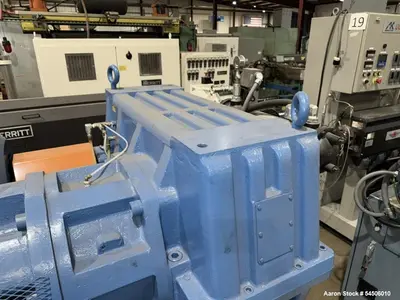

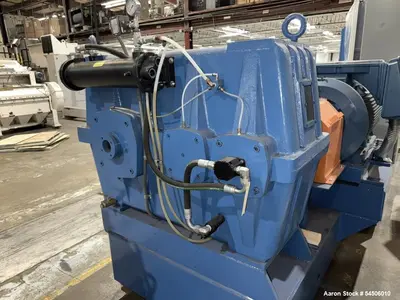

The extruder features a 6-inch PE/PP processing screw with a 30:1 L/D ratio, offering excellent melt quality, mixing efficiency, and throughput for polyethylene, polypropylene, and similar thermoplastic materials. Power is transmitted through a 17.21:1 heavy-duty gearbox, which has been professionally rebuilt with all internal bearings replaced except the thrust bearing.

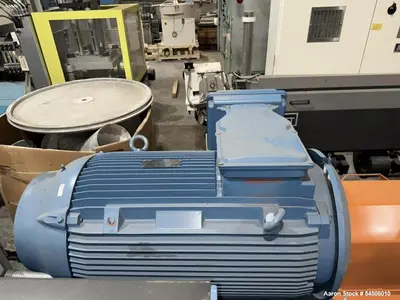

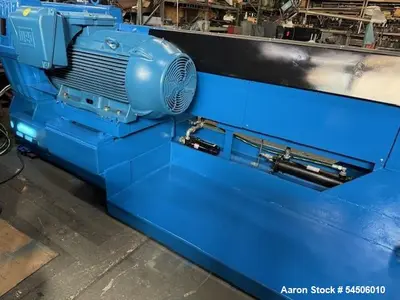

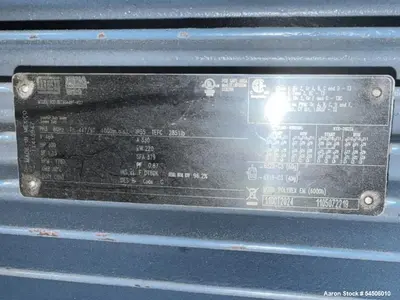

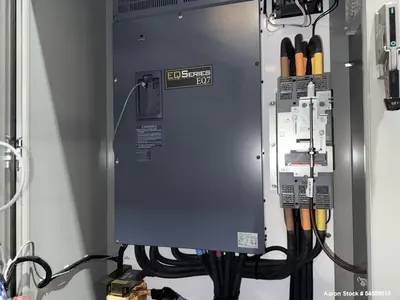

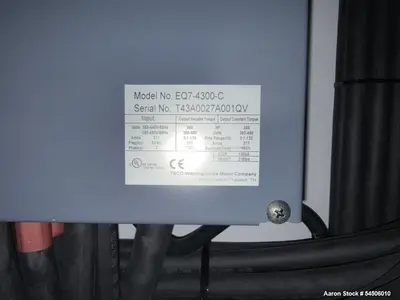

The drive system has been upgraded with a new 300 HP Westinghouse AC motor and a new WEG AC inverter drive, delivering precise speed control, improved energy efficiency, and dependable operation.

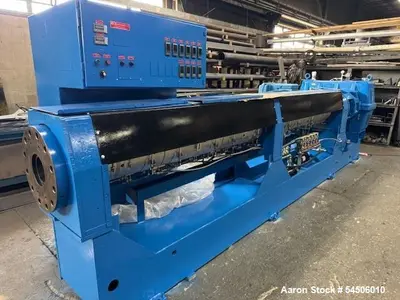

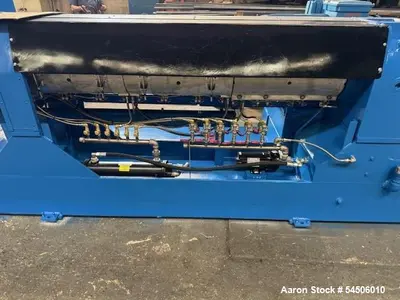

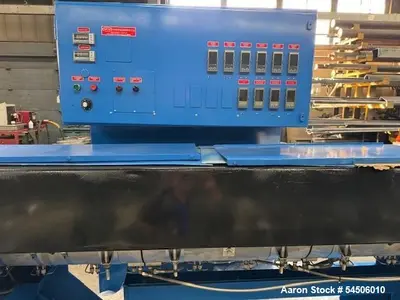

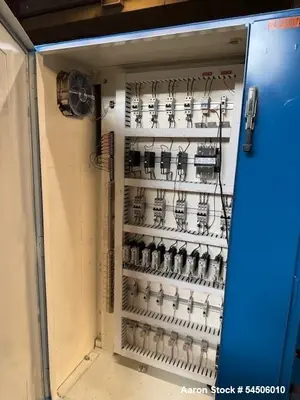

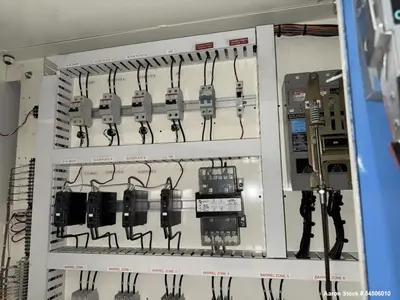

Temperature control is managed through a refurbished 10-zone electrical control panel featuring six barrel heating zones and four downstream heating zones, all equipped with new Eurotherm 3216 digital temperature controllers for accurate thermal management.
With an approximate footprint of 242 inches long by 74 inches wide by 102 inches high and an estimated weight of 23,000 pounds, this reconditioned Davis-Standard extruder is well suited for pipe, profile, sheet, pelletizing, recycling, and general polymer extrusion operations.

Specifications

Specification
Details

Manufacturer
Davis-Standard

Model
600S Thermatic

Equipment Type
Single Screw Extruder

Screw Diameter
6 in.

Screw Design
PE/PP Processing Screw

L/D Ratio
30:1

Gearbox Ratio
17.21:1

Gearbox
Rebuilt (All Internal Bearings Replaced Except Thrust Bearing)

Main Motor
New 300 HP Westinghouse AC Motor

Drive
New WEG AC Inverter Drive

Barrel Heating Zones
Six (6)

Downstream Heating Zones
Four (4)

Total Temperature Zones
Ten (10)

Temperature Controllers
New Eurotherm 3216 Digital Controllers

Electrical
460 Volt, 3 Phase, 60 Hz

Approximate Dimensions
242 in. L × 74 in. W × 102 in. H

Approximate Weight
23,000 lbs.

Serial Number
F-9731

Shop Order
S.O. 901180

Original Year Built
1998

Reconditioned
2025

Condition
Used – Reconditioned

Applications
This extrusion system is commonly used for:

Polyethylene (PE) extrusion
Polypropylene (PP) extrusion
Pipe extrusion
Profile extrusion
Sheet extrusion
Pelletizing operations
Plastic recycling
Polymer compounding
Industrial plastic manufacturing
Custom extrusion
Plastic product manufacturing
Thermoplastic processing

Common Materials Processed

Polyethylene (PE)
High-Density Polyethylene (HDPE)
Low-Density Polyethylene (LDPE)
Polypropylene (PP)
Linear Low-Density Polyethylene (LLDPE)
Reprocessed plastics
Polymer compounds
Thermoplastic blends
Filled polymers
Custom resin formulations
Engineering thermoplastics
Plastic regrind

Features & Benefits

Professionally reconditioned in 2025
6-inch PE/PP processing screw
30:1 L/D ratio for improved melt quality
Heavy-duty rebuilt gearbox
New 300 HP Westinghouse AC motor
New WEG AC inverter drive
Refurbished 10-zone control panel
New Eurotherm 3216 temperature controllers
Six barrel heating zones
Four downstream heating zones
Ready for high-capacity continuous extrusion
Excellent alternative to purchasing new equipment

Frequently Asked Questions
What materials is this extruder designed to process?
The machine is equipped with a PE/PP screw, making it well suited for processing polyethylene, polypropylene, recycled plastics, and similar thermoplastic materials.
What upgrades were completed during reconditioning?
The extruder was reconditioned in 2025 and includes a new 300 HP Westinghouse AC motor, new WEG AC inverter drive, new Eurotherm 3216 temperature controllers, a refurbished 10-zone control panel, and a rebuilt gearbox with all internal bearings replaced except the thrust bearing.
What is the screw configuration?
The extruder features a 6-inch single screw with a 30:1 L/D ratio, designed to provide efficient melting, mixing, and throughput.
How many heating zones are included?
The machine includes 10 heating zones consisting of six barrel heating zones and four downstream heating zones, each controlled by a Eurotherm 3216 controller.
What electrical service is required?
The extruder operates on 460 Volt, 3 Phase, 60 Hz electrical power.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment provides complete domestic and international shipping coordination, export documentation, freight management, heavy-haul transportation, and logistics support for extrusion systems and complete plastics processing lines.
