USED PTI 6000

Manufacturer
PTI (Processing Technologies International) is a leading manufacturer of high-performance extrusion systems for the plastics industry. PTI extrusion equipment is widely used in sheet extrusion, thermoforming, polymer processing, recycling, and specialty plastics manufacturing, offering dependable performance, precise process control, and high production output.

Description

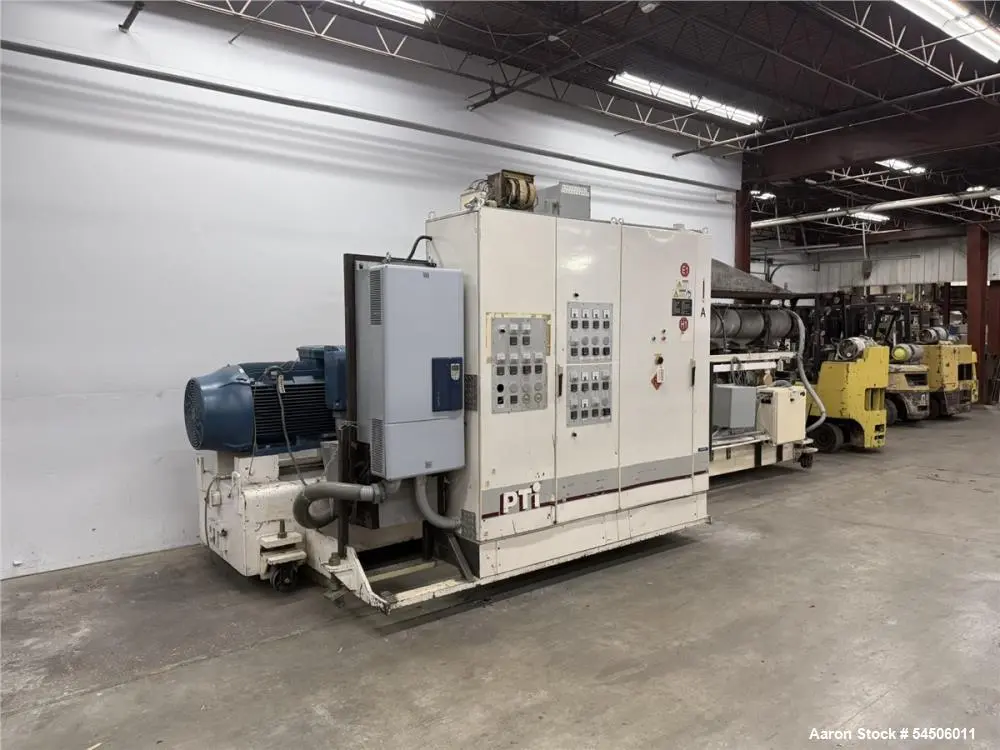

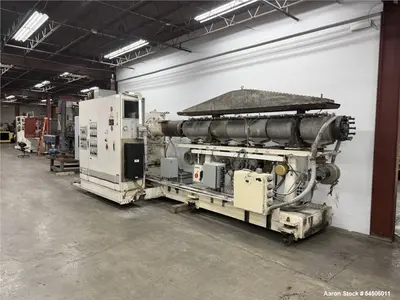

The Used PTI 6" Single Screw Extruder, Model 6000, is a heavy-duty industrial extrusion system designed for continuous thermoplastic processing applications. Built in 2003, this machine features a 6-inch single screw with a 30:1 L/D ratio, providing excellent melting efficiency, throughput, and melt homogeneity for a broad range of polymer materials.

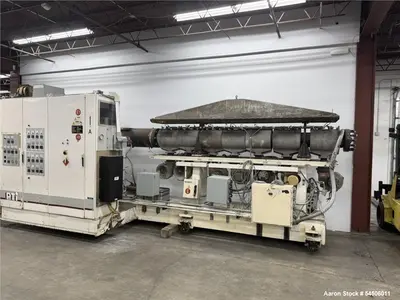

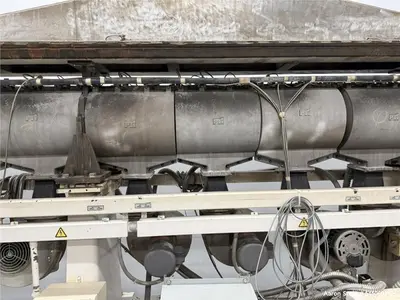

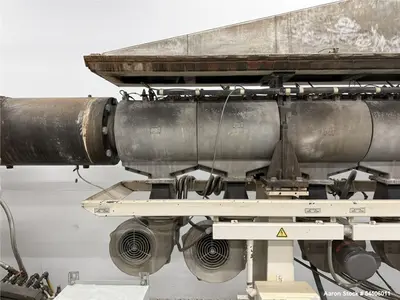

The extruder utilizes an air-cooled barrel equipped with seven barrel heating zones to maintain consistent processing temperatures. An additional sixteen downstream heating zones provide precise thermal control throughout downstream processing equipment, making this unit well suited for demanding extrusion applications.

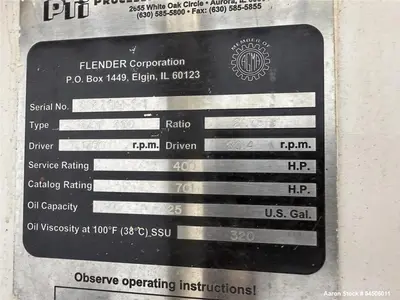

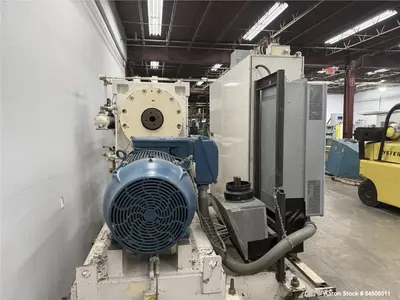

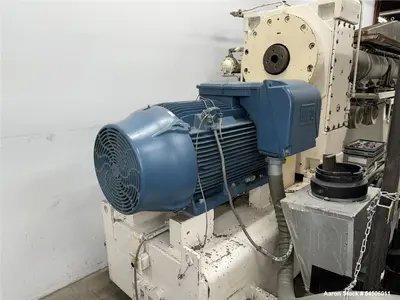

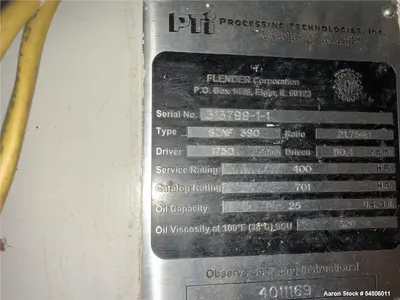

Power is supplied by a 400 HP WEG AC motor coupled with a WEG CFW-11 variable frequency inverter drive, delivering accurate speed regulation and energy-efficient operation. Torque is transmitted through a Flender Model SZNF 390 gearbox featuring a 21.7:1 reduction ratio and rated for up to 701 HP, providing exceptional durability and reserve capacity.

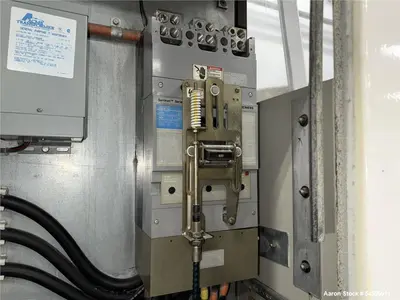

Additional features include a 9-inch × 7-inch feed throat, 62-inch centerline height, 900-amp disconnect, and V-groove casters for simplified positioning during installation or production line modifications. With an approximate footprint of 24 feet long × 100 inches wide × 106 inches high, this PTI extruder is an excellent solution for high-capacity plastics manufacturing operations.

Specifications

Specification
Details

Manufacturer
PTI (Processing Technologies International)

Model
6000

Equipment Type
Single Screw Extruder

Screw Diameter
6 in.

L/D Ratio
30:1

Barrel Cooling
Air Cooled

Barrel Heating Zones
Seven (7)

Downstream Heating Zones
Sixteen (16)

Total Heating Zones
Twenty-Three (23)

Main Motor
400 HP WEG AC Motor

Variable Frequency Drive
WEG CFW-11 Inverter Drive

Gearbox
Flender Model SZNF 390

Gearbox Ratio
21.7:1

Gearbox Rating
Up to 701 HP

Feed Throat
Approximately 9 in. L × 7 in. W

Centerline Height
62 in.

Disconnect
900 Amp

Electrical
460 Volt, 3 Phase, 60 Hz

Full Load Amps
Approximately 780 FLA

Mounting
V-Groove Casters

Serial Number
3768

Approximate Dimensions
24 ft. L × 100 in. W × 106 in. H

Approximate Weight
26,000 lbs.

Year Manufactured
2003

Condition
Used

Applications
This PTI extruder is ideal for:

Plastic sheet extrusion
Thermoforming sheet production
Polymer processing
Plastic recycling
Compounding operations
Industrial extrusion
Packaging material production
Custom plastic manufacturing
Engineering resin processing
Thermoplastic sheet production
Industrial polymer extrusion
Continuous plastics manufacturing

Common Materials Processed

Polypropylene (PP)
Polyethylene (PE)
High-Density Polyethylene (HDPE)
Low-Density Polyethylene (LDPE)
Polystyrene (PS)
PET
ABS
Engineering thermoplastics
Recycled plastic materials
Polymer blends
Filled compounds
Specialty plastic formulations

Features & Benefits

Heavy-duty 6-inch single screw extruder
30:1 L/D ratio for efficient melting and mixing
Air-cooled barrel design
Seven barrel heating zones
Sixteen downstream heating zones
Powerful 400 HP WEG AC motor
WEG CFW-11 variable frequency inverter drive
Heavy-duty Flender SZNF 390 gearbox rated up to 701 HP
Large feed throat for consistent material feeding
62-inch centerline height
Mounted on V-groove casters for easier positioning
Suitable for high-output industrial extrusion applications

Frequently Asked Questions
What types of materials can this extruder process?
The PTI 6000 is suitable for processing a variety of thermoplastics including polyethylene, polypropylene, PET, ABS, polystyrene, engineering resins, recycled plastics, and custom polymer formulations.
What is the advantage of the 30:1 L/D ratio?
A 30:1 L/D ratio provides increased residence time for improved melting, mixing, homogenization, and consistent polymer processing.
What drive system is installed?
The machine is powered by a 400 HP WEG AC motor with a WEG CFW-11 variable frequency inverter drive, providing precise speed control and reliable operation.
What gearbox is included?
The extruder features a Flender Model SZNF 390 gearbox with a 21.7:1 reduction ratio, rated for up to 701 HP, offering exceptional torque capacity and durability.
How many heating zones are included?
The machine includes 23 total heating zones, consisting of 7 barrel heating zones and 16 downstream heating zones for comprehensive process temperature control.
