USED DAVIS STANDARD 60IN60TPIH

Used Equipment Facts About This Machine
Manufacturer
Davis-Standard is a globally recognized manufacturer of extrusion systems serving the plastics, polymer, packaging, pipe, profile, sheet, wire and cable, and recycling industries. Davis-Standard extruders are known for their rugged construction, advanced process control, and long service life in demanding continuous production environments.

Description

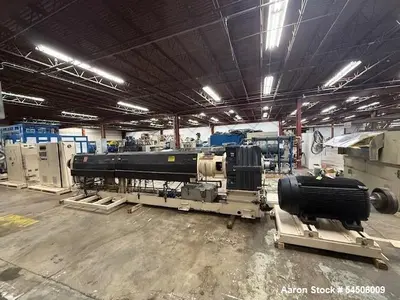

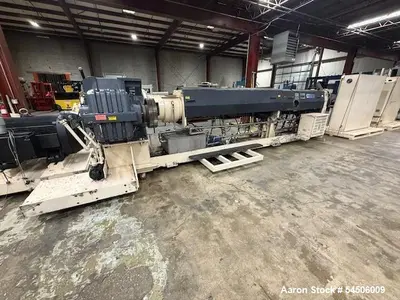

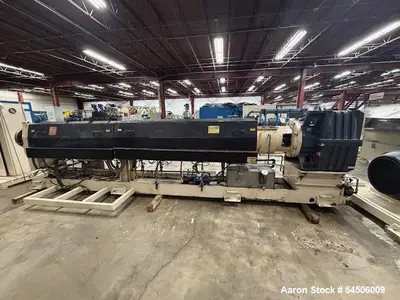

The Used Davis-Standard 6" Single Screw Extruder, Model 60IN60TPIH, is a high-performance industrial extrusion system designed for high-output thermoplastic processing applications. Built in 1994, this machine features an extended 34:1 L/D ratio and a vented, water-cooled barrel, making it well suited for processing moisture-sensitive materials, recycled plastics, and applications requiring devolatilization.

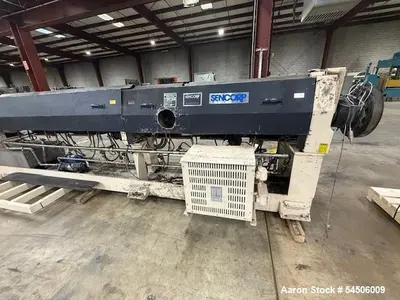

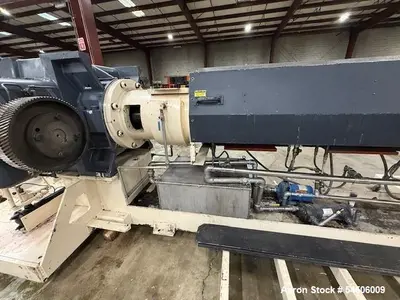

The barrel incorporates six water-cooling zones, with the vent located approximately 130 inches from the center of the feed throat. The vent is currently plugged but can be utilized for vacuum venting or devolatilization applications if required. The cooling package includes a 1/2 HP recirculation pump, heat exchanger, and integrated water reservoir measuring approximately 32" × 24" × 12".

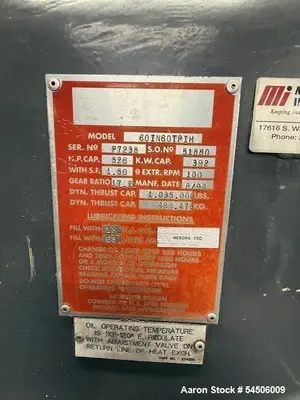

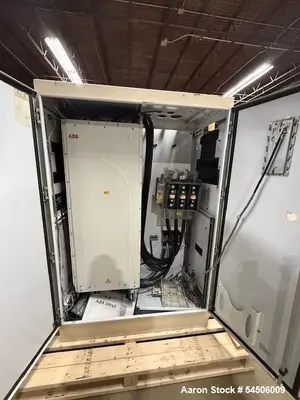

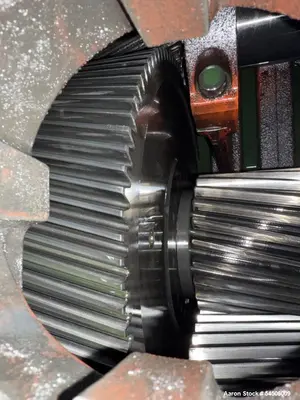

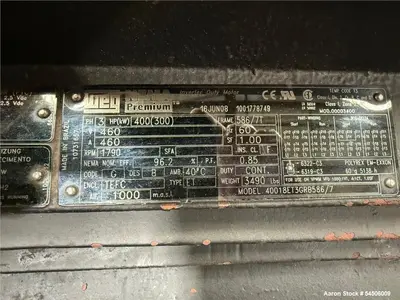

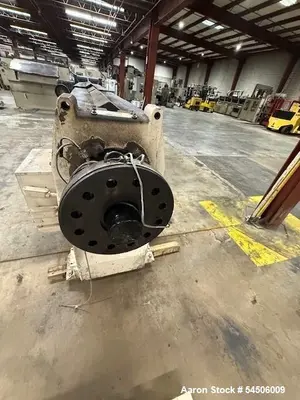

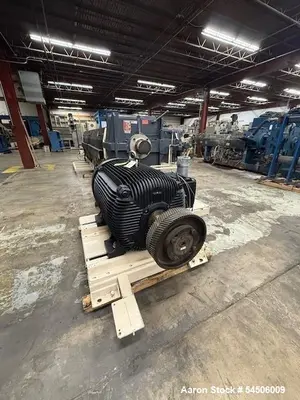

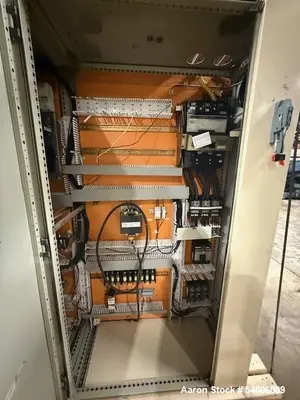

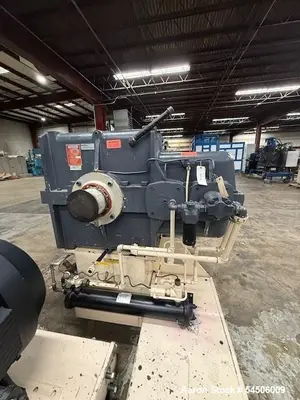

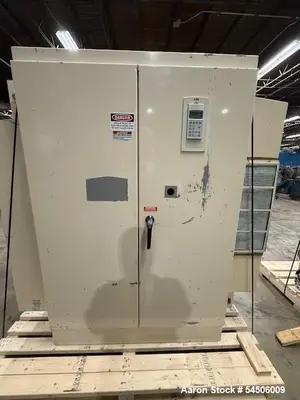

Power is supplied through a 400 HP WEG AC motor operating at 1,790 RPM, coupled to an ABB AC variable frequency drive for precise speed control. The extruder utilizes a Davis-Standard Model 60IN60TPIH gearbox with a 17.2:1 reduction ratio, rated for 526 HP with a 1.5 service factor, providing dependable torque for demanding extrusion applications.

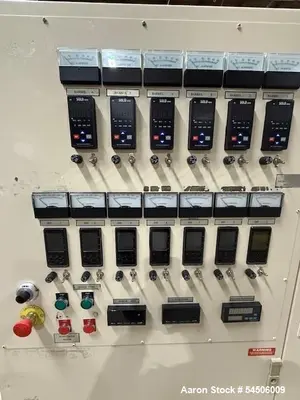

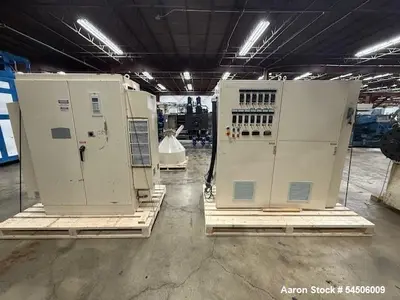

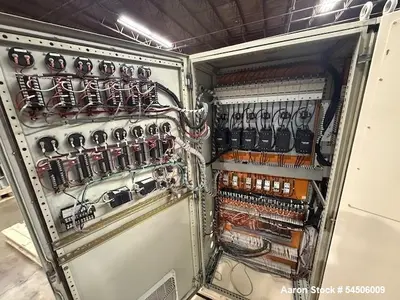

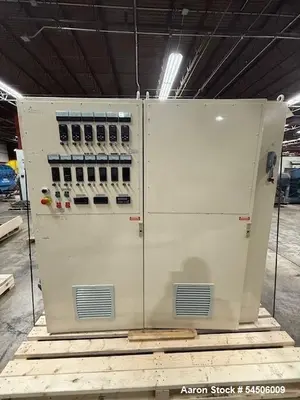

Temperature control is managed through six Solo 4896 barrel zone controllers and seven Omron E5EC die zone controllers. The operator station includes a speed pod displaying screw RPM, motor load percentage, and pressure transducer readings for comprehensive process monitoring.

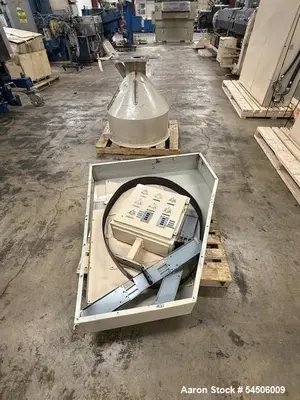

Complete with a hopper, 42-inch centerline height, and an approximate footprint of 25 feet long by 8 feet wide, this Davis-Standard extruder is an excellent choice for manufacturers seeking a proven, high-capacity extrusion platform.

Specifications

Specification
Details

Manufacturer
Davis-Standard

Model
60IN60TPIH

Equipment Type
Single Screw Extruder

Screw Diameter
6 in.

L/D Ratio
34:1

Barrel Type
Water-Cooled, Vented

Cooling Zones
Six (6)

Vent Location
Approximately 130 in. from Feed Throat (Currently Plugged)

Cooling System
1/2 HP Recirculation Pump, Heat Exchanger & Water Reservoir

Water Reservoir
Approximately 32 in. × 24 in. × 12 in.

Main Motor
400 HP WEG AC Motor

Motor Speed
1,790 RPM

AC Drive
ABB Variable Frequency Drive

Gearbox
Davis-Standard 60IN60TPIH

Gearbox Ratio
17.2:1

Gearbox Rating
526 HP

Service Factor
1.5

Barrel Temperature Controllers
Six (6) Solo 4896

Die Temperature Controllers
Seven (7) Omron E5EC

Operator Controls
Speed Pod with Screw RPM, Motor Load & Pressure Gauges

Hopper
Included

Centerline Height
42 in.

Approximate Footprint
25 ft. L × 8 ft. W

Serial Number
PT238

Year Manufactured
1994

Condition
Used

Applications
This extrusion system is commonly used for:

Plastic pipe extrusion
Sheet extrusion
Profile extrusion
Plastic recycling
Polymer compounding
Pelletizing
Wire and cable insulation
Film extrusion
Thermoplastic processing
Engineering resin production
Custom extrusion
Industrial plastics manufacturing

Common Materials Processed

Polyethylene (PE)
High-Density Polyethylene (HDPE)
Low-Density Polyethylene (LDPE)
Polypropylene (PP)
PVC
ABS
Polystyrene (PS)
Engineering thermoplastics
Recycled plastics
Filled polymer compounds
Specialty resins
Custom polymer blends

Features & Benefits

Heavy-duty 6-inch single screw extruder
Extended 34:1 L/D ratio for improved melt quality
Water-cooled vented barrel
Six independent cooling zones
Vented barrel for devolatilization or moisture removal
400 HP WEG AC motor
ABB variable frequency drive
Heavy-duty Davis-Standard gearbox rated for 526 HP
Solo and Omron digital temperature controllers
Integrated operator speed pod
Includes hopper
42-inch centerline height for production line integration

Frequently Asked Questions
What is the advantage of the 34:1 L/D ratio?
The extended 34:1 L/D ratio provides increased residence time for improved melting, mixing, homogenization, and processing consistency compared to shorter extruders.
Is the barrel vented?
Yes. The extruder features a vented barrel located approximately 130 inches from the center of the feed throat. The vent is currently plugged but can be configured for devolatilization or vacuum venting applications.
What drive system is installed?
The machine is powered by a 400 HP WEG AC motor with an ABB AC variable frequency drive, providing accurate speed control and energy-efficient operation.
How is barrel cooling accomplished?
The barrel incorporates six water-cooling zones supplied by a 1/2 HP recirculation pump, heat exchanger, and integrated water reservoir.
What operator instrumentation is included?
The operator station includes a speed pod displaying screw RPM, motor load percentage, and pressure transducer readings for process monitoring.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment offers complete domestic and international shipping, export documentation, freight coordination, heavy-haul transportation, and logistics services for extrusion equipment and complete plastics processing lines.
