USED DAVIS STANDARD THERMATIC

Used Equipment Facts About This Machine
Manufacturer
Davis-Standard is one of the world's leading manufacturers of extrusion systems for the plastics, polymer, rubber, wire and cable, pipe, sheet, profile, and compounding industries. Davis-Standard extruders are recognized for their durability, precision temperature control, and dependable performance in continuous manufacturing environments.

Description

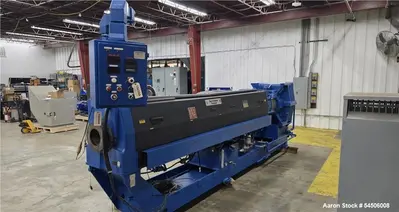

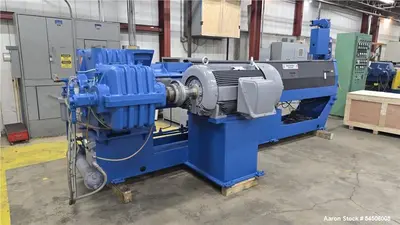

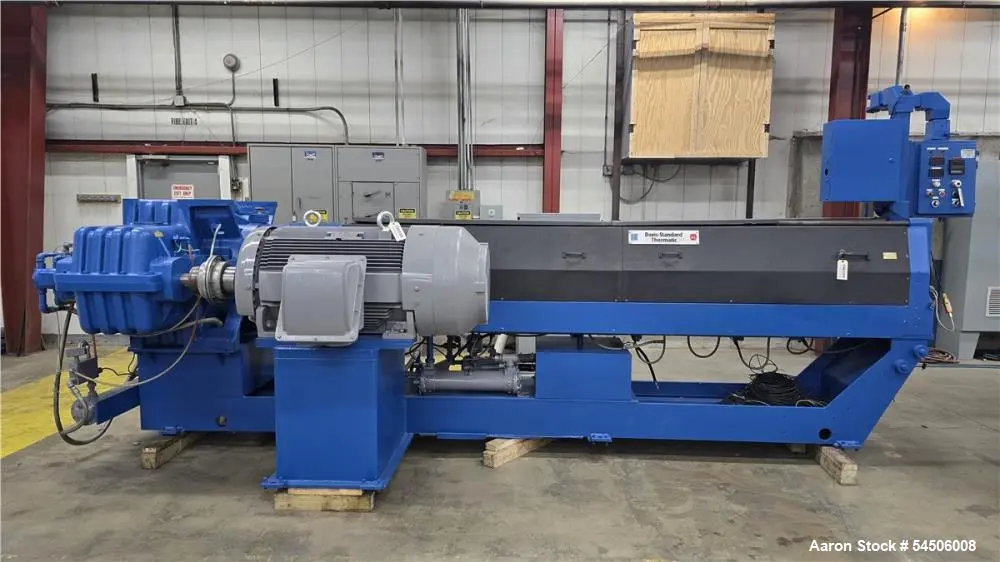

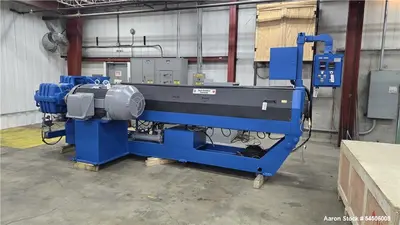

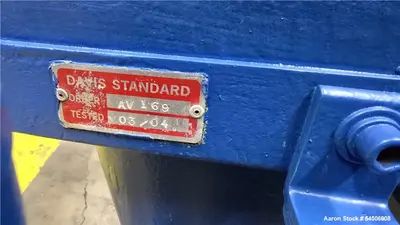

The Used & Reconditioned Davis-Standard 6" Single Screw Extruder, Model Thermatic 60IN60, is a heavy-duty extrusion system engineered for high-output polymer processing applications. Originally manufactured in 2004 and professionally reconditioned, this machine features significant mechanical and electrical upgrades, making it an excellent alternative to purchasing new equipment.

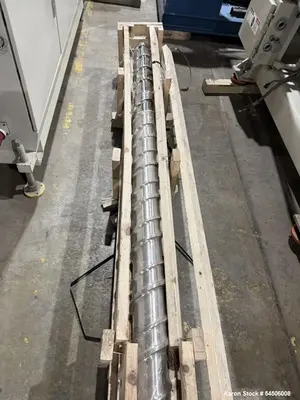

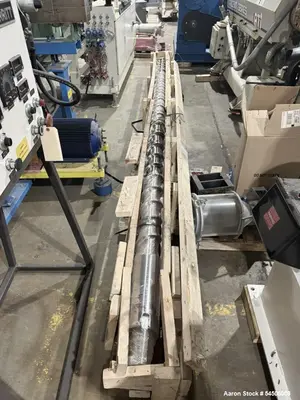

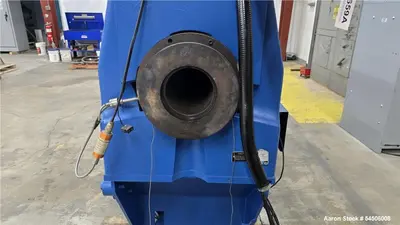

The extruder is equipped with a 6-inch single screw, 24:1 L/D ratio, and a Thermatic barrier flight screw designed to deliver excellent melt quality and processing efficiency across a wide variety of thermoplastic materials. The screw and barrel remain within serviceable tolerances, providing reliable production capability.

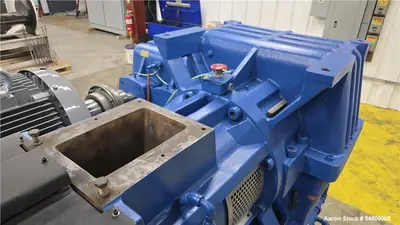

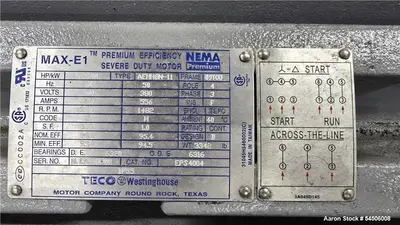

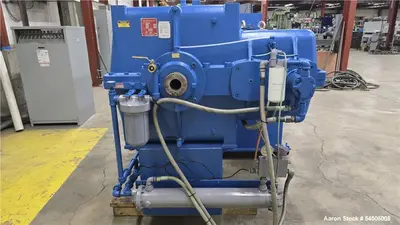

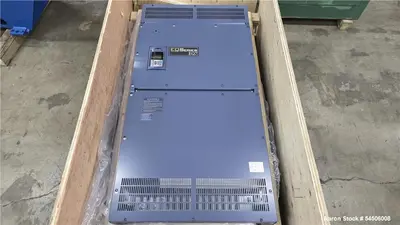

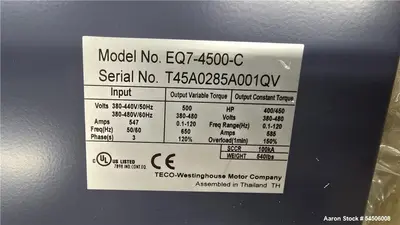

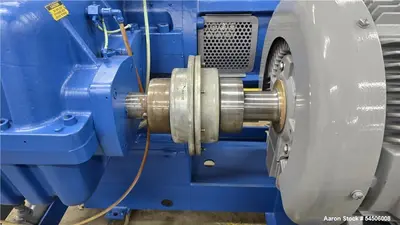

Power is supplied through a 17.21:1 heavy-duty gearbox rated for 424 HP with a 1.5 service factor, driven by a new 400 HP TECO AC motor and new TECO AC variable frequency drive, providing efficient speed control and dependable operation.

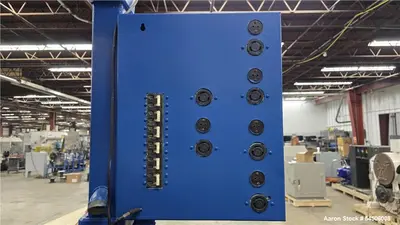

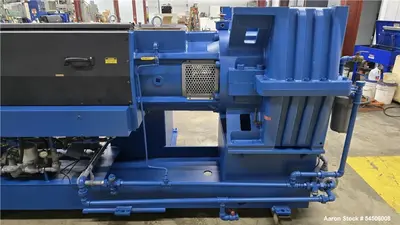

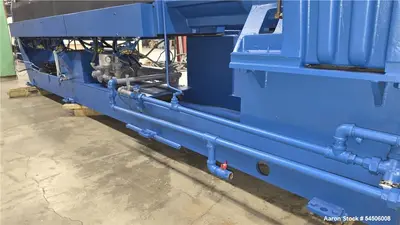

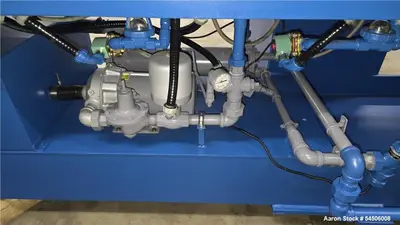

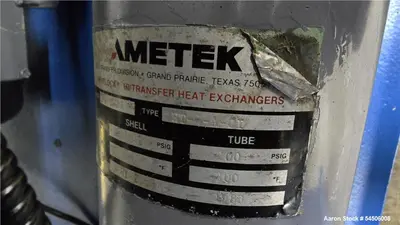

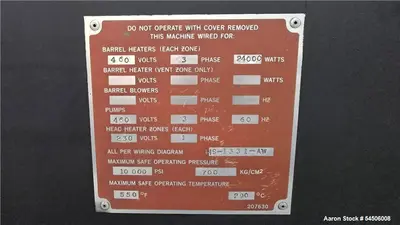

The machine incorporates a water-cooled barrel, complete with an integrated water reservoir, recirculation pump, and heat exchanger for consistent process temperature control. Heating is managed through five barrel heating zones and six die heating zones, all monitored by new Novus digital temperature controllers and amp gauges.
Additional operator features include a swing-arm operator station, speed pod, pressure gauge, screw speed gauge, and a 42-inch centerline height for convenient integration into existing extrusion lines.
As part of the reconditioning process, the heater bands have been electrically tested, barrel plumbing and heat exchangers have been flow tested, and five new Red Hat solenoid valves have been installed to ensure dependable operation.

Specifications

Specification
Details

Manufacturer
Davis-Standard

Model
Thermatic 60IN60

Equipment Type
Single Screw Extruder

Screw Diameter
6 in.

L/D Ratio
24:1

Screw Design
Thermatic Barrier Flight Screw

Clamp
Thermatic Clamp

Barrel Cooling
Water Cooled

Cooling System
Integrated Water Reservoir, Recirculation Pump & Heat Exchanger

Gearbox Ratio
17.21:1

Gearbox Rating
424 HP

Service Factor
1.5

Main Motor
New 400 HP TECO AC Motor

Motor Speed
1,800 RPM

Motor Frame
449TX

AC Drive
New TECO EQ7-4450-C

Barrel Heating Zones
Five (5)

Die Heating Zones
Six (6)

Temperature Controllers
New Novus Digital Controllers

Operator Station
Swing-Arm with Speed Pod

Instrumentation
Pressure Gauge & Screw Speed Gauge

Centerline Height
42 in.

Screw & Barrel Condition
Within Serviceable Tolerances

Reconditioning
Heater Bands Tested, Plumbing Flow Checked, Heat Exchanger Tested, Five New Red Hat Solenoid Valves

Approximate Dimensions
216 in. L × 80 in. W × 90 in. H

Original Year Built
2004

Condition
Used – Reconditioned

Applications
This Davis-Standard extruder is ideal for:

Plastic profile extrusion
Pipe extrusion
Sheet extrusion
Tubing production
Pelletizing operations
Polymer processing
Plastic recycling
Compounding
Wire and cable insulation
Industrial extrusion
Thermoplastic processing
Custom extrusion manufacturing

Common Materials Processed

Polyethylene (PE)
High-Density Polyethylene (HDPE)
Low-Density Polyethylene (LDPE)
Polypropylene (PP)
PVC
ABS
Polystyrene (PS)
Engineering resins
Reprocessed plastics
Thermoplastic compounds
Custom polymer blends
Specialty plastic formulations

Features & Benefits

Professionally reconditioned extrusion system
6-inch single screw with 24:1 L/D ratio
Thermatic barrier flight screw for improved melt quality
Heavy-duty Thermatic clamp
Water-cooled barrel with integrated cooling system
New 400 HP TECO AC motor
New TECO variable frequency drive
Five barrel heating zones
Six die heating zones
New Novus digital temperature controllers
Swing-arm operator station with integrated controls
Screw and barrel within serviceable tolerances
Heater bands and cooling system fully tested during reconditioning
Ready for high-output industrial extrusion

Frequently Asked Questions
What type of products can this extruder manufacture?
This extruder is suitable for producing plastic pipe, sheet, profiles, tubing, recycled plastic products, pelletized compounds, wire and cable insulation, and many other thermoplastic products depending on downstream equipment and tooling.
What upgrades were completed during reconditioning?
The machine received a new 400 HP TECO AC motor, new TECO AC drive, new Novus temperature controllers, five new Red Hat solenoid valves, electrical testing of heater bands, and flow testing of the barrel plumbing and heat exchangers.
What is the screw configuration?
The extruder is equipped with a 6-inch Thermatic barrier flight screw featuring a 24:1 L/D ratio. The screw and barrel remain within serviceable tolerances.
How is the barrel cooled?
The barrel utilizes a water-cooled system incorporating an integrated reservoir, recirculation pump, and heat exchanger for precise process temperature control.
Does the machine include operator controls?
Yes. The extruder includes a swing-arm operator station, speed pod, pressure gauge, screw speed gauge, Novus digital temperature controllers, and amp gauges.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment provides complete domestic and international shipping services, including heavy-haul transportation, export documentation, rigging coordination, and logistics support for extrusion systems and complete plastics processing lines.
