Used

USED PIRANHA PII-140

Ontario, Canada
Asking Price
USD $25,000.00
1 available
334Listings|133Followers
Overview
Ironworkers

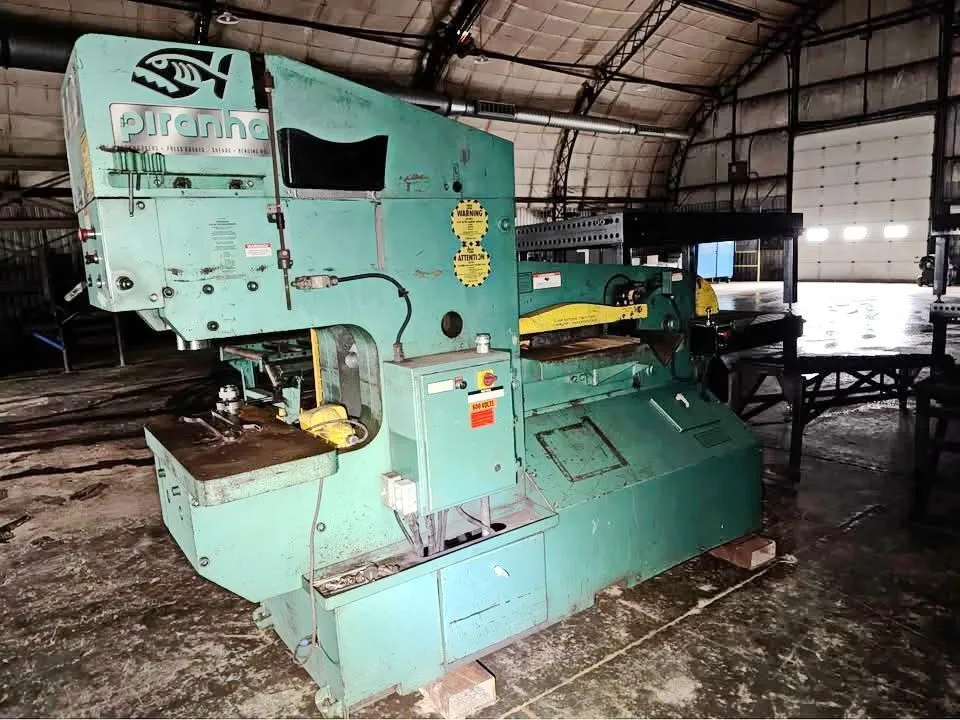

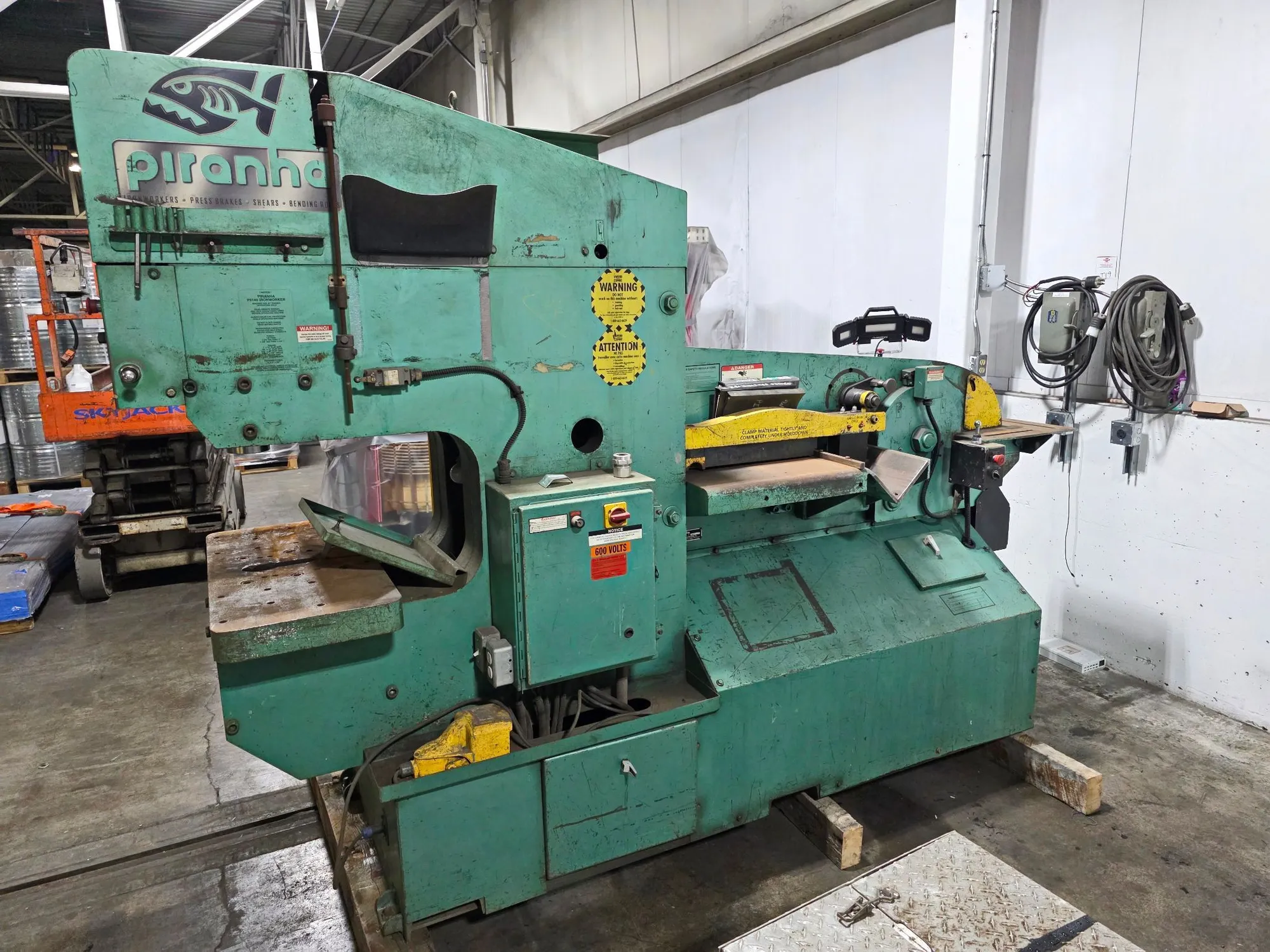

Piranha PII-140 Dual-Operator Hydraulic Ironworker, 140 Ton, Roller Material Feed And Support Table, Plate Shear W/ Adjustable Automatic Hold-Down, Punch Station W/ Mechanical Stripping Assembly, Coper Notcher Station, Large Multi-position Punch Platen

Specs
Tonnage
140 T
127.006 t
Angle (L1)
6"
152.4 mm
Angle (L2)
6"
152.4 mm
Angle (T)
0.625"
15.875 mm
Power
20 hp
20 hp
Throat
20.5"
520.7 mm
Stroke
7"
177.8 mm
Strokes per min
24
24
Max Hole Punch
∅1.375” Through 1.25" Steel
∅1.375” Through 1.25" Steel
Plate Shear
0.5" X 20", 0.75" X 18", 1" X 14"
0.5" X 20", 0.75" X 18", 1" X 14"
Bar Cutter (Round)
0.5" To 2"
0.5" To 2"
Bar Cutter (Square)
0.5" To 1.375"
0.5" To 1.375"
Max Coper-Notcher
4" X 6" X 0.375"
4" X 6" X 0.375"
Made In
United States
United States
Dimensions
120" X 38" X 85"
120" X 38" X 85"
Weight
11,930 lb
11,930 lb
Equipped With

Dual-operator controls w/ separate foot pedals / joystick
Roller material feed & support table
Punch station w/ mechanical stripping assembly
Plate shear w/ adjustable automatic hold-down
Coper notcher station
Large multi-position punch platen
Expanded-metal safety guarding
Integrated scrap discharge chutes
