Used

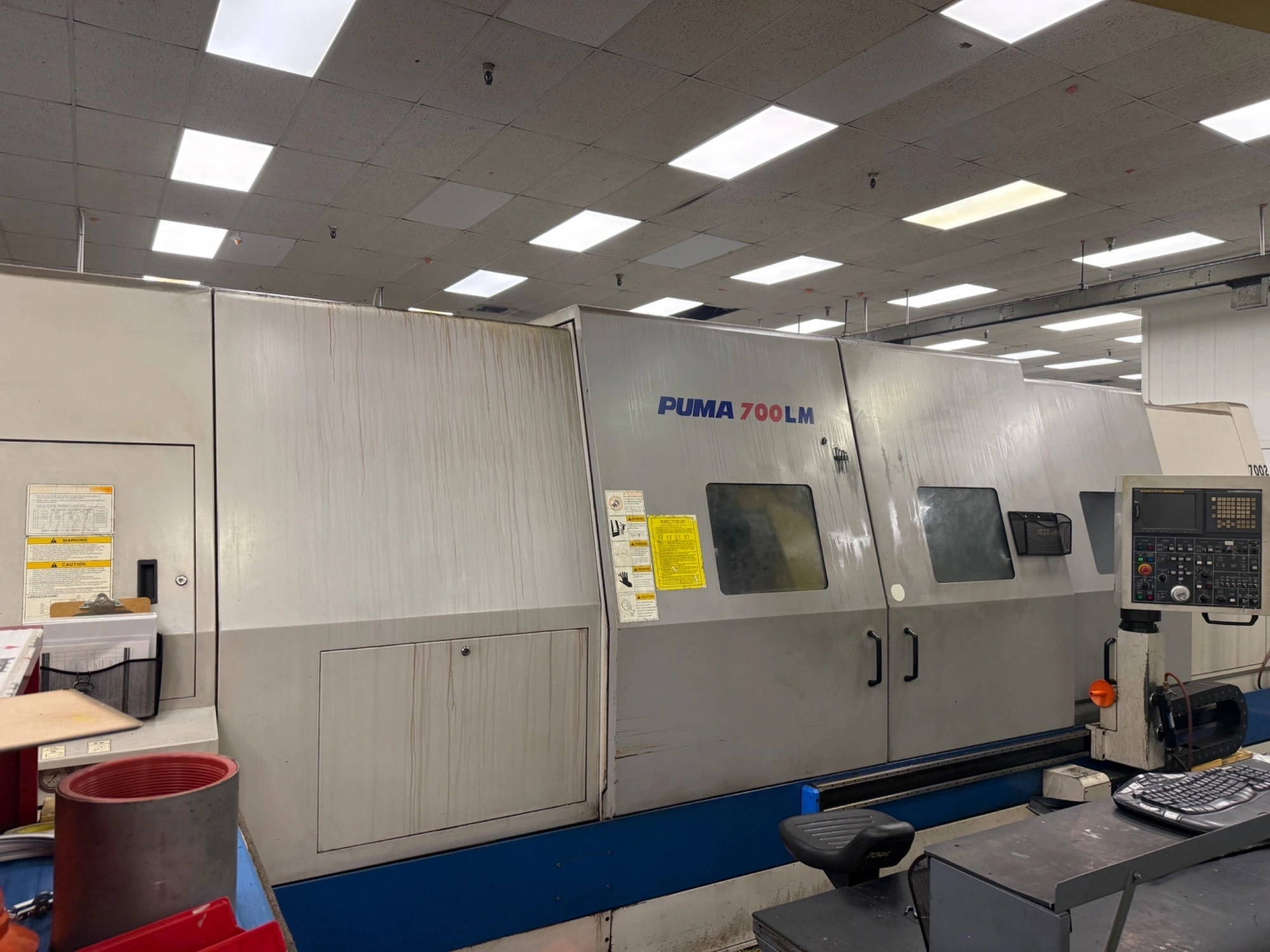

USED 2006 DOOSAN PUMA 700LM
Illinois, United States
Overview
Specs
Swing Over Bed
40.5"
1,028.7 mm
Machining Length
126"
3,200.4 mm
Distance Between Centers
141.7"
3,599.2 mm
Turning Diameter, Shaft Diameter
31.5"
800.1 mm
Chuck Size 1
24"
609.6 mm
Spindle Nose 1
A2-15
A2-15
Spindle Bore Diameter 1
7.12"
180.85 mm
Spindle Bar Capacity 1
6.5"
165.1 mm
Spindle Speeds 1
1,500 RPM
1,500 RPM
Spindle Horsepower 1
60 hp
44.7 kW
X1 - Axis Travel
18.5"
469.9 mm
Z1 - Axis Travel
127.36"
3,234.9 mm
C1 - Axis Travel
.001
.001
Rapid Traverse Rate - X1
400 in/min.
169.3 mm/sec.
Rapid Traverse Rate - Z1
630 in/min.
266.7 mm/sec.
Gear Ranges
2
2
Turret Configuration 1
12
12
Turret Rotary Tool Spindle Speed 1
3,000 RPM
3,000 RPM
Turret Rotary Tool Horse Power 1
15 hp
Tailstock Quill Diameter
5.9"
149.86 mm
Tailstock Taper
MT 6
MT 6
Tailstock Quill Travel
5.9"
149.86 mm
Programmable Tailstock
YES
YES
Tailstock Travel
124"
3,149.6 mm
# Axis
3
3
Bar Capacity
6.5"
165.1 mm
Tailstock
'Yes'
'Yes'
Live Tooling
'Yes'
'Yes'
Sub Spindle
'No'
'No'
Control
CNC (Fanuc 21 ITB CNC Color Control)
CNC (Fanuc 21 ITB CNC Color Control)
Equipped With
FANUC 21ITB CNC CONTROL
24" 3 JAW HYDRAULIC THRU HOLE CHUCK
.001 C AXIS INDEXING
HYDRAULIC STEADY REST
CHIP CONVEYOR
