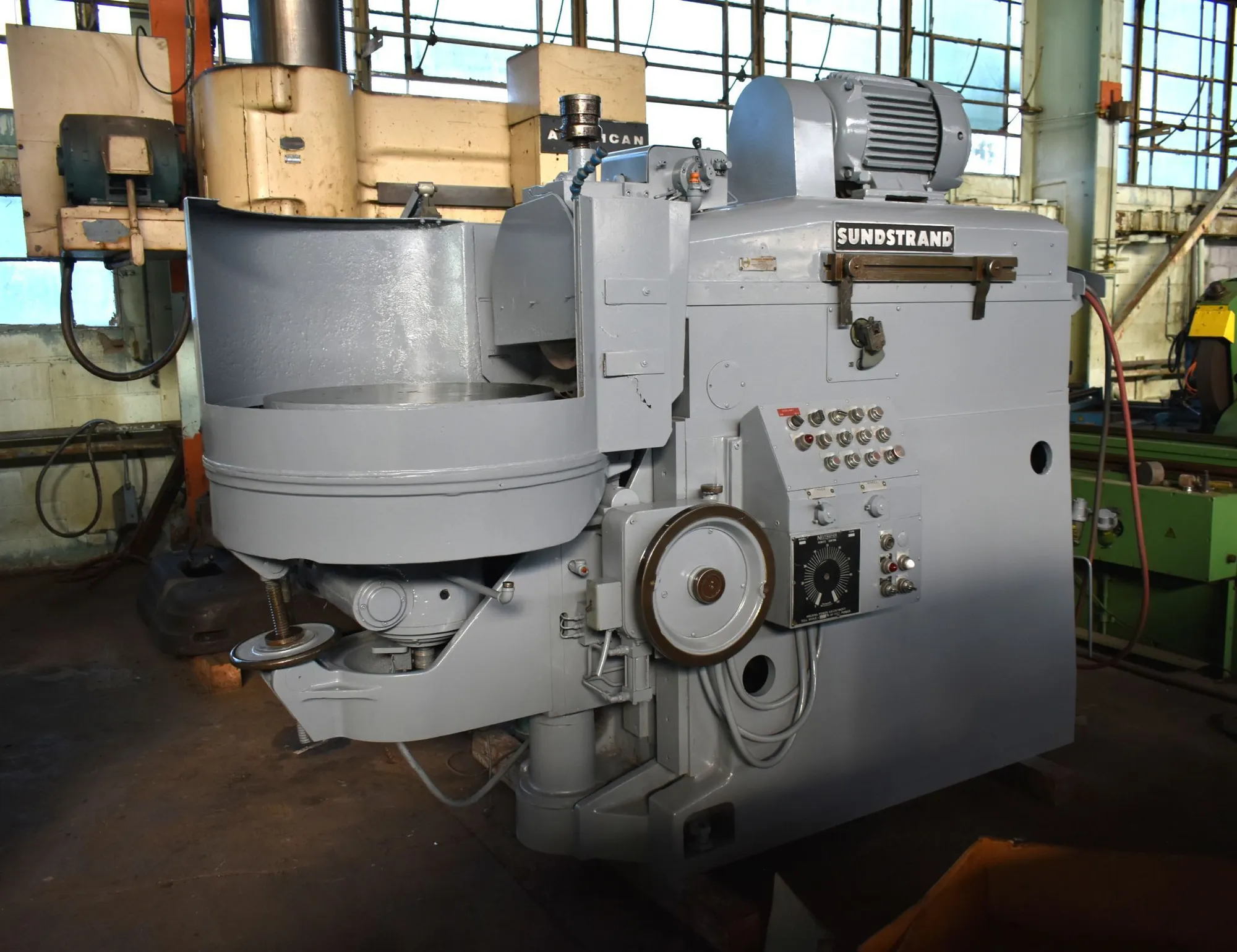

USED SUNDSTRAND H-24

24" SUNDSTRAND "H-24" HORIZONTAL-SPINDLE
ROTARY SURFACE GRINDER
Serial No 44-7, Model H24

EQUIPPED WITH:
Horizontal-Spindle Machine Design
26" Diameter Magnetic Chuck w/Neutrofier
Variable Speed Grinding Wheel
Vari-Speed Table Drive
Above-Wheel Dresser
Trabon Automatic Lube System
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Magnetic Chuck Nominal Diameter 24"
Magnetic Chuck Actual Diameter 26"
Swing With-in Coolant Guards 34"
Grinding Height Capacity w/New Wheel 10"
Grinding Head Travel, Horizontal 17"
Grinding Wheel Diameter, Maximum 16"
Convex Table Angle Degrees, Maximum 10-DEGREES
Concave Table Angle Degrees, Maximum 10-DEGREES
Grinding Wheel Speed 1400 RPM
Chuck Speeds, Variable Range 37 to 155 RPM
Grinding Traverse Feeds, Range 0 to 10 FPM
Power Feed Adjustment .0001" to .0015"
Power Table Positioning 6 IPM
Spindle Motor, Horsepower/RPM 20 HP/1755 RPM
Hydraulic Motor, Horsepower 10 HP
Floor Space, F-B x L-R 123” x 68”
Overall Height 49”
Weight, Approximately 12200 LBS
