USED NORTON U4
Overview
18” x 72” NORTON “U4” UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER - Partial Swing Down Internal Attachment - (2) Follow Rests - 12” 4-Jaw Chuck - Power Wheelslide Positioning -
Specs

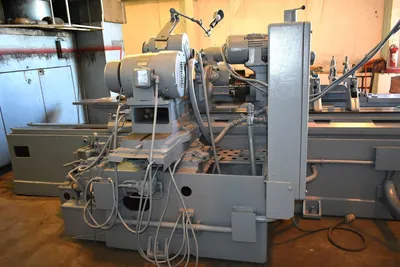

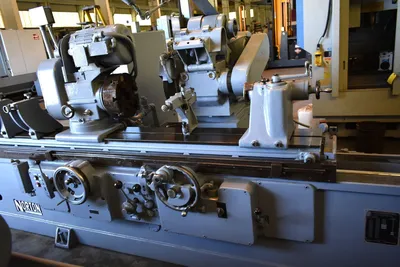

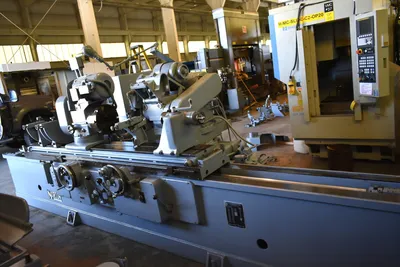

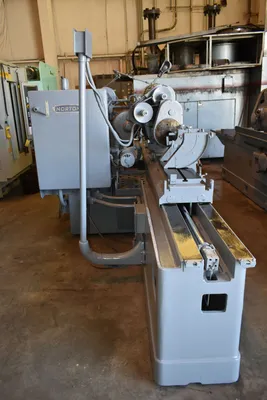

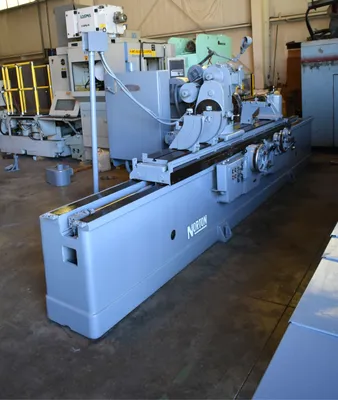

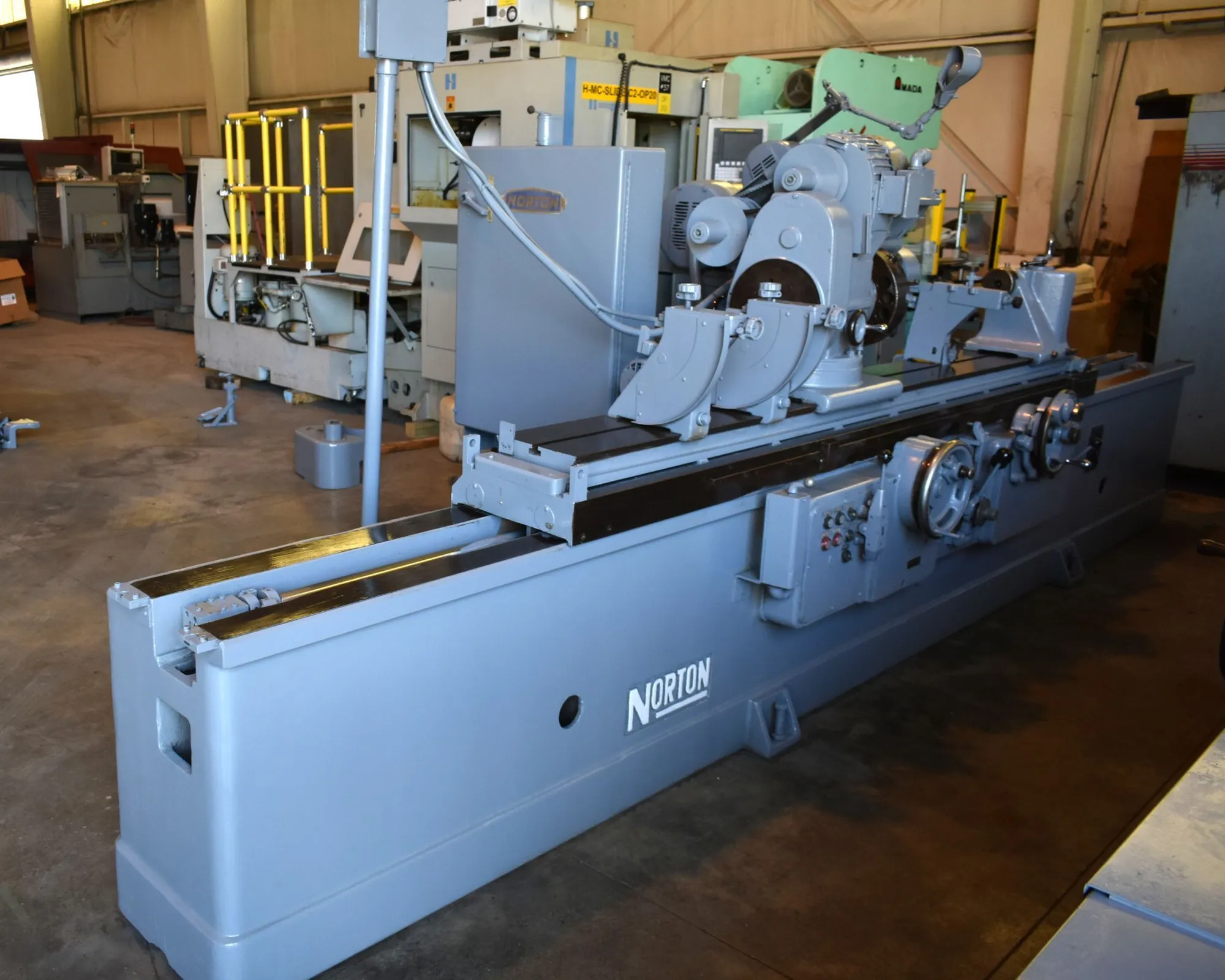

18” x 72” NORTON “U4” UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER
Serial No L-2102, Model U4
EQUIPPED WITH:
Internal Grinding Spindle Attachment (Partial)

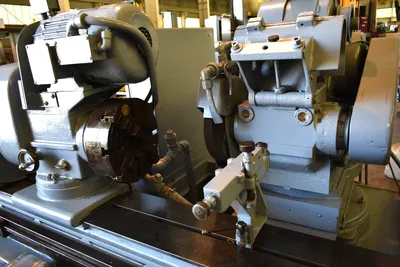

Universal Live/Dead Center Headstock
Hydraulic Longitudinal Table Feed
Table Mounted Grinding Wheel Dresser

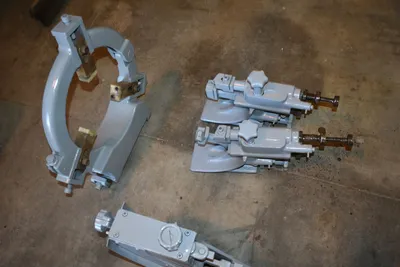

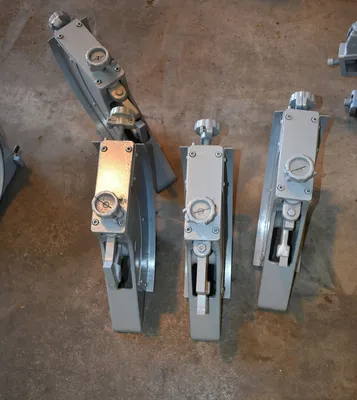

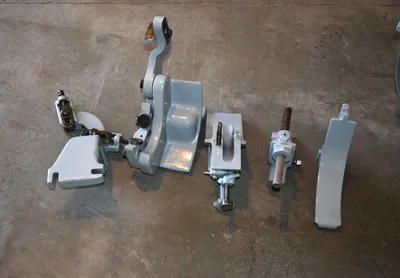

(2) Follow Rests - 12” 4-Jaw Chuck
CATALOG SPECIFICATIONS:
Grinding Diameter, Maximum 18”
Grinding Diameter, Minimum 0
Distance Between Centers, Nominal 72”
Grinding Wheel Diameter, Standard 14”
Grinding Wheel Width, Standard 1.5”
Grinding Wheel Hole Diameter 5”
Table Swivel Taper, Forward 3” TPF
Table Swivel Taper, Back 1" TPF
Table Swivel Forward 7-1/4 DEGREES
Table Swivel Back 2-1/2 DEGREES
Headstock Spindle Taper Hole #14 JARNO
Footstock Spindle Taper Hole #14 JARNO
Headstock Swivel, Range 360-DEGREES
Workhead Spindle Speeds, Range 60 to 360 RPM
Table Longitudinal Feeds, Infinite 1 to 228 IPM
Grinding Wheelhead Spindle Motor Horsepower 7.5 HP
Floor Space Required, L x W 16'8" x 6'8"
Weight Approximately 13500 LBS
F.O.B. OUR WAREHOUSE
