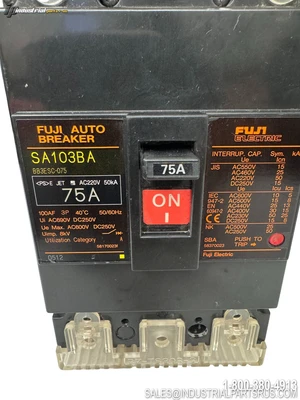

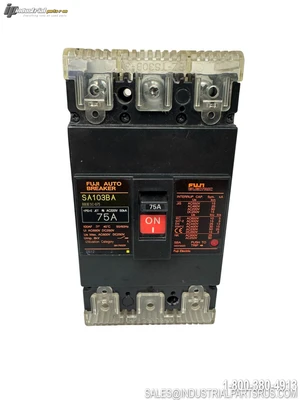

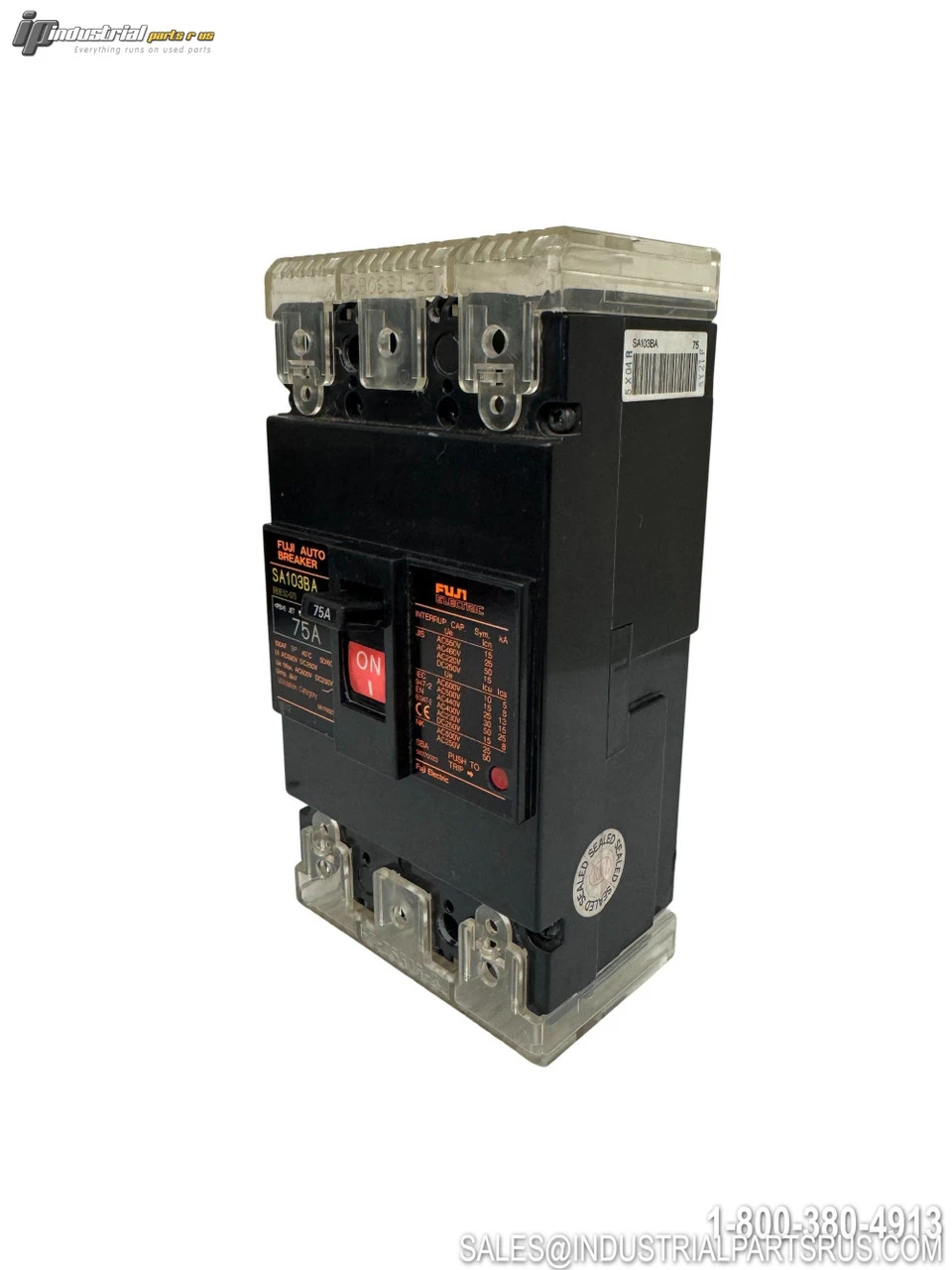

USED FUJI SA103BA 75A

The Fuji Electric SA103BA 75A is a molded case circuit breaker (MCCB) from the Fuji S-Series, featuring a 100 Amp frame (100AF) with a 75 Amp rated continuous current, 3-pole configuration, and thermal-magnetic trip mechanism. It is designed for branch circuit protection in industrial power distribution and control panel applications. The unit is housed in a glass-fiber reinforced thermoplastic molded case with interphase insulation barriers, IP20 rating, and screw terminal front connections compatible with 4 AWG to 1/0 AWG (75°C copper) conductors. Optional field-installable accessories include auxiliary switches, alarm switches, shunt trip devices, and undervoltage release units.
Specification
Value
Brand
Fuji Electric
Model / Part Number
SA103BA 75A
Product Type
Molded Case Circuit Breaker (MCCB)
Series
SA Series (S-Series)
Rated Current (Trip Rating)
75A
Ampere Frame
100AF (100 Amp Frame)
Number of Poles
3-Pole
Rated Voltage (AC)
240V AC
Trip Mechanism
Thermal-Magnetic
Breaking Capacity (Icu @ 240V AC)
35 kA (Standard BA Grade)
Mounting Type
Front Mounting, Front Connection
Application
Branch Circuit Protection
Reference Ambient Temperature
40°C
Field-Installable Accessories
Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release
Standard Compliance
IEC / JIS
Manufacturer
Fuji Electric Co., Ltd.
We warranty all items for 30 days from date of purchase.
