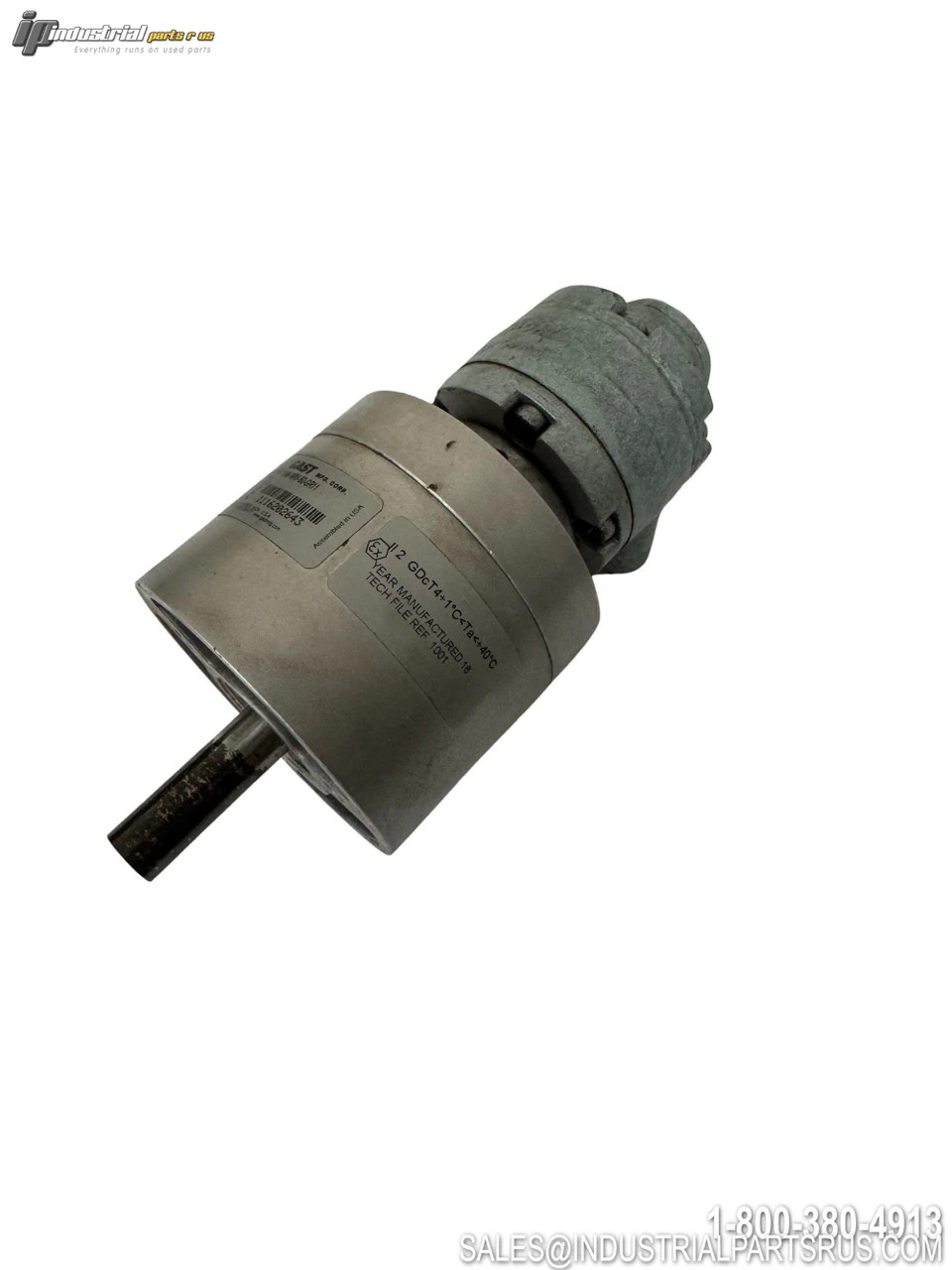

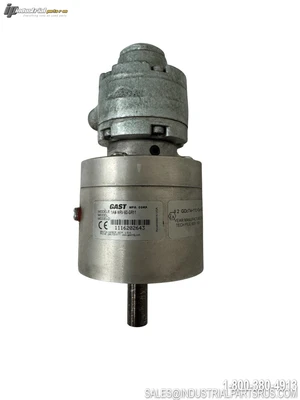

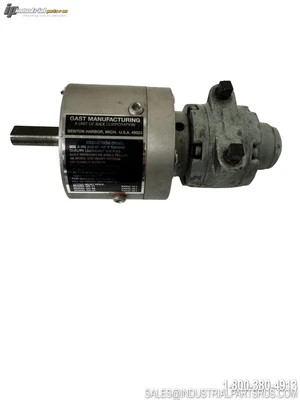

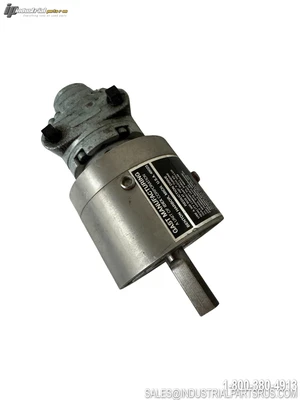

USED GAST 1AM-NRV-60-GR11

The Gast 1AM-NRV-60-GR11 is a compact, oil-lubricated rotary vane air gear motor featuring an integrated 15:1 gear reducer designed for low-speed, high-torque industrial applications. It delivers up to 0.34 HP and 72 in-lb of maximum torque at speeds up to 350 RPM, and can be stalled or overloaded for extended periods without damage to the motor. Its non-electrical, cool-running design makes it well-suited for hazardous locations, extreme temperature environments, and OEM integration in food packaging, conveyor drives, mixing equipment, pump drives, hoists, and pharmaceutical packaging systems. ATEX-certified for use in explosive atmospheres (II 2 GD c T4), with a keyed output shaft and flange (face) mount configuration.
Specification
Value
Brand
Gast
Model / Part Number
1AM-NRV-60-GR11
Series
1AM-NRV (GM)
Motor Type
Rotary Vane Air Gear Motor
Maximum Power Output
0.34 HP (0.25 kW)
Maximum Speed
350 RPM
Maximum Torque
72 in-lb (8.1 N·m)
Torque at Maximum Speed
62 in-lb (7.1 N·m)
Speed at Maximum Torque
30 RPM
Starting Torque @ 80 PSI
40 in-lb (4.52 N·m)
Gear Ratio
15:1
Maximum Operating Pressure
100 PSI (7.0 bar)
Air Consumption
21 CFM (35.68 m³/h)
Port Size
1/8" NPT
Number of Vanes
8
Rotation
Reversible
Mounting Type
Face Mount
Mounting Orientation
Horizontal or Shaft Down
Output Shaft Diameter
0.5 in (12.7 mm)
Lubrication
Oil-Lubricated (Gast AD220 / 10W30 detergent oil)
Net Weight
5 lbs (2.3 kg)
Stainless Steel
No
Standards / Certifications
CE, ATEX (II 2 GD c T4)
Max Peak Sound Level
78 dBa
Repair / Service Kit
K278 (8-vane air motor)
Cross Reference
33K666
Recommended Accessories
Filter AH100F, Regulator AH101R, Gauge AA806, Lubricator AH102L, Muffler AF350
Typical Applications
Mixing equipment, conveyor drives, pump drives, food packaging, pharmaceutical packaging, hoists and winches, hose reels, tension devices, turntables
We warranty all items for 30 days from date of purchase.
