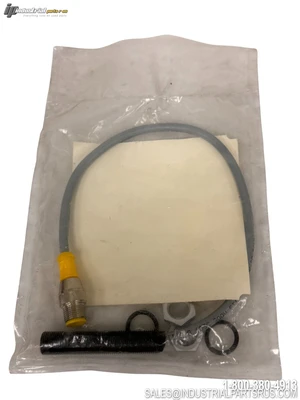

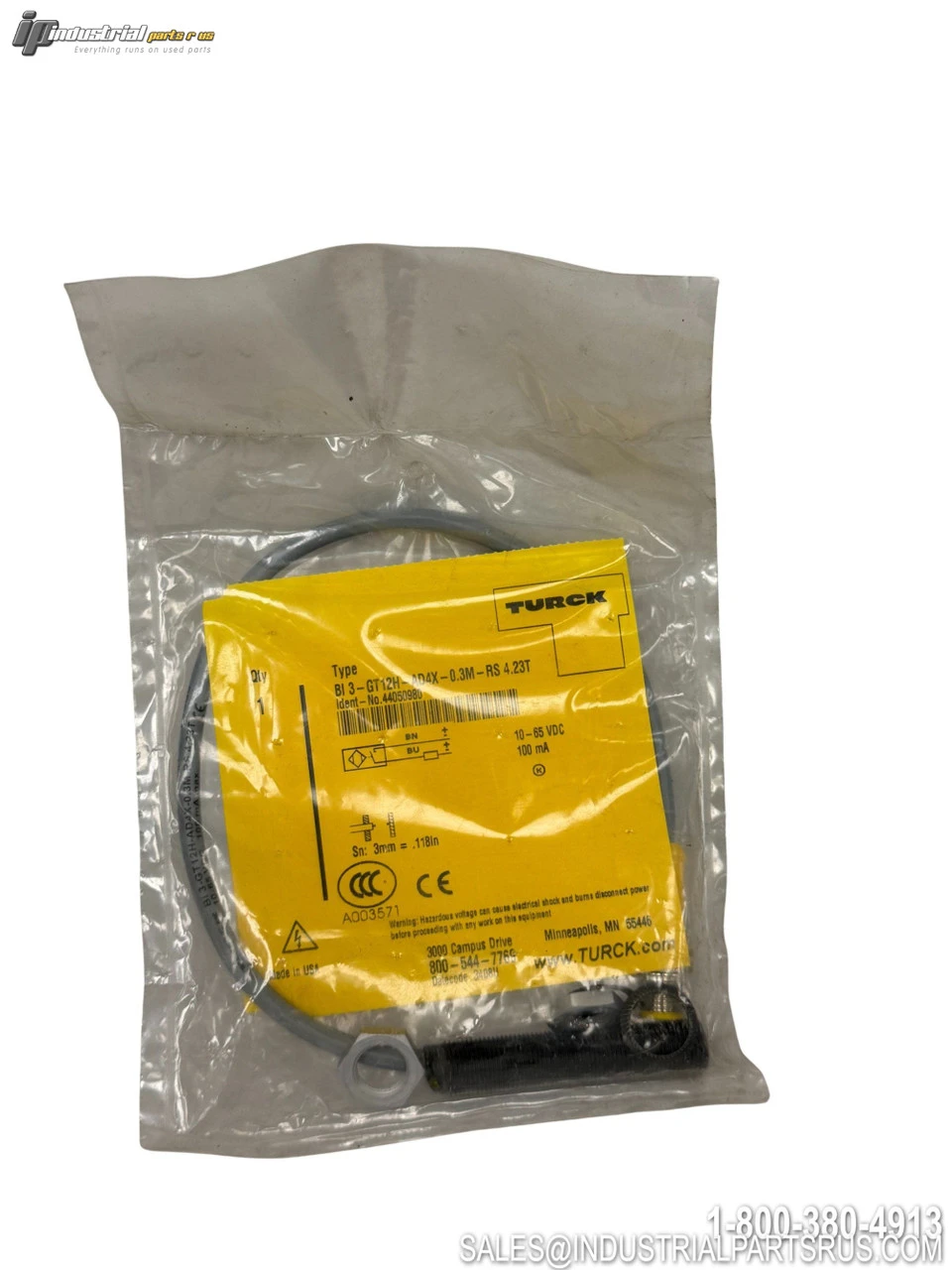

NEW TURCK BI 3-GT12H-AD4X-0.3M-RS 4.23T

The Turck BI 3-GT12H-AD4X-0.3M-RS 4.23T is an inductive proximity sensor featuring a fully threaded M12 brass barrel housing, a 3mm nominal sensing range, and a DC 2-wire normally open (NO) output. It operates on a wide supply voltage of 10–65 VDC and connects via a 0.3m pigtail cable terminated with a 2-pin M12 (RS 4.23T) quick-disconnect connector, making it well-suited for space-constrained factory automation and machine tool applications.
Specification
Value
Brand
Turck
Model / Part Number
BI 3-GT12H-AD4X-0.3M-RS 4.23T
Product Type
Inductive Proximity Sensor
Sensing Range (Nominal)
3 mm
Housing Shape
M12 Fully Threaded Barrel
Thread Size
M12 × 1
Housing Material
Brass (PTFE-coated)
Sensing Face Material
PA12-GF30 (glass fiber reinforced polyamide)
Supply Voltage
10–65 VDC (12V / 24V / 48V nominal)
Output Type
DC 2-Wire, Normally Open (NO)
Maximum Load Current
100 mA
Switching Frequency
1 kHz (1000 Hz) max.
Connection Type
0.3m pigtail cable with 2-pin M12 (RS 4.23T) male connector
Number of Connector Pins
2-pin
Cable Length
0.3 m (approx. 1 ft)
Protection Rating
IP67
Mounting Style
Flush (Embeddable / Shielded)
LED Indicator
Yes (Yellow)
Protection Functions
Short-circuit (pulsed), Overload, Reverse polarity
Operating Temperature
-25°C to +70°C
Series / Family
BI3 (GT12) Inductive Sensors
Manufacturer
Turck (Hans Turck GmbH & Co. KG)
We warranty all items for 30 days from date of purchase.
