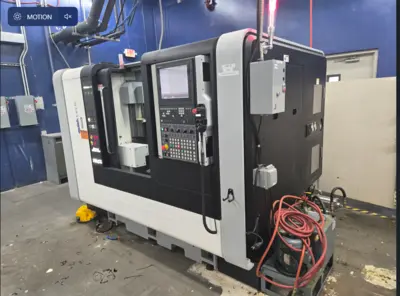

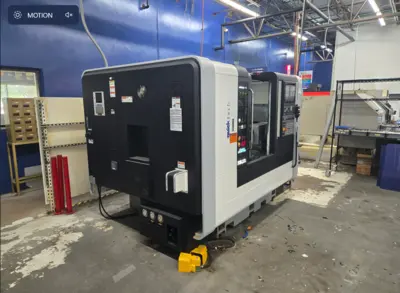

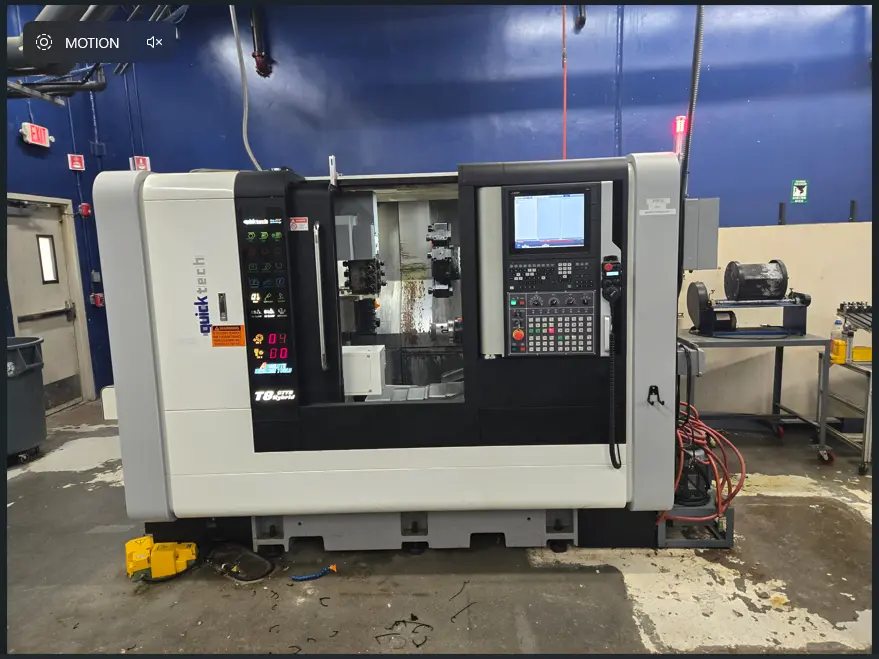

USED 2022 QUICKTECH T8

Bar Capacity: 2.56″
Chuck Size: 8″ 3-Jaw Hydraulic Chuck
Chuck Type: DIN KK6-185E60B
Max Turning Length: 13.8″
Max Turning Diameter: 11.8″
Max Spindle Speed: 4,000 RPM
Spindle Motor: 15 HP
Spindle Nose: A2-6
Hole Through Draw Tube: 2.6″
C-Axis Resolution: 0.001°

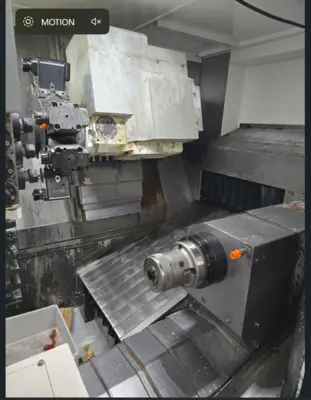

Tool Station Type: 12-Station BMT-55 Servo Turret
Tool Capacity: 12-Stations
Live Tool Spindle Motor: 5 HP
Square Shank Tool Size: 1″
Boring Bar Capacity: 1.25″
Turret Indexing Time: 0.3 seconds per station
Rigid Tapping: Standard
Coolant Tank Capacity: 65 gallons
Hydraulic Pump Motor: 1 HP
Approximate Machine Dimensions: 135″ x 80″ x 77″
Approximate Machine Weight: 13,420lbs
Electrical: 208V/220V, 3-Phase
Equipped With

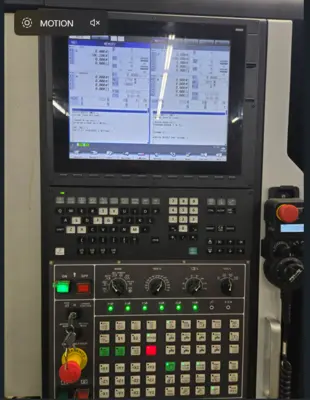

Mitsubishi M830S High-Performance CNC Controller
15″ Color LCD Touch Screen
Sub-Spindle
Live Tooling
360-degree Rotary B-Axis
Continuous C-Axis
Dual Y-Axis
Hinge-Type Chip Conveyor
Integrated Bar Feeder Communication Interface
