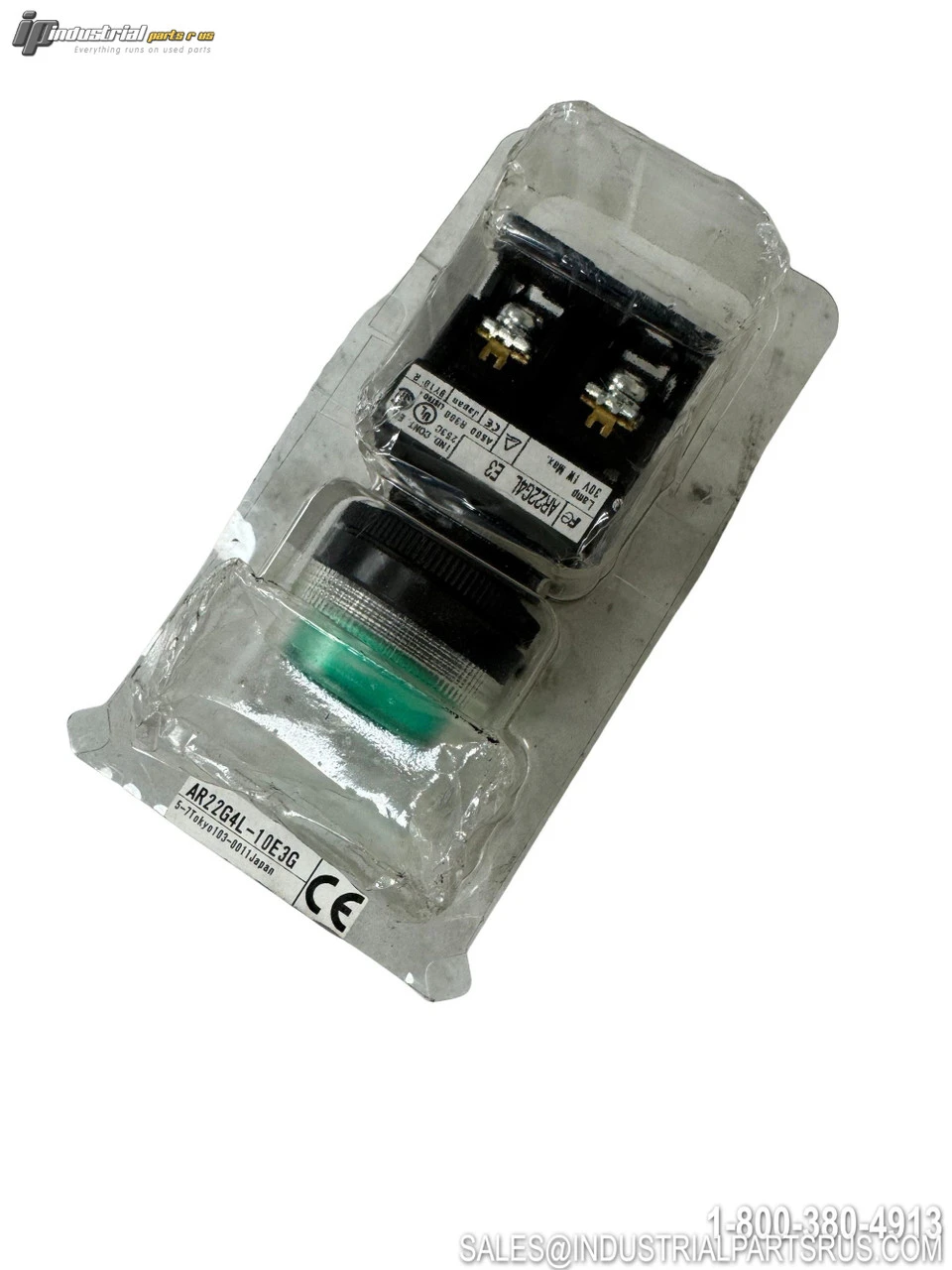

NEW FUJI AR22G4L-10E3G

The Fuji Electric AR22G4L-10E3G is a 22mm diameter illuminated momentary push button switch from the AR22 Series, featuring an extended round head with a full guard (24mm dia.), green LED illumination rated at 24V AC/DC without a transformer, and one normally open (N.O.) SPST contact with screw terminal connections. It is designed for use in machine tools, industrial machines, control panels, and distribution panels where reliable operator interface is required. The AR22 Series uses a one-touch lock and release arm with a wedge mechanism for tool-free mounting and contact block replacement, and accommodates both 22.3mm and 25.5mm panel cutout diameters.
Specification
Value
Brand
Fuji Electric
Model / Part Number
AR22G4L-10E3G
Series
AR22
Product Type
Illuminated Push Button Switch
Mounting Hole Diameter
22mm (fits 22.3mm or 25.5mm panel cutout)
Operator / Actuator Style
Extended Round Head with Full Guard (24mm dia.)
Action Type
Momentary
Contact Configuration
1 N.O. (Normally Open)
Pole / Throw Configuration
SPST
Illumination Color
Green
Illumination Type
LED (High-Brightness "Pikari Kun")
Lamp / LED Voltage
24V AC/DC (No Transformer Required)
Terminal Type
Screw Terminal
Mounting Type
Panel Mount (Threaded Bushing)
Panel Thickness Range
1 to 6mm
Overall Dimensions
44 x 30 x 98.5 mm
Rated Insulation Voltage
600V AC/DC
Dielectric Strength
2500V AC, 1 minute
Insulation Resistance
100 MΩ or more (500V DC megger)
Mechanical Durability
Up to 5 million operations
Electrical Durability
500,000 operations at 220V AC 6A
Operating Frequency
Up to 1,200 operations/hour
Degree of Protection
IP65 (Oil and Dust-Tight)
Ambient Temperature
-20 to +70°C (-4 to +158°F)
Utilization Category
AC-15, DC-13
Wire Size
AWG 18 to AWG 14
Tightening Torque
0.8 to 1.0 N·m
Approvals / Certifications
UL508, CSA C22.2 No.14, TÜV EN60947-5-1, CCC GB14048.5, RoHS Compliant
ECCN
EAR99
We warranty all items for 30 days from date of purchase.
