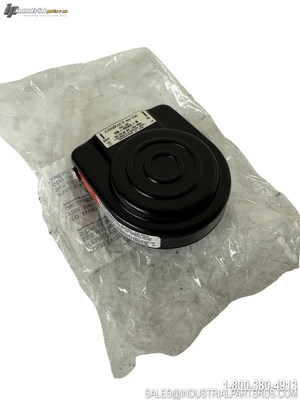

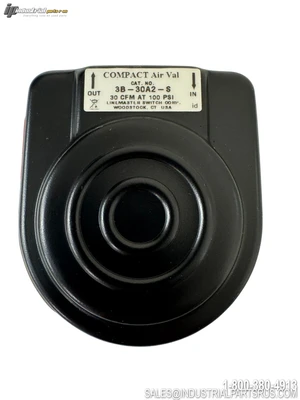

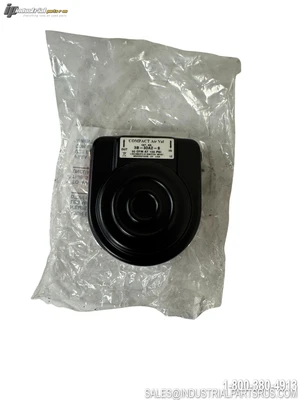

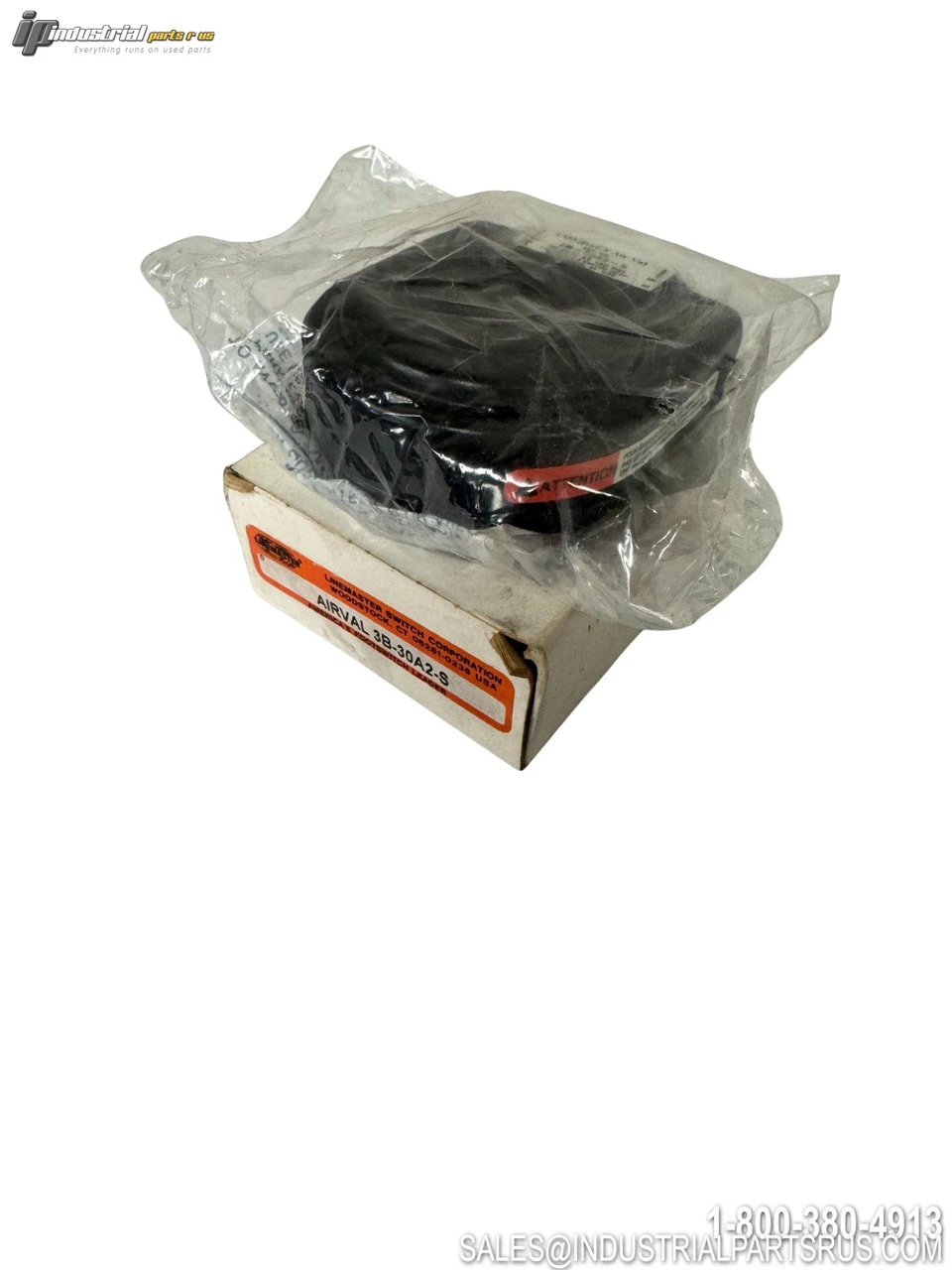

NEW LINEMASTER 3B-30A2-S

The LineMaster 3B-30A2-S is a Compact AirVal series pneumatic foot switch featuring a 3-way momentary valve in a strong steel housing with a nonskid base pad. It is designed for hands-free, on-and-off air activation in medium-duty industrial applications including food equipment, woodworking, metalworking, textile, stamping, and printing. Air flows when the plunger is depressed, stops when released, and exhausts back pressure on the output side; the plunger can be depressed flush with the valve body without damage.
Specification
Value
Brand
LineMaster
Model / Part Number
3B-30A2-S
Product Series
AirVal Compact Single
Type
Pneumatic Foot Switch
Valve Configuration
3-Way
Action Type
Momentary (Single Stage)
Number of Pedals
Single
Air Flow
30 CFM at 100 PSI
Exhaust Flow
25 CFM at 100 PSI
Maximum Line Pressure
150 PSI
Operating Force
7 lbs
Port Size
1/8"-27 NPT (Input & Output)
Port Location
Exterior Housing
Housing Material
Steel
Internal Valve Body
Non-Ferrous
Plunger Material
Stainless Steel
O-Ring Material
PTFE-Coated Buna-N (Nitrile Rubber)
Color
Black
Guard
No Guard (Guard #522-B14 available separately)
Mounting
Non-Skid Base Pad, 2 Bolt Holes
Replacement Interior Valve
3-30A2-SI
Operating Temperature
0 to 131°F (0 to 55°C)
Dimensions (H x W x D)
1.28" x 2.74" x 2.88" (32.5 x 69.6 x 73.2 mm)
Weight
0.5 lbs (0.45 kg)
Certifications
CE Markable, RoHS
Air Supply Requirement
Filtered and Lubricated
We warranty all items for 30 days from date of purchase.
