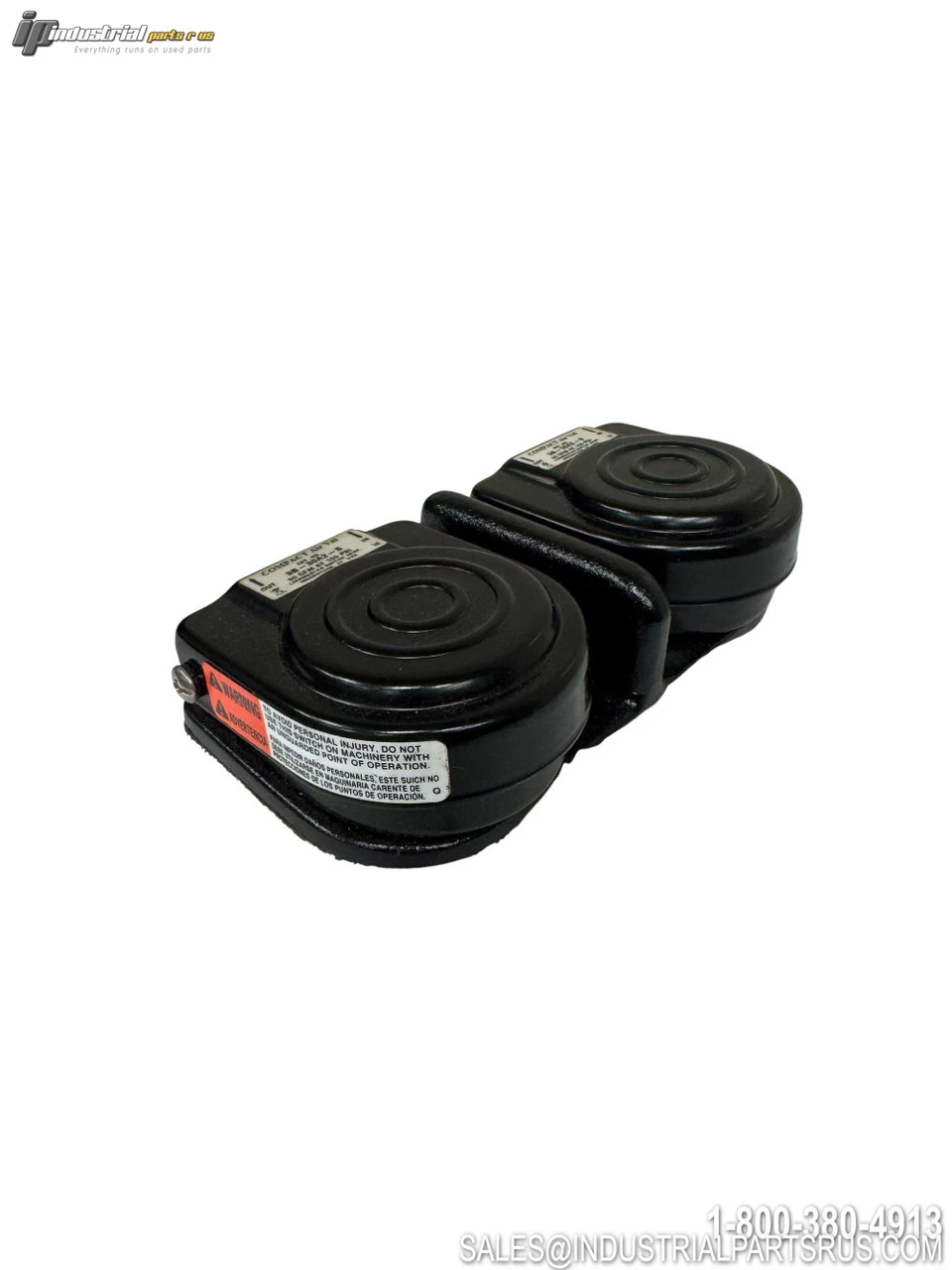

NEW LINEMASTER AIRVAL TWIN 3B-30A2-S

The LineMaster AIRVAL TWIN 3B-30A2-S is a dual-pedal compact pneumatic foot switch featuring an independent 3-way momentary valve on each side for hands-free air control. It incorporates a steel housing with nonskid base pad and a corrosion-resistant internal valve constructed of a non-ferrous body, stainless steel plunger, and Teflon-coated Buna-N O-rings. Designed for long-life operation, it is suited for industrial applications including cut-and-form machines, stamping, woodworking, metalworking, textile, and printing equipment.
Specification
Value
Brand
LineMaster
Model / Part Number
AIRVAL TWIN 3B-30A2-S
Product Series
Compact AirVal
Product Type
Pneumatic Foot Switch – Twin/Dual Pedal
Valve Type
3-Way (each side)
Valve Action
Momentary (Single Stage)
Number of Pedals
2 (Twin)
Air Flow at 100 PSI
30 CFM
Exhaust Flow at 100 PSI
25 CFM
Maximum Line Pressure
150 PSI
Port Size
1/8-27 NPT (Input & Output)
Operating Force
7 lbs
Housing Type
Exterior / Exposed – Steel
Housing Material
Steel
Valve Body Material
Non-Ferrous Body
Plunger Material
Stainless Steel
O-Ring Material
Teflon-Coated Buna-N (PTFE-coated Nitrile)
Exhaust Location
Around plunger (exhausts back pressure on output side)
Twin Size (W x D x H)
2-7/8" x 5-3/4" x 1-1/8"
Weight
1-1/2 lbs
Base
Nonskid Base Pad with bolt holes for mounting
Guard
No Guard (Optional: Twin Guard #522-B12)
Air Supply Requirement
Filtered and lubricated air supply required
CE Markable
Yes
Color
Black
Manufacturer
Linemaster Switch Corporation
Manufacturer Location
Woodstock, CT, USA
We warranty all items for 30 days from date of purchase.
