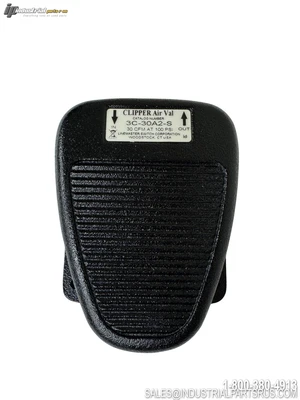

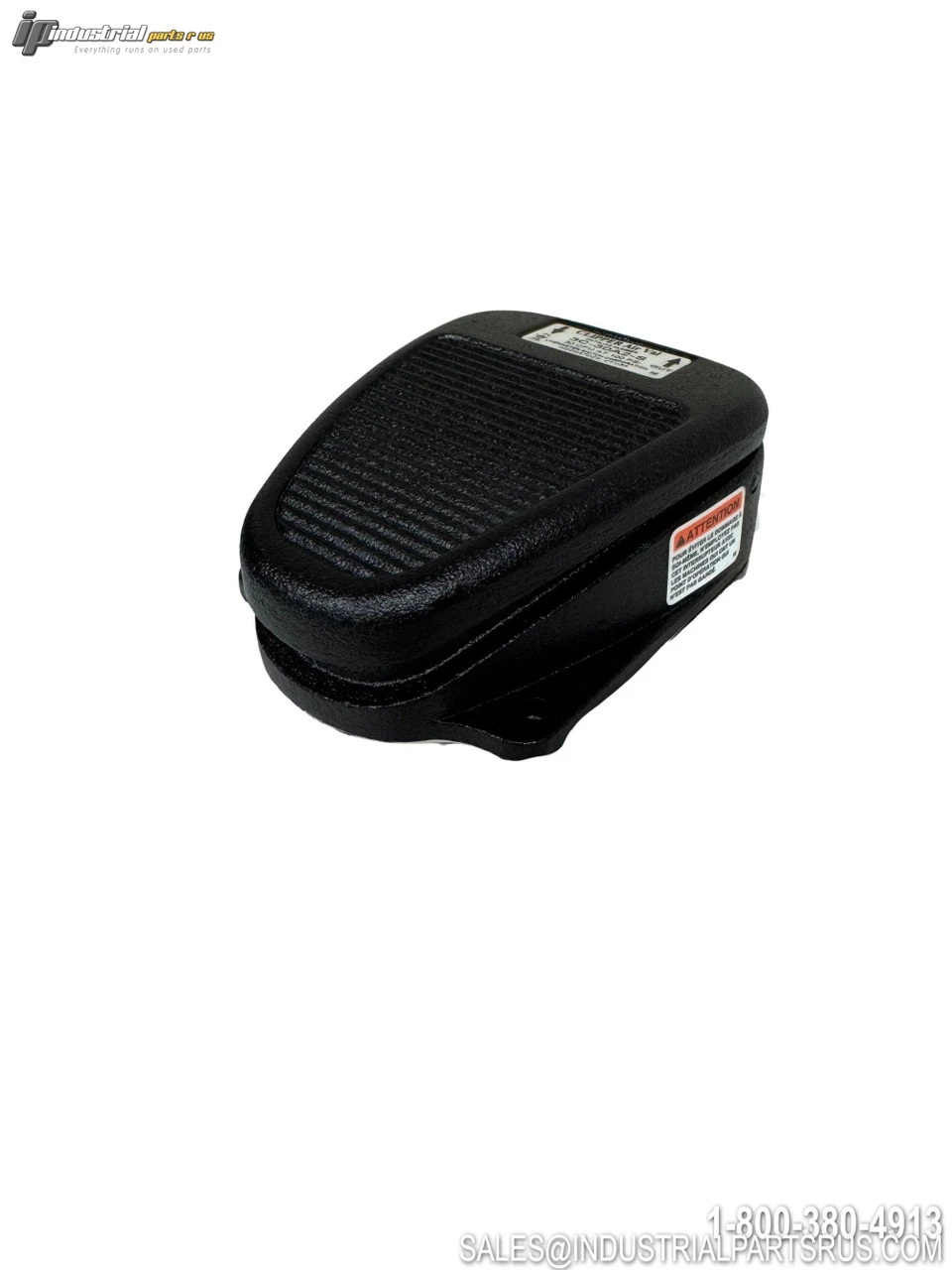

NEW LINEMASTER AIRVAL 3C-30A2-S

The LineMaster AIRVAL 3C-30A2-S is a Clipper Series single-stage, 3-way momentary pneumatic foot switch featuring a rugged cast iron housing and an interior-ported valve assembly. It is a 3-way 1NO foot switch with rugged cast iron housing and air exhausts around the plunger; the internal valve is constructed of a non-ferrous body, stainless steel plunger, and PTFE-coated Buna-N O-rings. Air flows when the plunger is depressed, stops flowing when the plunger is released and exhausts back pressure on the output side, and the plunger can be depressed flush with the valve body without damage to the valve.
Specification
Value
Brand
LineMaster
Model / Part Number
AIRVAL 3C-30A2-S
Manufacturer Series
Clipper
Type
Pneumatic AirVal Foot Switch
Control Function
3-Way Momentary
Stage
Single Stage
Construction Style
Open, General Purpose
Air Flow (at 100 PSI)
30 CFM
Exhaust (at 100 PSI)
25 CFM
Max Line Pressure
150 PSI
Operating Force
10 lbs
Port Size
1/8-27 NPT (Input & Output)
Port Style
Interior Housing
Housing Material
Cast Iron, Black Painted
Valve Body Material
Non-Ferrous
Plunger Material
Stainless Steel
O-Ring Material
PTFE-Coated Buna-N (Nitrile)
Actuator Type
Plunger
Suitable Media
Filtered Air (filtered & lubricated required)
Dimensions (W x L x H)
3.45 x 4.56 x 1.78 in (87.6 x 115.8 x 45.2 mm)
Temperature Rating
0 to 131°F (-18 to 55°C)
Mounting
Non-Skid Base, 2 Mounting Holes
Replacement Interior Valve
3-30A2-SI
We warranty all items for 30 days from date of purchase.
