USED 2008 MIKRON UCP 600 VARIO
Overview
2008, 7-Station System 3R Dynafix Pallet Pool

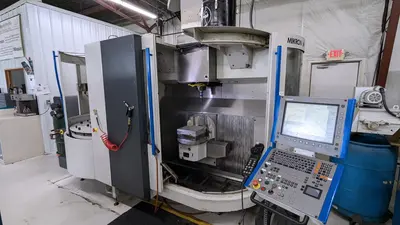

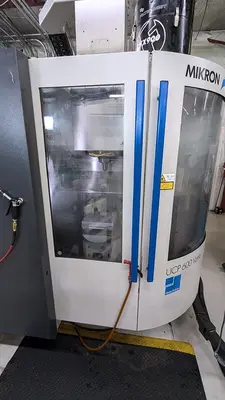

The Mikron UCP600 Vario 2008 is a high-precision 5-axis CNC vertical machining center engineered for producing complex, tight-tolerance components. Ideal for aerospace, medical, automotive, mold making, and watchmaking industries, it excels at machining intricate engine parts, surgical implants, injection molds, precision tooling, and micro-mechanical components with exceptional accuracy and reliability.
Specs
RPM: 20,000
Spindle: 40HP HSK63A steptec
ATC: 30 tool ATC
X-Axis Travel: 24" (600 mm)
Y-Axis Travel: 17.7" (450 mm)
Z-Axis Travel: 17.7" (450 mm)
B-AXIS Rotation: +30° / -115°
C-Axis Rotation: 360° Continuous

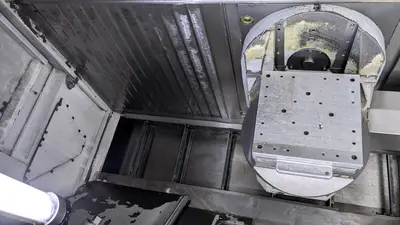

Table Diameter: 15.75" (400 mm)
Maximum Workpiece Diameter: Approx. 24" (600 mm)
Maximum Workpiece Height: Approx. 17.7" (450 mm)
Maximum Table Load: 440 lbs (200 kg)
Rapid Traverse: 1,600 ipm (40 m/min)
Positioning Accuracy: ±0.0002" (with glass scales)
Repeatability: ±0.0001"
Equipped With
X/Y/Z glass scales
B/C rotary encoders
3D touch probe
Blum laser tool presetter
1000psi coolant through spindle

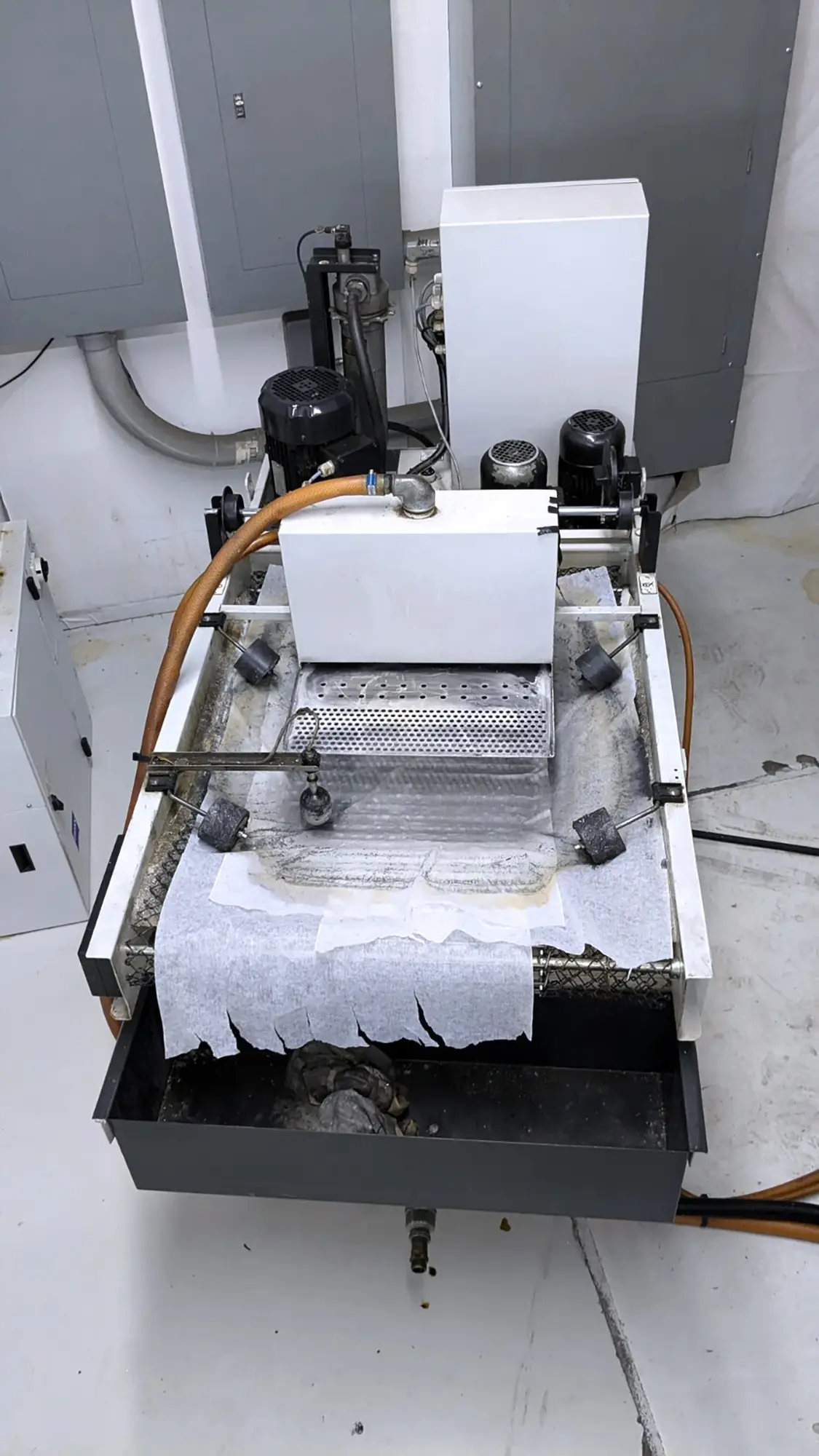

172 gallon band filter coolant tank
High capacity chip conveyor
MQL system
Oil mist extractor
External spindle chiller
400V transformer
Blum calibration tool
All documents and parameter backups
