USED 2022 QUICKTECH T8 HYBRID

Live Milling/Drilling Capability
BMT Style Turret Tooling
Subspindle
Gang Tooling Slide - 360 Degree B Axis
C Axis Spindle Rotation Both Spindles
Y Axis Capability
Collet Chuck on Main Spindle
Collet Chuck on Subspindle
Automatic Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Rigid Tapping
Remote Jog Handle
USB Port Interface
RS 232 Port Interface

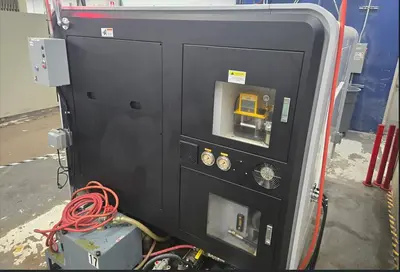

Complete Coolant System with Tank & Pump
All Available Tooling
All Available Manuals

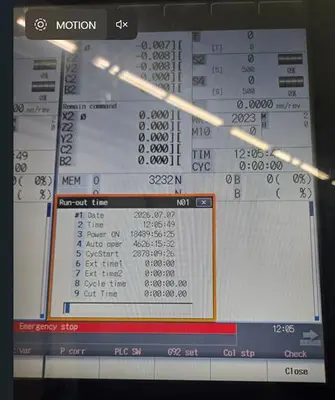

**Machine Operation Hours 4,626**
**Machine Cycle Start Hours 2,878**

**Machine is in excellent condition and can be inspected under power**

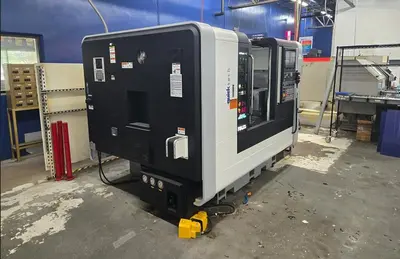

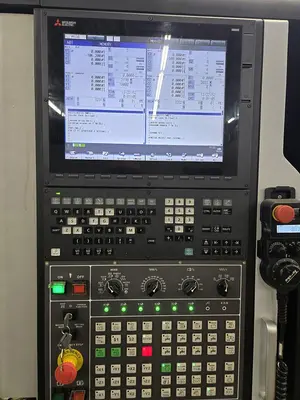

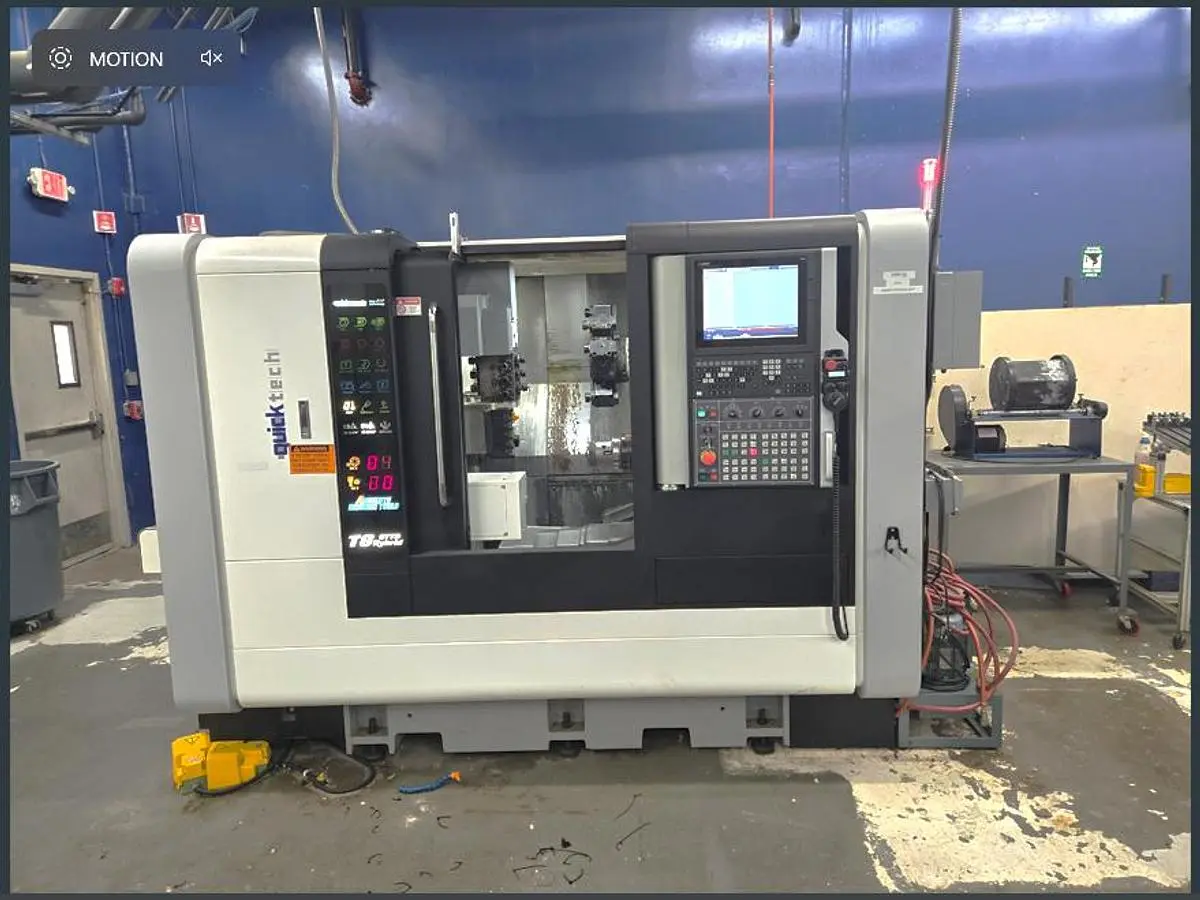

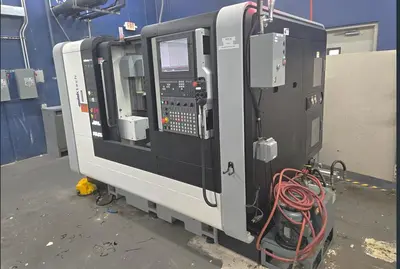

The 2022 Quicktech T8 Hybrid Lathe offers advanced performance with its 9-axis capability, integrating milling and drilling functions. Equipped with a Fanuc 0i-TF control, it is ideal for complex machining tasks, featuring a main and subspindle with collet chuck types. The machine offers a generous maximum swing over the bed of 19.7 inches and a machining length of 13.8 inches, suitable for various industrial applications.

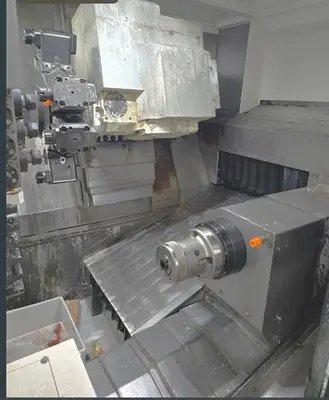

The lathe's primary spindle supports up to 2.56 inches of bar capacity and achieves a speed of 3,000 RPM, while the subspindle handles 1.26 inches at a higher 4,000 RPM. It's powered by a robust 15 HP main spindle motor and a 7.5 HP subspindle motor, ensuring reliable performance. The tool turret holds up to 12 positions, and the rotating gang slide provides up to 26 tool positions, offering versatility in machining operations.

Designed for efficiency, the machine features a barfeed, parts exit conveyor, and chip conveyor, enhancing workflow and productivity. With dimensions of 110" x 81" x 86" and weighing 13,420 lbs, this used unit remains a substantial asset for businesses seeking to upgrade their machining capabilities.
