Used Alit 32-Tier Spiral Freezer with Compressor – Stainless Steel Food Processing Spiral Freezing System

Used Equipment Facts About This Machine
Manufacturer
Alit manufactures industrial spiral freezing systems designed for continuous freezing of food products in high-capacity processing facilities. Alit spiral freezers are engineered to maximize production throughput while minimizing floor space, making them ideal for food processors requiring efficient cryogenic or mechanical freezing solutions.

Description
The Used Alit 32-Tier Spiral Freezer is a heavy-duty stainless steel continuous spiral freezing system designed for freezing a wide range of food products while maximizing production within a compact footprint. Previously operated in a food processing application, this freezer maintains an ambient operating temperature of -40°C (-40°F) to rapidly freeze products while preserving quality, texture, and appearance.

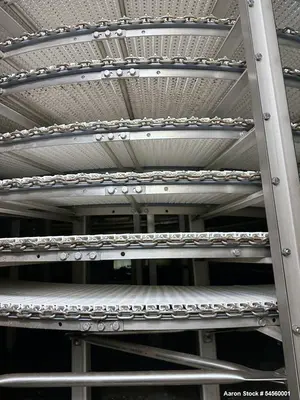

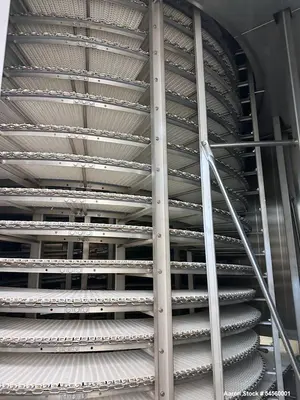

The freezer features a 32-tier spiral conveyor with a 375 mm (14.7-inch) belt width and 345 mm (13.6-inch) effective belt width. The spiral conveyor provides approximately 198 meters (650 feet) of total belt length, with approximately 192 meters (630 feet) of usable conveying length, allowing extended product residence time for efficient freezing.
Variable belt speeds ranging from 8 to 12 meters per minute (26–39 feet per minute) provide flexibility to accommodate various products and production rates. The freezer incorporates 140 mm tier spacing, 80 mm free space between tiers, and accommodates products up to 70 mm (2.75 inches) in height.

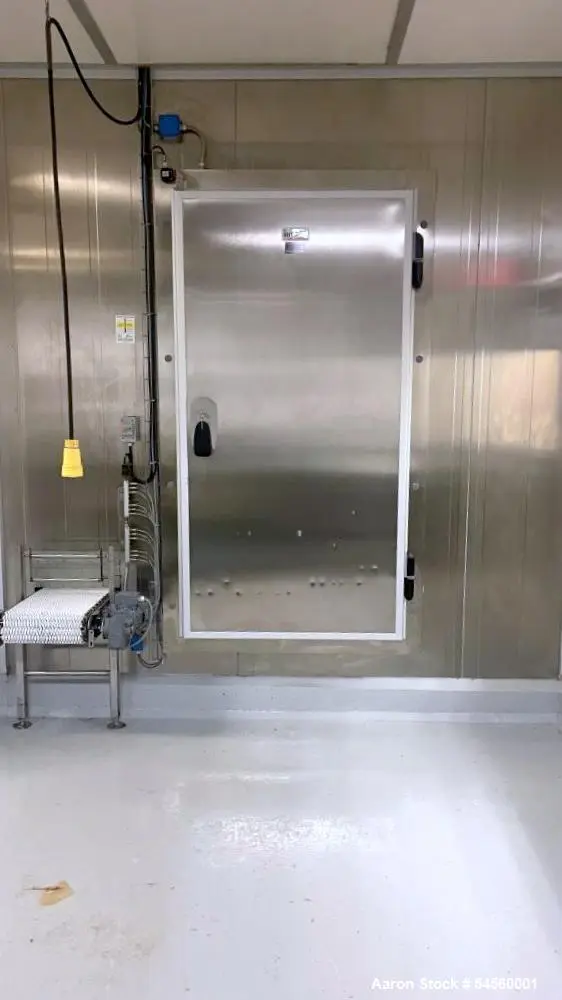

The insulated enclosure features 100 mm thick insulated panels, two large access doors (90 x 185 cm), and a compact footprint of approximately 21 ft. 4 in. × 8 ft. 5 in. The package includes a compressor, making it a complete freezing solution ready for installation.

Specifications

Specification
Details

Manufacturer
Alit

Equipment Type
Spiral Freezer

Construction
Stainless Steel

Number of Tiers
32

Previous Service
Food Processing

Operating Temperature
-40°C (-40°F)

Belt Width
375 mm (Approx. 14.7 in.)

Effective Belt Width
345 mm (Approx. 13.6 in.)

Total Belt Length
Approximately 198 m (650 ft.)

Usable Belt Length
Approximately 192 m (630 ft.)

Belt Speed
8–12 m/min (Approx. 26–39 ft./min)

Tier Center Distance
140 mm

Free Space Between Tiers
80 mm

Maximum Product Height
70 mm

Inlet/Outlet Position
Low Inlet / Low Outlet

Insulated Panel Thickness
100 mm

Access Doors
Two (2) – 90 × 185 cm

Overall Footprint
Approximately 21 ft. 4 in. × 8 ft. 5 in.

Electrical Power
3 kW

Electrical Service
3 Phase, 60 Hz, 575 Volt

Refrigeration
Includes Compressor

Year Manufactured
2005

Condition
Used

Applications
This spiral freezer is commonly used for:

Frozen food production
Poultry processing
Meat processing
Seafood processing
Bakery products
Prepared meals
Pizza manufacturing
Fruit freezing
Vegetable freezing
Dairy products
Snack food production
Food contract manufacturing

Common Products Frozen

Chicken products
Beef patties
Seafood
Shrimp
Fish fillets
Pizza
Bread
Pastries
Vegetables
Fruits
Ready meals
Snack foods

Features & Benefits

Continuous 32-tier spiral freezing system
Stainless steel sanitary construction
Designed for food processing applications
-40°C (-40°F) operating temperature
Approximately 650 feet of conveyor belt
Adjustable belt speed from 8–12 m/min
Compact footprint with high production capacity
Low product inlet and outlet design
100 mm insulated wall panels
Two large access doors for maintenance
Includes refrigeration compressor
Efficient space-saving spiral conveyor design

Frequently Asked Questions
What products can this spiral freezer process?
The freezer is suitable for poultry, meat, seafood, bakery products, prepared meals, fruits, vegetables, pizzas, snack foods, and many other frozen food products.
What is the operating temperature?
The system is designed to operate at an ambient temperature of approximately -40°C (-40°F) for efficient continuous freezing.
Does the freezer include refrigeration equipment?
Yes. This package includes the compressor, providing a more complete freezing system for installation.
How long is the conveyor belt?
The spiral conveyor has approximately 198 meters (650 feet) of total belt length, with approximately 192 meters (630 feet) of usable conveying length.
What is the maximum product height?
The freezer accommodates products up to approximately 70 mm (2.75 inches) in height.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment provides complete domestic and international shipping services, including heavy-haul transportation, export documentation, rigging coordination, and logistics support for industrial refrigeration and food processing equipment.
