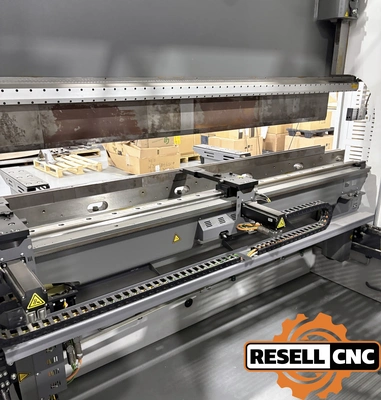

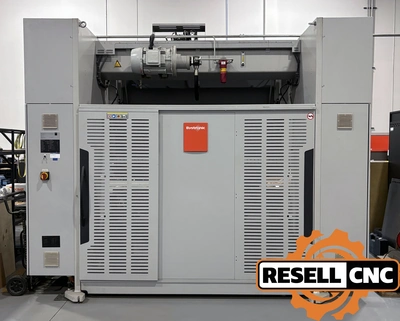

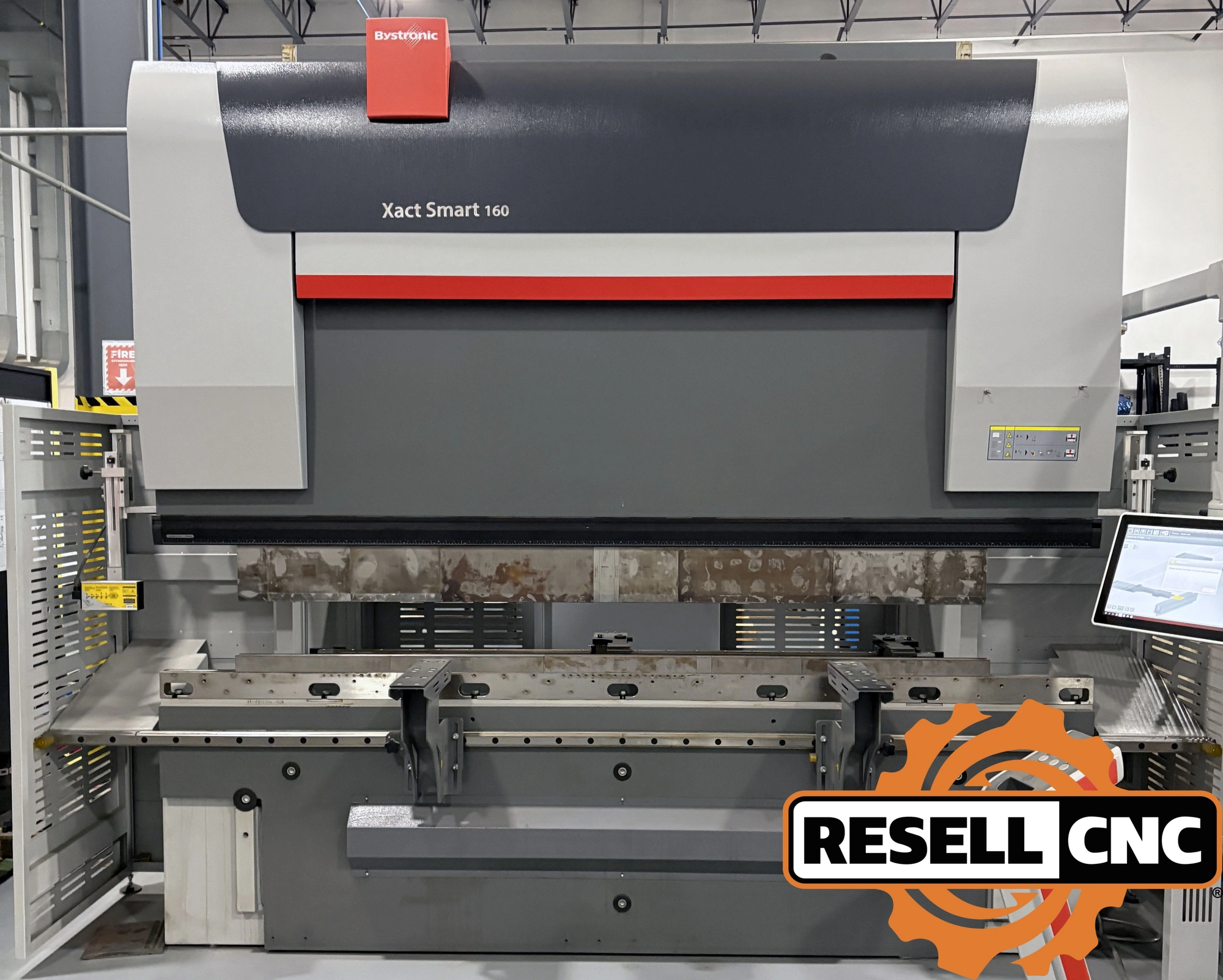

USED 2021 Bystronic Xact Smart 160/3100

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Bending Length: 122.05"

Open Height: 18.9"

Distance Between Side Frames: 96.46"

Throat: 15.75"

Table Width: 2.36"

X-Axis Max. Back Gauge Range: 33.46"

X-Axis Travel: 23.62"

X-Axis Speed: 1417 IPM

X-Axis Position Accuracy: 0.05 mm

R-Axis Travel: 5.91"

R-Axis Speed: 472 IPM

R-Axis Position Accuracy: 0.05 mm

Z-Axis Travel: 72.05"

Z-Axis Speed: 2362 IPM

Max Y-Axis Approach Speed: 331 IPM

Max Y-Axis Working Speed: 30.7 IPM

Y-Axis Position Accuracy: 0.00039"

Oil Capacity: 66 Gal.

Main Motor Power: 14.75 HP

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Stroke: 7.87
Sub Spindle: false
Tailstock: false
Tonnage: 179.0
Twin Turret: false
Y Axis: false
