USED MITSUBISHI FX 10

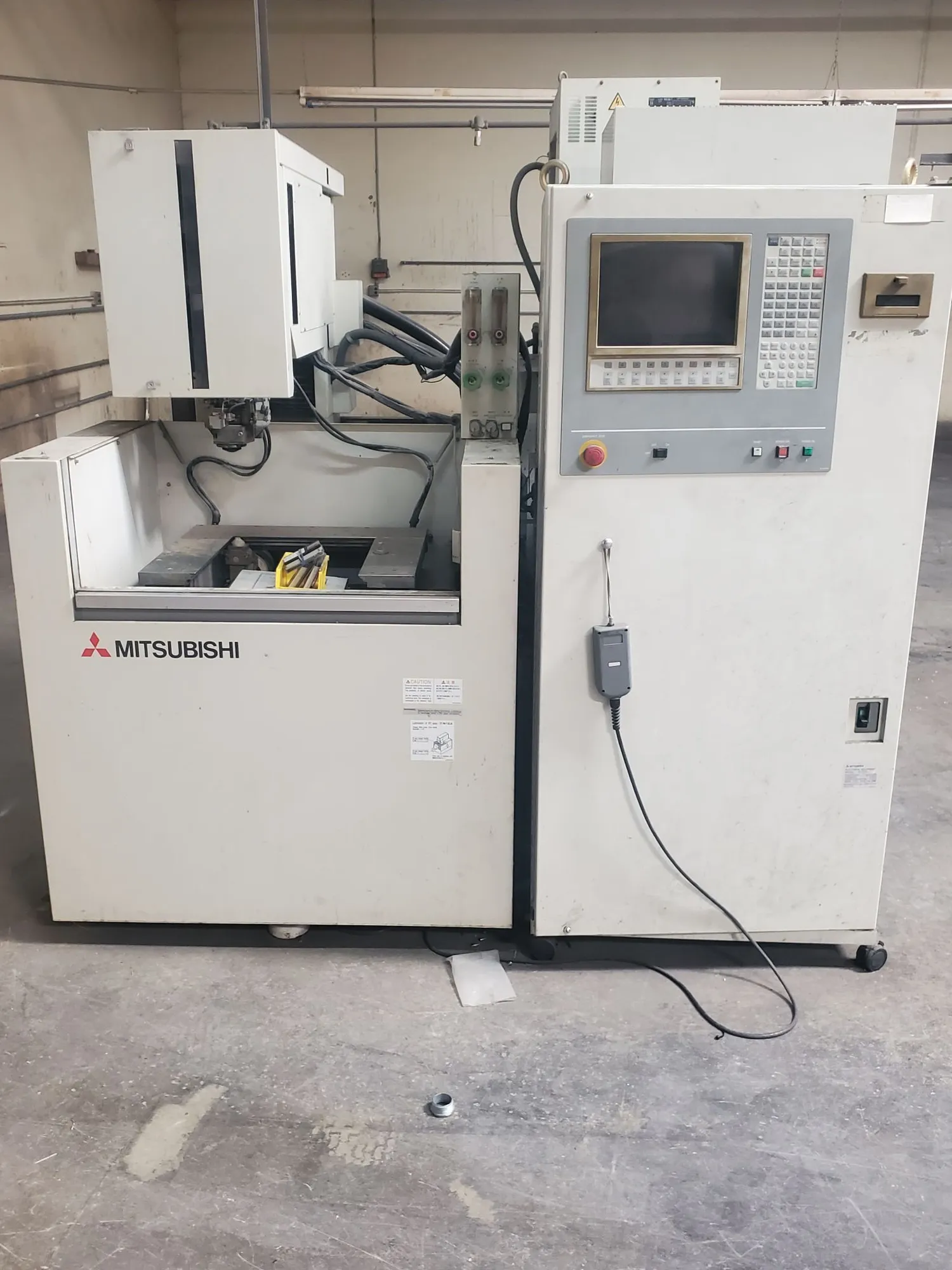

MITSUBISHI FX 10 CNC Wire Electrical Discharge Machine #8289 #1

Travel & Capacity
X-Axis Travel: 13.77 in (350 mm)
Y-Axis Travel: 9.84 in (250 mm)
Z-Axis Travel: 8.66 in (220 mm)
U/V Axis Travel: 1.25 in x 1.25 in (± 32 mm)
Max Workpiece Size: 31.5 in x 22.65 in x 8.45 in
Max Workpiece Weight: 1,168 lbs (500 kg)
Table Size: 24.8 in x 20.8 in

Wire & Taper Specifications
Wire Diameter Range: 0.0078" to 0.011" (0.2 mm to 0.3 mm)
Max Wire-Feed Rate: 590.55 in/min
Taper Capacity: ± 15° at 4 inches of thickness

Physical & Utility Specifications
Dielectric Tank Capacity: 400 liters (105.7 gallons)
Machine Footprint: 53" x 75" x 75"
Machine Weight: Approximately 4,000 lbs.

Key Features
Mitsubishi 32-bit CNC Control & power supply
Submersible cutting capability
Automatic Wire Threader (AWT)
Wire chopper and auto-tank door
Built-in dielectric chiller unit and filtration system
