USED 2007 HAAS VF-3YT/50
Overview

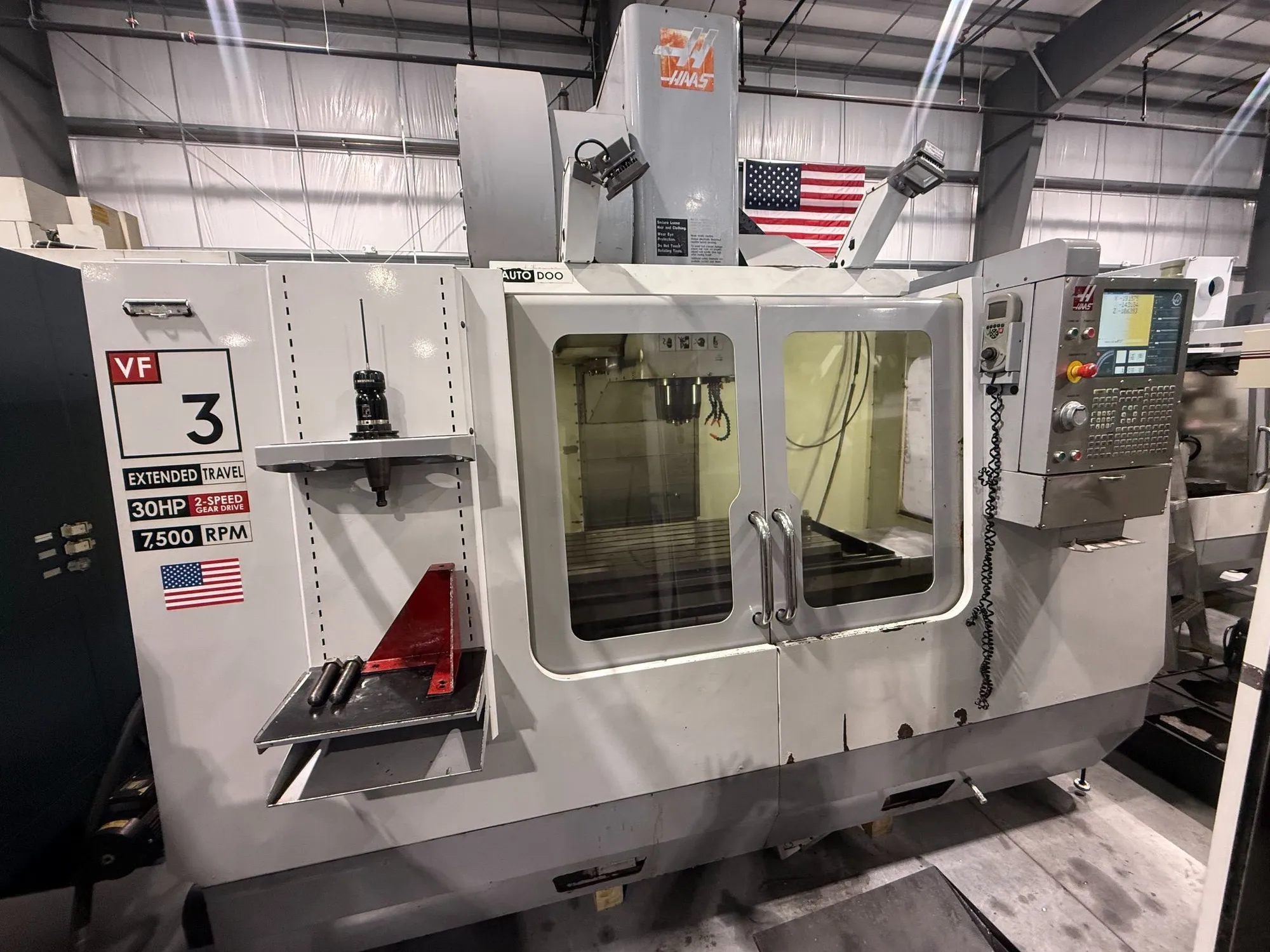

HAAS VF-3YT/50 CNC Vertical Machining Center 2007’ Probing USA #8411
Specs
HAAS VF-3YT/50 CNC Vertical Machining Center 2007’ Probing USA #8411
Reference # 8411
Model # VF-3YT/50
Serial # 1061237
Year of manufacture- 10/2007’
Table working surface- 23" x 52"
Maximum weight on table- 4,000 Lbs.
Table travel, X-axis (longitudinal)- 40”
Table travel, Y-axis (cross)- 26”
Vertical column travel (Z-axis)- 25”
Minimum/Maximum distance, spindle nose to table- 7.9"/32.9"
Spindle taper- CAT-50
Spindle speeds- 0 to 7,500 R.P.M.
Rapid traverse rate, all axes- 710 I.P.M.
Cutting feed rate, all axes- up to 500 I.P.M.
Maximum tool diameter- 4”
Maximum tool weight- 30 Lbs.
Equipped With
HAAS four-axis CNC control with manual pulse generator, USB drive (on pendant), RS-232 port
Control Options- HSM High Speed Machining, Rigid tapping, Rotation & Scaling, DNC, M19 Spindle Orient, Macros, Quick code, Pre-Orient Tap, Advanced tool management, Expanded memory
Renishaw Probing & Probe & Table Laser
2 Speed gear box option
All cast iron construction
Brushless servo amplifiers and servo motors on all axes
Prewired for the 4th axis
Side mount tool changer 30 tool capacity
Programmable coolant nozzle
Telescopic way covers
Auto Door option
High intensity lighting option
Automatic lubrication system
External coolant pump and tank
Chip auger
Chip conveyor
30 H.P. Vector spindle drive
Machine hours- Servo Time 2,708 Motion Time 21,775 Spindle Time 20,347
Machine is wired for 208 volt operation / 3 phase / 60 H.Z.
Machine weight- 16,500 Lbs.
Machine dimensions- 124” L x 106” W x 109’’ H
Machine location- F.O.B. Sarasota, Florida
