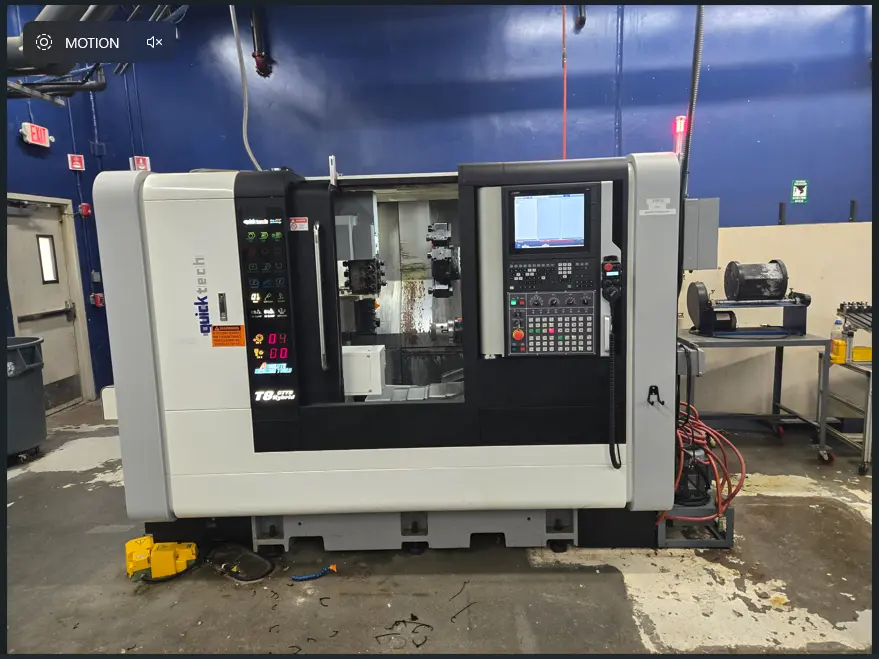

USED 2022 QUICKTECH T8 Hybrid
Overview
T8 Hybrid 9-Axis Twin Spindle Turn/Mill Center with combination turret and B axis gang slide. The QuickTECH T8 Hybrid is a high-end multitasking CNC turning center designed to complete complex parts in a single setup. It combines a BMT power turret, 360° B-axis gang tooling, twin spindles, and dual live milling spindles, allowing simultaneous machining on the main and sub-spindles. The Flexible Duo System can run two programs at once. Machine comes with: collet chucks, 3) live toolholders, and a full compliment of static holders.
Specs
General Specifications
Specification Value
Machine Type 9-Axis Twin-Spindle CNC Mill/Turn Center
CNC Control Fanuc 0i-TF (typical North American configuration)
Main Spindle Motor 15 HP (11 kW)
Main Spindle Speed 4,000 RPM
Main Chuck 8" 3-jaw or 60 mm collet
Main Bar Capacity 65 mm (2.56") with chuck / 60 mm with collet
Main Spindle Nose A2-6
Sub-Spindle Motor 7.5 HP
Sub-Spindle Speed 4,000 RPM
Sub-Spindle Nose A2-5
Sub-Spindle Bar Capacity 32 mm (1.26")
Maximum Turning Diameter 11.8" (300 mm)
Maximum Turning Length 13.8" (350 mm)
Distance Between Centers 20" (508 mm)
Swing Over Bed 19.7" (500 mm)
Equipped With
9 Axis (X1, Y1, Z1, C1, X2, Y2, C2, B-Axis
Collet Chucks
3) Live Toolholders and a Full Compliment of Static Holders
Twin Spindle
Mitsubishi CNC Control
Standard Features
Twin opposed spindles
Simultaneous machining (Flexible Duo System)
True Y-axis machining
Full 360° programmable B-axis
C-axis interpolation on both spindles
Rigid tapping
Automatic lubrication
Bar feeder interface
