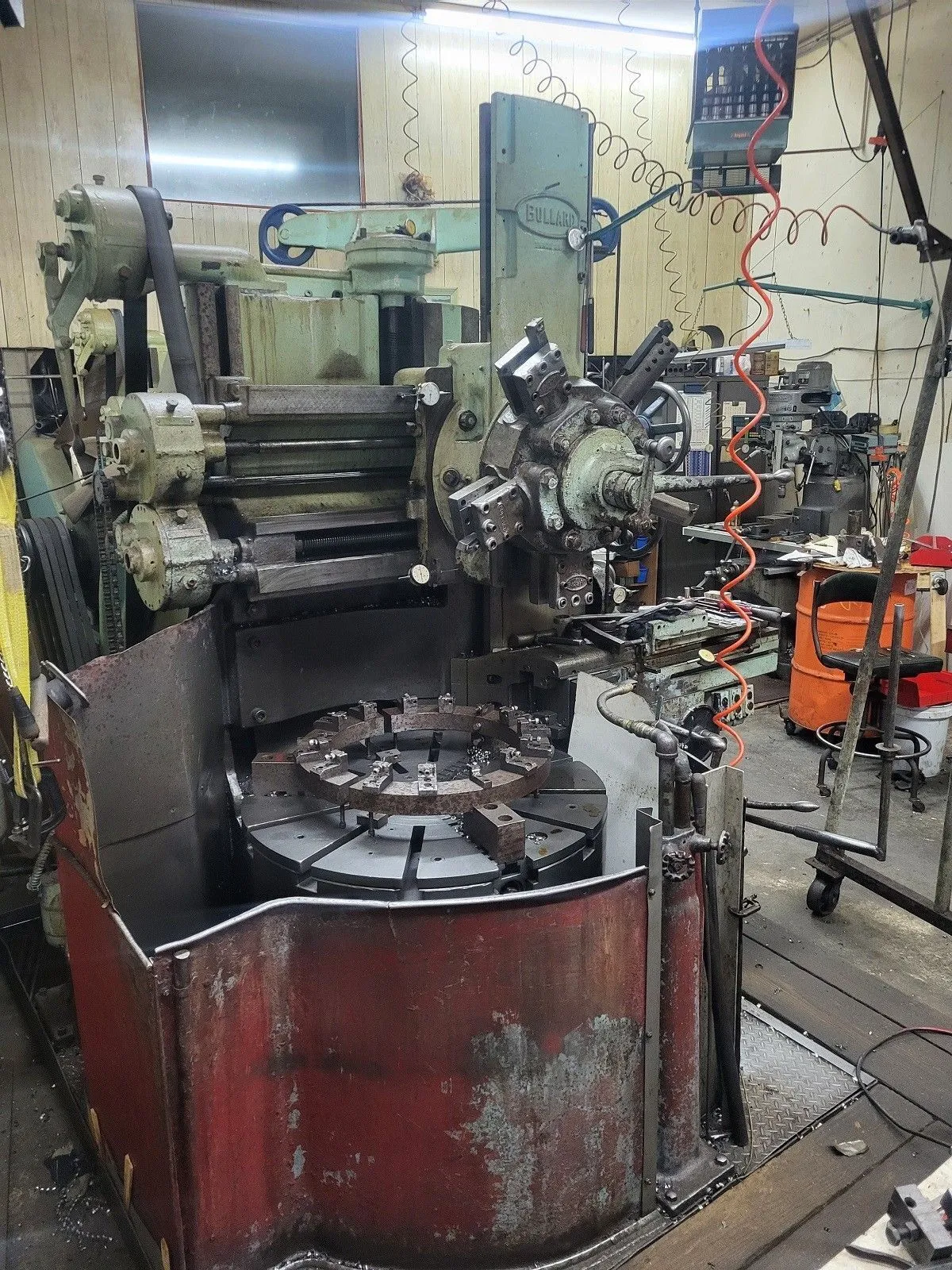

USED 1941 BULLARD 36 SPIRAL DRIVE

Table Size...........................................34"3-Jaw
Swing Maximum Side Head Below Table..................44"
Swing Maximum Side Head Above Table..................39"
Table Speed..........................................10 To 70 Rpm's
Height Under Rail....................................25-1/2"
Side Head Travel In & Out Horizontal.................21"
Side Head Travel Up & Down...........................30"
Maximum Distance Side Head Above Table...............22"
Turret Head Travel Left To Right.....................21"
Turret Ram Head Turret Travel Up & Down..............24"
Turret Head Position.................................5
Feeds Turret Head....................................0.002 To 0.500 I.P.R.
Feeds Side Head......................................0.002 TO 0.068
Main Motor...........................................20 HP 220 /440 Volts
Machine Floor Space..................................R-L 90" X F-B 100"
Machine Height.......................................109"
Machine Weight.......................................16,000 Lbs.
Turret Head Swivel...................................Yes

Note:
Turret & side head gear boxes will be reconditioned.
Spindle & transmission will be checked.
Oil will be drained and tanks will be cleaned.
Side will be removed and check and cleaned.
Chuck jaws will be removed and taken apart and cleaned.
New electric motors and gear boxes for turret rapid traverse left to right
and up and down.
New electric motor for rail elevation and gear box complete with electrics.
New Nut & Screw Cross Slide.
New electrics with exception of main breaker.
New bearing in main motor.
New belts
Machine will be cleaned, painted and cycled.
Price With Above Option Complete: $49,500.00
Optional:
New Newall 2 Axis D.R.O. On Turret Head $4,850.00 Installed
New Newall 2 Axis D.R.O. On Side Head $3,850.00 Installed
