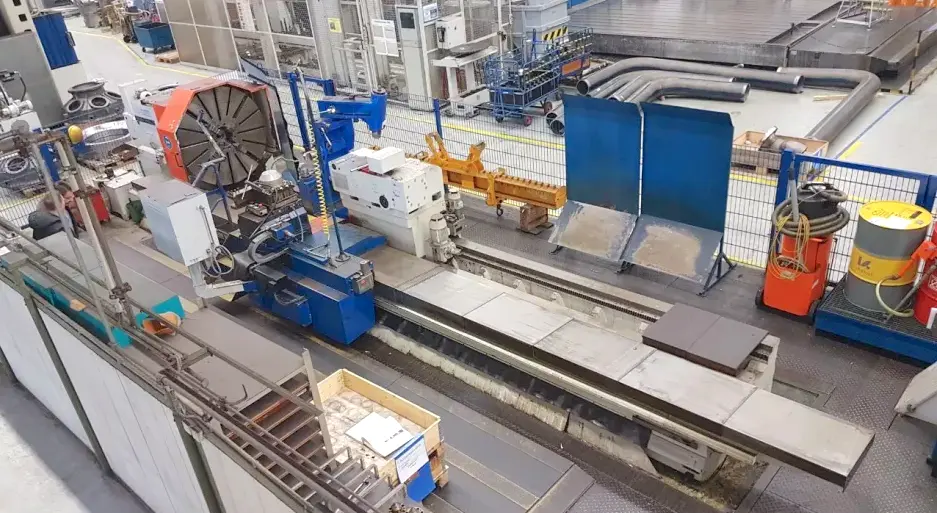

USED SAFOP LEONARD 60 D

Guide-ways number: 4
Bed width: 1300 mm51,18 in
Notes: altezza banco 630mm
Guide-ways number: 4 mm0,16 in
Max weight between centres: 18.000 Kg
Max weight on steadies: 23.000 Kg
CNC: Siemens Sinumerik
Spindle nose: ASA15”
Spindle hole: 80 mm3,15 in
Max power: 80 Kw
Max torque: 39000 Nm
Gearbox: - first speed range 5-150 U/min - second speed range 10-300 U/min - third speed range 20-600 U/min
Max rotation speed: 5-600 rpm
Internal bearing diameter: 260 mm10,24 in
Quill diameter: 230 mm9,06 in
Quill stroke: 300 mm11,81 in
Rapid feed B: 1,4 m/min55,12 ipm
Centres distance: 5000 mm196,85 in
Centres height: 780 mm30,71 in
Longitudinal (Z): 5000 mm196,85 in
Cross (X): 640 mm25,20 in
Max turning lenght: 5000 mm196,85 in
Max diameter on the bed: 1380 mm54,33 in
Max swing on saddle: 1200 mm47,24 in
Bar passage: 80 mm3,15 in
Positions number: 4
Machine total weight: 33000 Kg
Hydraulic steady: 2
Autocentering chuck: ø1000 4 griffe
Platform: ø1000mm 4 griffe
Chip conveyor: si
Availability: pronta
