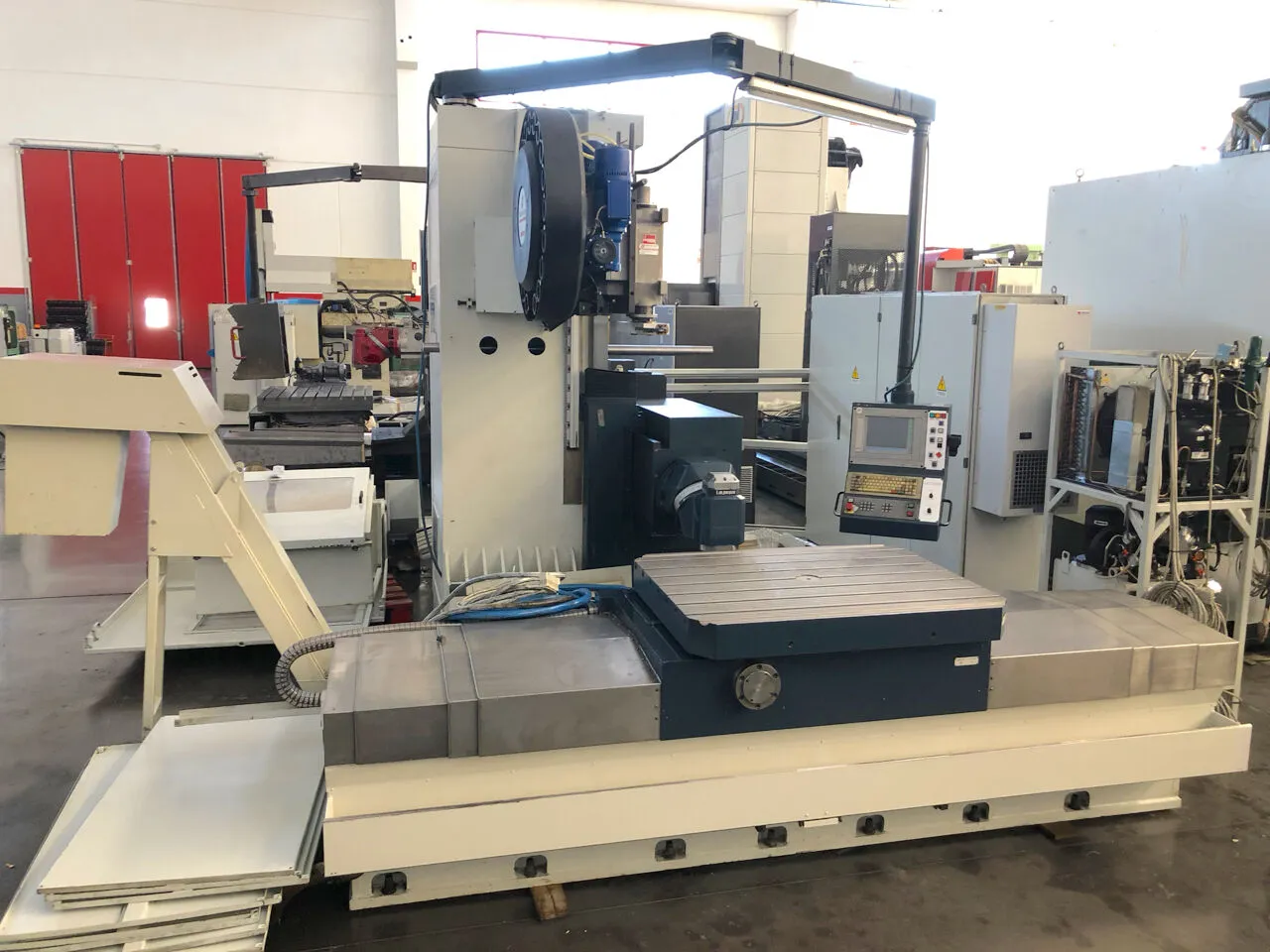

USED PARPAS SL90/2000 TR

Longitudinal (X): 2000 mm78,74 in
Vertical (Y): 1100 mm43,31 in
Cross RAM (Z): 1000 mm39,37 in
CNC: SELCA 3045PD
Spindle power: 22/33 Kw
Rotating speed: 5000 Rpm
Taper: ISO50 DIN69871
Rapid X: 10 m/min393,70 ipm
Rapid Y: 10 m/min393,70 ipm
Rapid Z: 10 m/min393,70 ipm
Surface: 1250x1000 mm49,21x39,37 in
Accuracy (B axis): 360.000 °
Capacity: 7.000 Kg
Type: TU600
Spindle taper: ISO50 DIN69871
A axis: 2x180 °
C axis: 144x2,5 °
Max speed: 5000 Rpm
Max power: 33 Kw
Positions: 20
Max tool diameter: 125 mm4,92 in
Max diam with free adiacent space: 250 mm9,84 in
Max tool lenght: 350 mm13,78 in
Housing: protezioni frontali scorrevoli
Chiller: si
Machine total weight: ≈15.000 Kg
Floor space: 4600x4900x3300 mm181,10x192,91x129,92 in
Chip conveyor: 2
Workpiece touch probe: si
Filtration unit: coolant tank with paper filter
Availability: pronta
Available in stock: SI
Tooling included: volantino remotato
