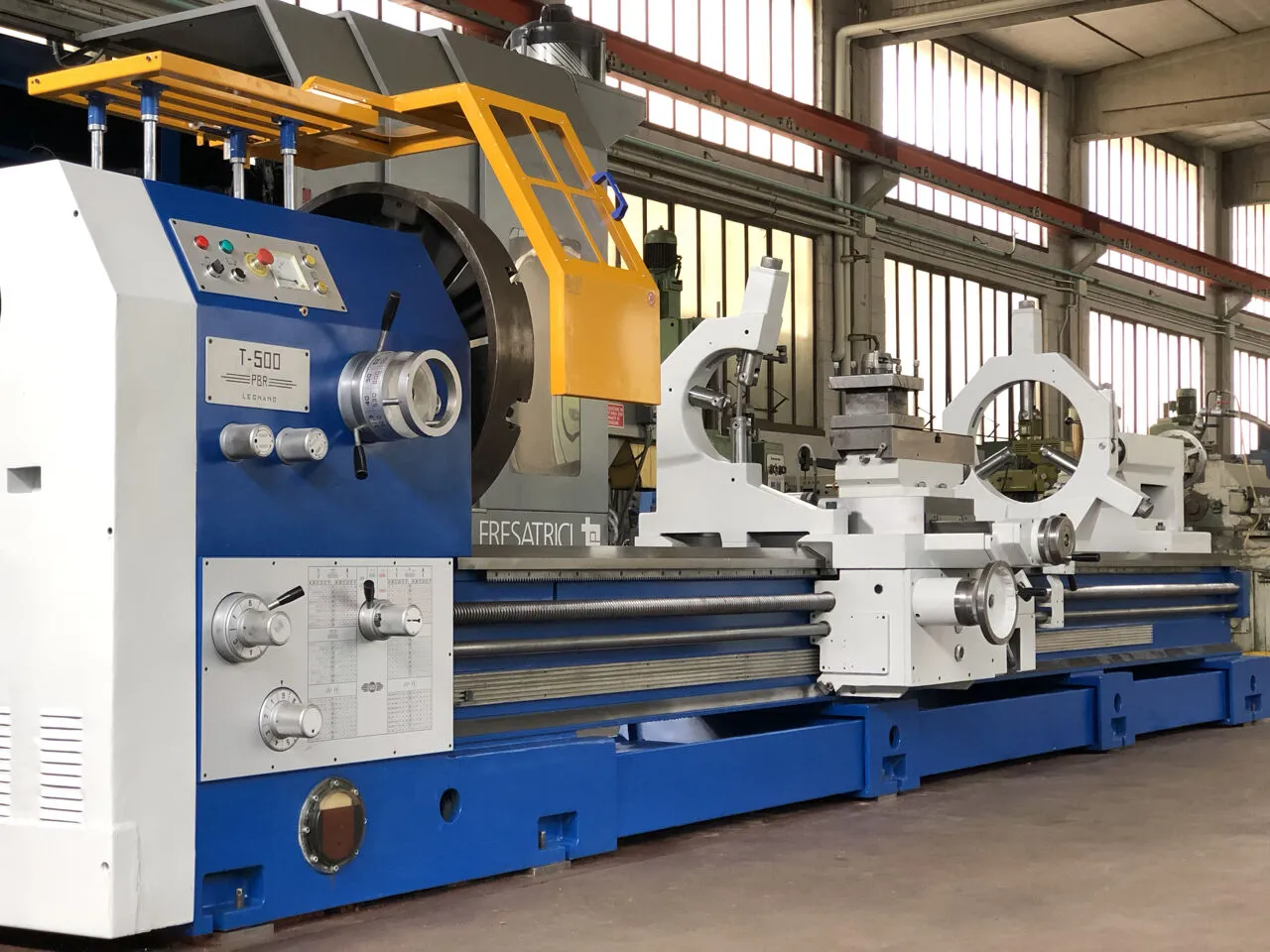

USED PBR T500 500X5000MM

Centres distance: 5030 mm198,03 in
Centres height: 500 mm19,69 in
Longitudinal (Z): 5000 mm196,85 in
Max turning lenght: 5000 mm196,85 in
Max diameter on the bed: 1050 mm41,34 in
Bar passage: 150 mm5,91 in
Max swing on saddle: 690 mm27,17 in
Max swing in the gap: 1300 mm51,18 in
Notes: rapidi
Max weight between centres: 6000 Kg
Spindle speed: 4-800 Rpm
Spindle power: 22 Kw
Spindle torque: 8000 Nm
Spindle taper: ASA15”
Taper: M.K.6
Saddle Width: 1020 mm40,16 in
X stroke: 640 mm25,20 in
Max swing diam on saddle: 1070 mm42,13 in
Z rapid feed: 5000 mm/min196,8500 ipm
X rapid feed: 2500 mm/min98,4250 ipm
Machine total weight: 10000 Kg
Open steadies: SI
Closed steadies: SI
Autocentering chuck: SI-500 mm
Platform: SI - 900mm
Availability: PRONTA
Floor space: 7470x1720x1560 mm294,09x67,72x61,42 in
