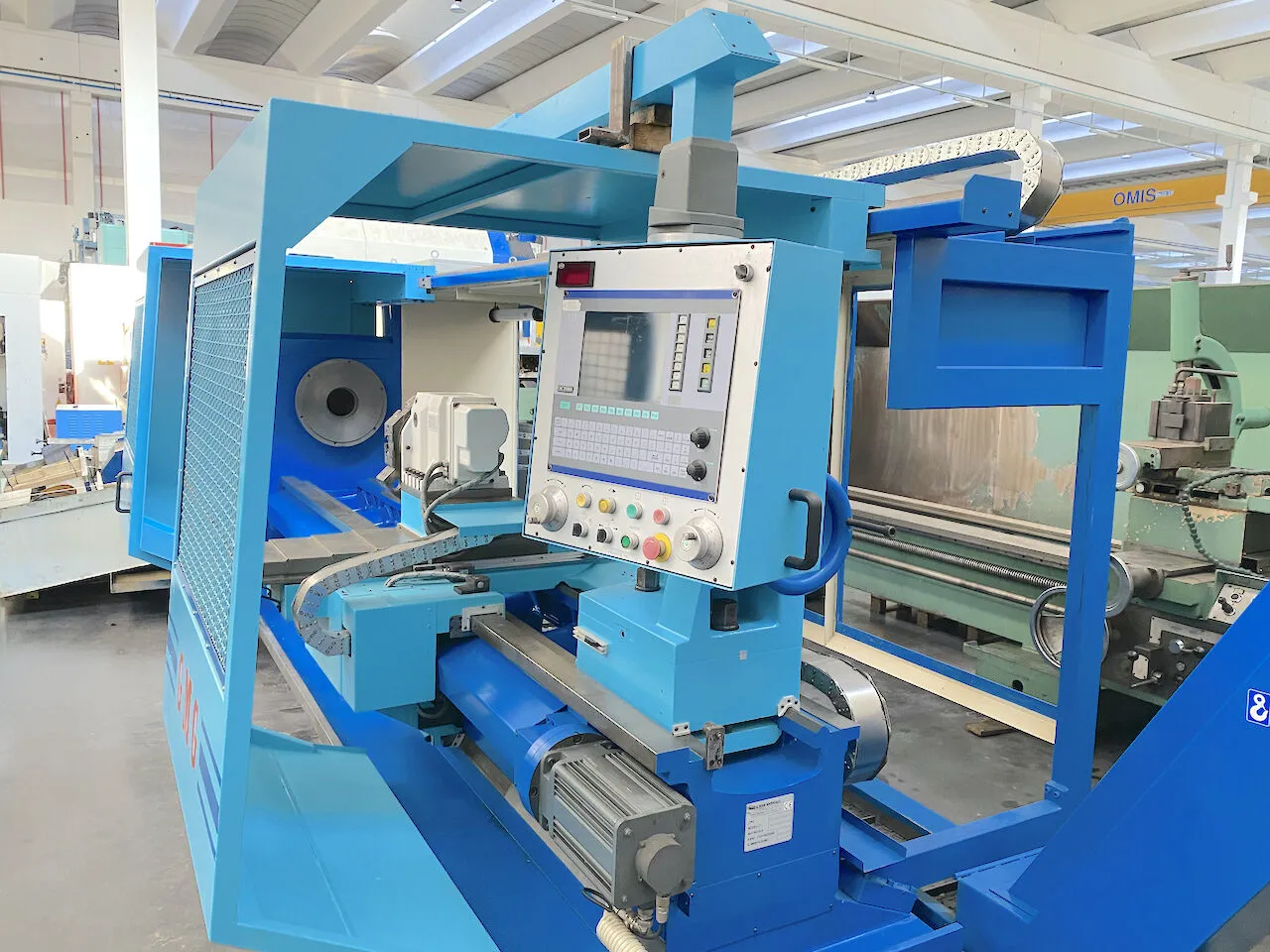

USED GMG MASTER

Max bar working diameter: 155
Max swing on saddle: 620 mm24,41 in
Max working lenght: 3000 mm118,11 in
Guide-ways number: 2+1 mm0,08+0,04 in
Max swing on the bed: 940 mm37,01 in
CNC: ECS 1402D
Drives: Fagor
Max rotation speed: 1500 rpm
Spindle nose: CL11”
Spindle hole: 155 mm6,10 in
Max power: 30 Kw
Gearbox: 4 gamme automatiche
Quill diameter: 120 mm4,72 in
Quill stroke: 300 mm11,81 in
Taper: CM6
Positions number: Baruffaldi 8 posizioni
Availability: PRONTA
Closed steadies: 1 x ø420mm
Chip conveyor: si
Protections: doppio portellone anteriore scorrevole
