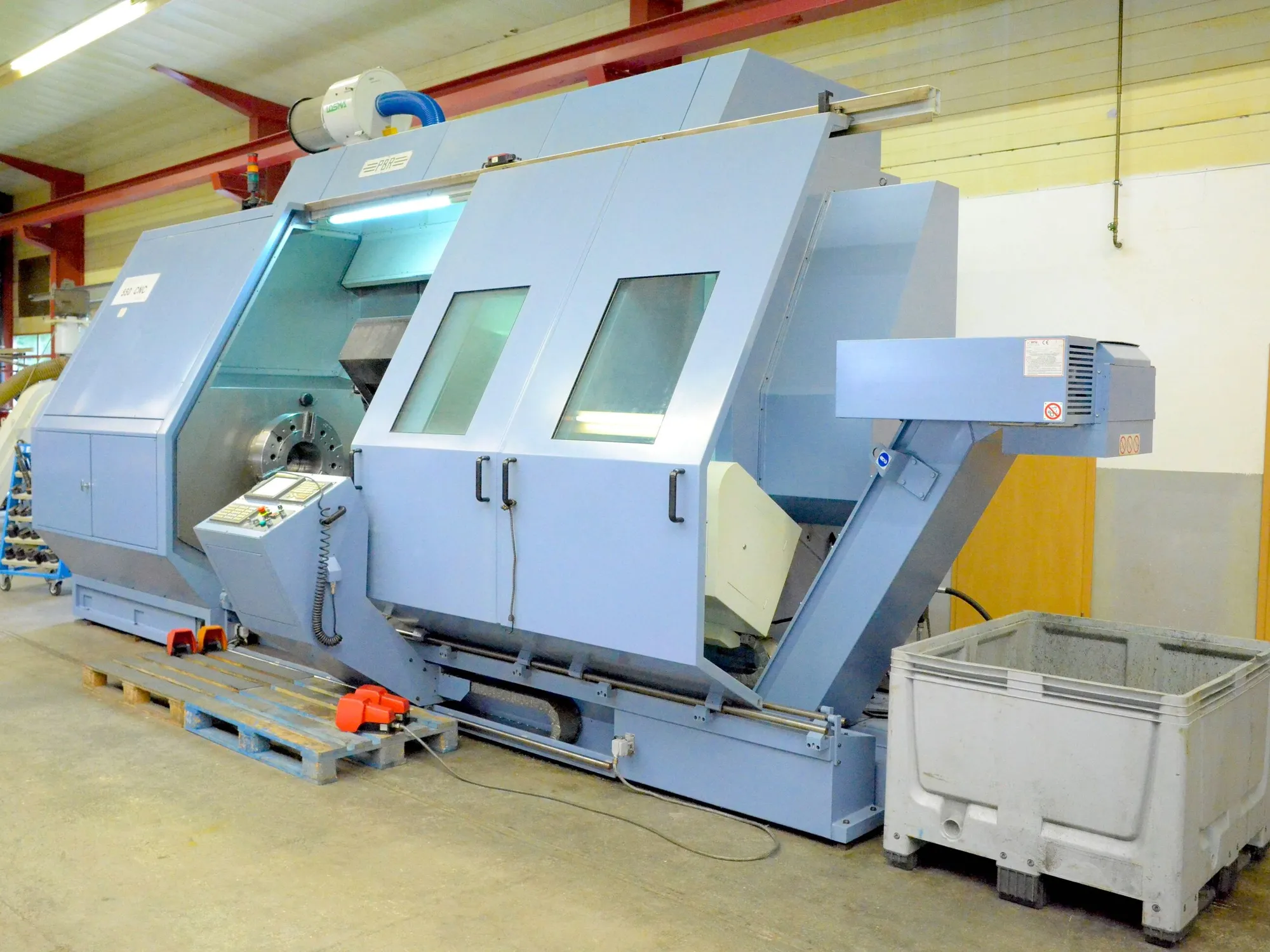

USED PBR A550 CNC

Bed width: 1300 mm51,18 in
Guide-ways number: 4
Max working lenght: 2000 mm78,74 in
Bed width: 1300 mm51,18 in
Guide-ways number: 4 mm0,16 in
Max weight between centres: 8.000 Kg
Max weight on steadies: 10.000 Kg
Max diameter on bed: 1100 mm43,31 in
Max diameter on cross-slide: 930 mm36,61 in
CNC: FANUC 18i-TB
Drives: Fanuc
Notes: Manual Guide
Max rotation speed: 10 - 1.720 rpm
Spindle nose: A1-15
Spindle hole: 130 mm5,12 in
Internal bearing diameter: 190 mm7,48 in
Chuck diameter: SMW-Autoblock ø630 mmSMW-Autoblock ø24,80 in
Max power: 51 Kw
Max torque: 10.338 Nm
Accuracy (C axis): 0,001 °
Gearbox: 2: I 48 - 320 / II 260 - 1720
Quill diameter: 180 mm7,09 in
Quill stroke: 200 mm7,87 in
Taper: MK6
Positions number: 12
Number of driven stations: 6
Axis stroke X: 580 mm22,83 in
Axis stroke Z: 2100 mm82,68 in
Rapid feed X: 8 m/min314,96 ipm
Rapid feed Z: 8 m/min314,96 ipm
Driven tools power: 5,5 Kw
Total power supply: 400V / 78 Kw
Machine total weight: 19.700 Kg
Floor space: 7300x2810x2915 mm287,40x110,63x114,76 in
Hydraulic steady: Morari SLZWB-140450 ø140-450mm
Fixed toolholders: 20
Driven toolholders: 4
Autocentering chuck: SMW-Autoblock ø630mm
Platform: manuale 4 griffe ø630
Chip conveyor: yes
Tool presetter: yes
Coolant pump: 50Bar
Protections: integrali CE
Availability: Pronta
Relevant updates made on the machine: condizioni pari al nuovo
