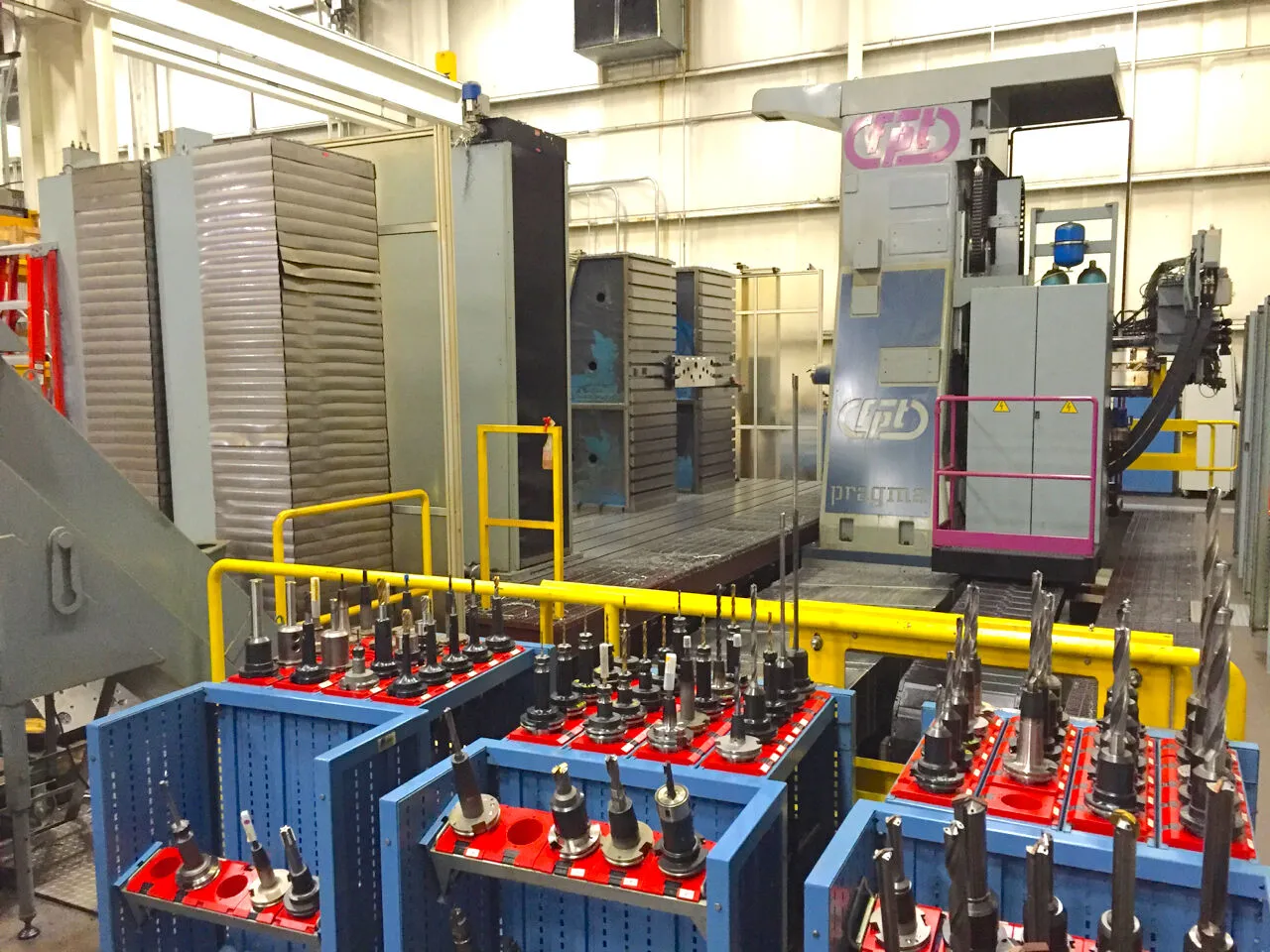

USED FPT PRAGMA M60

Longitudinal (X): 6000 mm236,22 in
Vertical (Y): 2000 mm78,74 in
Cross RAM (Z): 1200 mm47,24 in
Axes support: guide lineari
Spindle power: 24/27,5 Kw
Gearbox: 0-235 / 235-5000
Rotating speed: 0-5000 Rpm
Torque: 1120 Nm
Taper: ISO50
RAM section: 450x530 mm17,72x20,87 in
Rapid X: 30 m/min1.181,10 ipm
Rapid Y: 30 m/min1.181,10 ipm
Rapid Z: 30 m/min1.181,10 ipm
X: 15 m/min590,55 ipm
Y: 15 m/min590,55 ipm
Z: 15 m/min590,55 ipm
Positions: 24
Max tool diameter: 125 mm4,92 in
Max diam with free adiacent space: 230 mm9,06 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 20 Kg
Tool taper: ISO50 / HSK63
Position: Pickup station
Floorspace (LxWxH): 7000x2000x300 mm275,59x78,74x11,81 in
T slots number: 8
Type: FPT TUPCG CSA
Spindle taper: ISO50
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max torque: 1120 Nm
Max speed: 5000 Rpm
Max power: 27.5 Kw
Coolant: interno 20 bar
Notes: testa automatica a posizionamento continuo
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max speed: 22.000 Rpm
Max power: 27,5 Kw
Max torque: 1120 Nm
Max speed: 5000 Rpm
Max power: 27.5 Kw
CNC: FIDIA C10
Measuring system: pressurized linear scale
Drives: Siemens
Notes: connessione Ethernet
Positions: 3
Relevant updates made on the machine: retrofitting con Heidenhain iTNC530 in 2014, revisione testa 2015, revisione viti, chiocciole asse Z, Rack & pinion asse X in 2015/2016
Total power supply: 62 HP
Floor space: 11200x8099x4230 (incl. piano stolle e protezioni perimetrali) mm440,94x318,86x166,54 (incl. piano stolle e protezioni perimetrali) in
Tooling included: n.2 squadre 2500x1000x1200mm con cave a T, n.1 piano Stolle 7000x2000x300mm,
High Pressure: 20Bar attraverso mandrino
Filtration unit: Vasca filtro a carta
Chiller: si
Housing: perimetrale completa
Chip conveyor: si
Available under power: si
Machine total weight: ≈50.000 Kg
