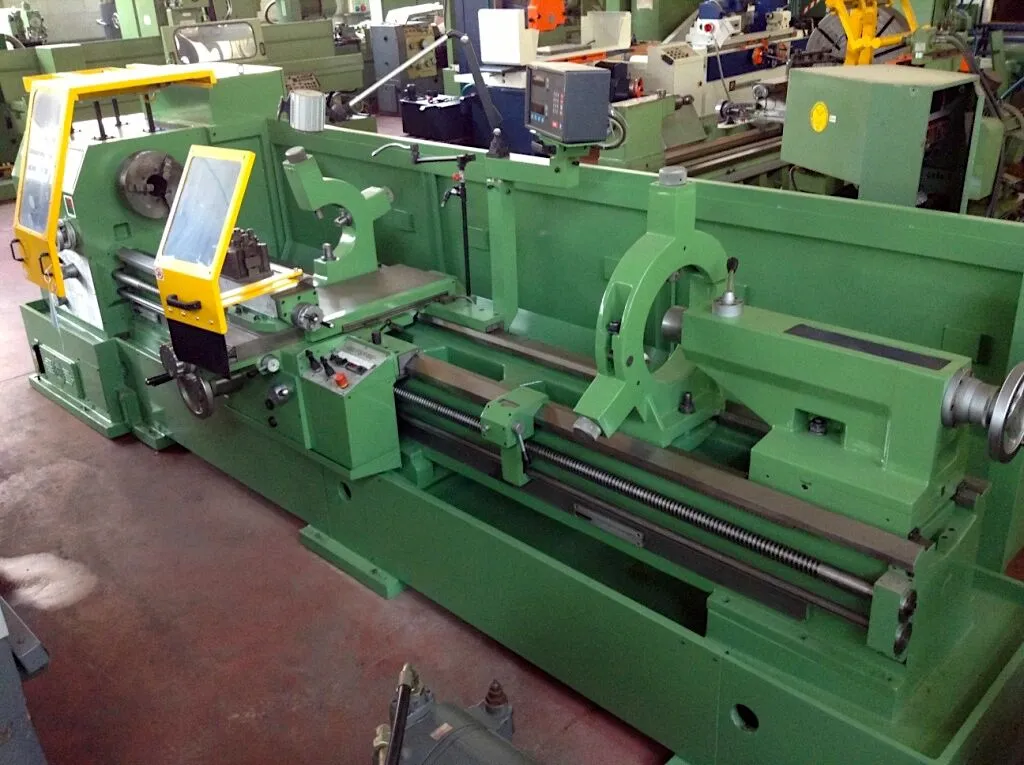

USED PBR T30 300X3000MM

Centres distance: 3000 mm118,11 in
Centres height: 300 mm11,81 in
Bar passage: 105 mm4,13 in
Longitudinal (Z): 3000 mm118,11 in
Max diameter on the bed: 625 mm24,61 in
Max swing on saddle: 378 mm14,88 in
Spindle power: 17 Kw
Spindle speed: 4 gamme, 0-2000 Rpm
Spindle taper: CL 8”
Spindle torque: 2440 Nm
Notes: Diametro mandrino: 105mm
Bed width: 450 mm17,72 in
Guide-ways number: 2 mm0,08 in
Max weight between centres: 3000 Kg
Max weight on steadies: 5000 Kg
Saddle Width: 750 mm29,53 in
Z stroke: 3000 mm118,11 in
X stroke: 450 mm17,72 in
Max swing diam on saddle: 625 mm24,61 in
Z feeds: 1-6000 mm/min0,0394-236,2200 ipm
X feeds: 1-6000 mm/min0,0394-236,2200 ipm
Z rapid feed: 6500 mm/min255,9050 ipm
X rapid feed: 6500 mm/min255,9050 ipm
Quill diameter: 115 mm4,53 in
Quill stroke: 250 mm9,84 in
Taper: CM 5
Machine total weight: 4650 Kg
Total power supply: 15 Kw
Floor space: 5400x1520x1500 mm212,60x59,84x59,06 in
Digital read out (DRO): DRO
Open steadies: 1
Closed steadies: 1
Protections: Sì
Availability: Pronta
Available in stock: Sì
Available under power: Sì, previo appuntamento
Autocentering chuck: 3 griffe 315mm
Platform: 4 griffe 500mm
