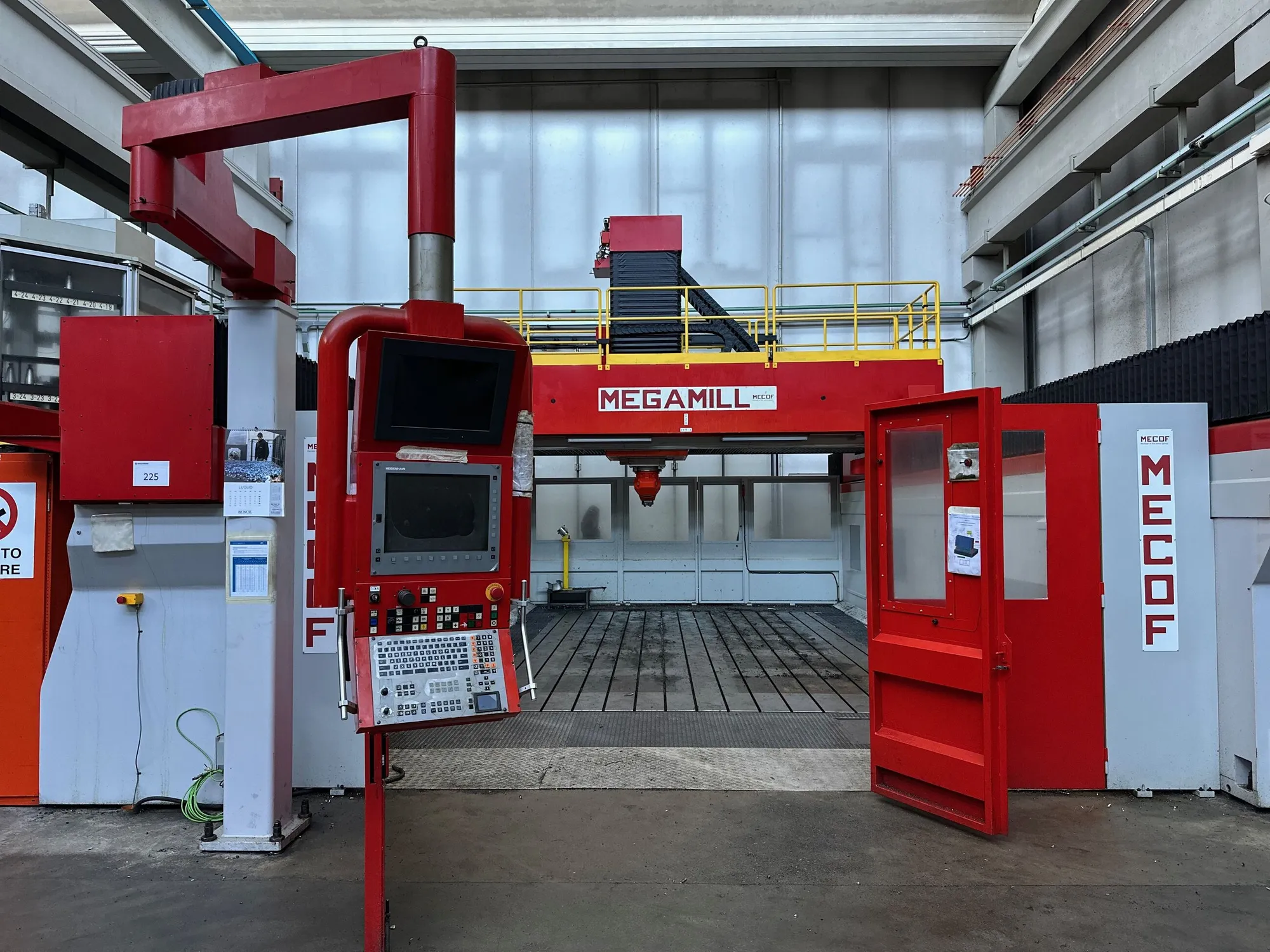

USED MECOF MEGAMILL HP5

Longitudinal (X): 7500 mm295,28 in
Vertical RAM (Y): 1500 mm59,06 in
Cross Crossrail (Z): 4000 mm157,48 in
Column distance: 5400 mm212,60 in
Spindle nose - table distance: 1700 mm66,93 in
CNC: Heidenhain iTNC530
RAM section: 600x550 mm23,62x21,65 in
Spindle power: 52 Kw
Torque: 1000/1500 Nm
Support: 4 guide integrali temprate con 24 pattini
Rapid X: 30 m/min1.181,10 ipm
Rapid Y: 30 m/min1.181,10 ipm
Rapid Z: 30 m/min1.181,10 ipm
Positions: 180
Max tool diameter: 100 mm3,94 in
Max diam with free adiacent space: 240 mm9,45 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 35 Kg
Tool taper: ISO50 /HSK63E
Floorspace (LxWxH): 7000x4000 mm275,59x157,48 in
Capacity: 15.000 Kg/mq
Positions: 2
Type: DCB6 a posizionamento millesimale automatico
Spindle taper: ISO50
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max torque: 1000/1500 Nm
Max speed: 6000 Rpm
Max power: 38/57 Kw
Coolant: Est 6 Bar - Int 40 Bar
Type: DW54 - Testa Twin elettromandrino E54
Spindle taper: HSK63E
A axis: ∞x0,001 °
C axis: ∞x0,001 °
Max torque: 35,4 Nm
Max speed: 26000 Rpm
Max power: 38/57 Kw
Coolant: Est 6 Bar - Int 40 Bar
Floor space: 12500x8200x6050 mm492,13x322,83x238,19 in
High Pressure: 40Bar 1000lt.
Filtration unit: 30/60µm
Workpiece touch probe: Si
Tool presetter: Si
