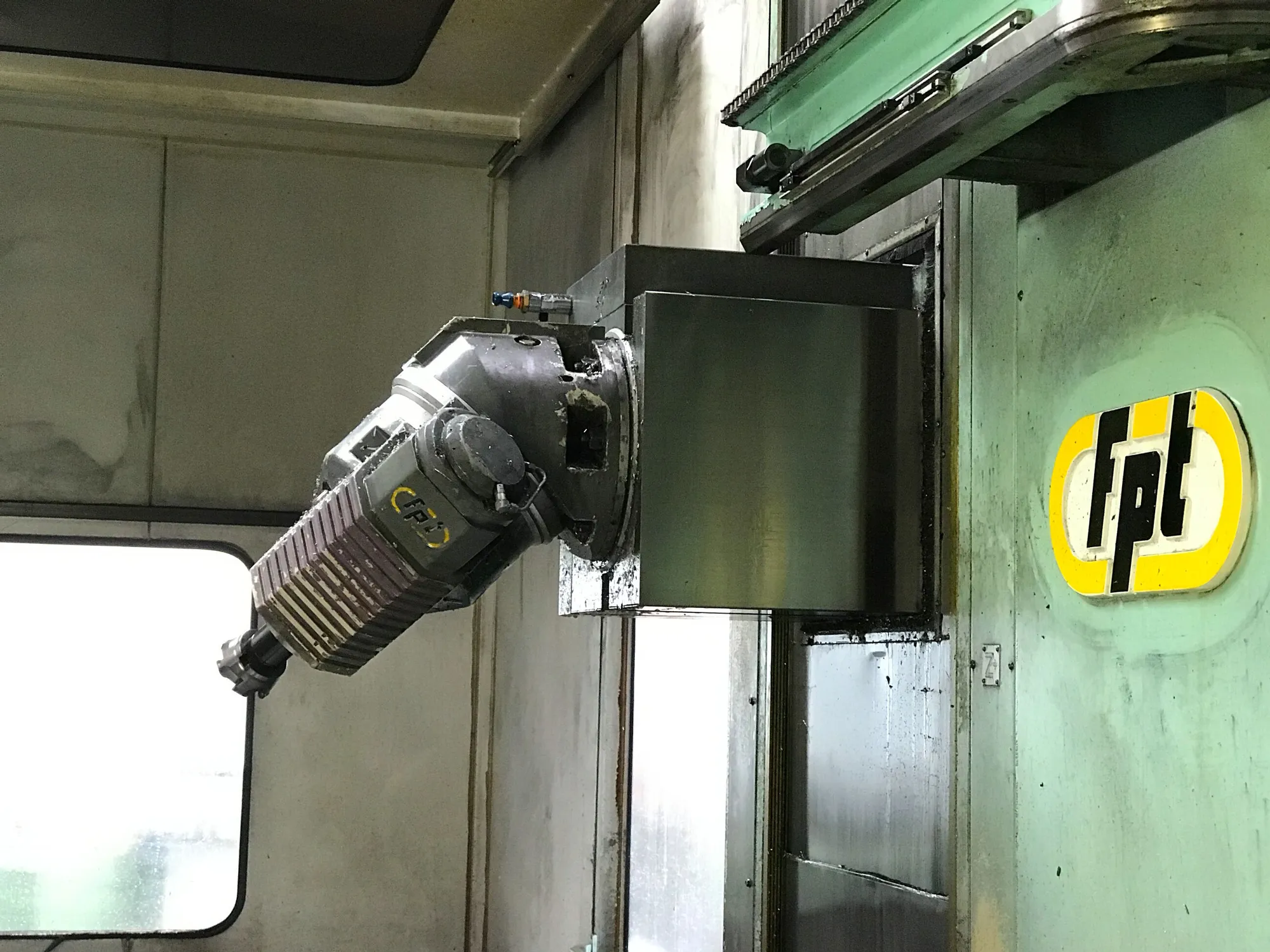

USED FPT LEM 934

Longitudinal (X): 2000 mm78,74 in
Vertical (Y): 1620 mm63,78 in
Cross RAM (Z): 1200 mm47,24 in
Axes support: turcite
CNC: Heidenhain TNC425
Positions: 30
Tool taper: ISO50
Max tool diameter: 125 mm4,92 in
Max diam with free adiacent space: 220 mm8,66 in
Max tool lenght: 400 mm15,75 in
Max tool weight: 20 Kg
Position: sulla colonna
Rotating speed: 4000 Rpm
Taper: ISO50
Surface: 1000x1000 mm39,37x39,37 in
Accuracy (B axis): 0,001 °
Capacity: 5000 Kg
Floorspace (LxWxH): 2500x920 mm98,43x36,22 in
A axis: 144x2,5 °
C axis: 144x2,5 °
Max speed: 4000 Rpm
Max power: 22 Kw
Rapid X: 12 m/min472,44 ipm
Rapid Y: 12 m/min472,44 ipm
Rapid Z: 12 m/min472,44 ipm
Housing: ful
Machine total weight: 11000 Kg
Floor space: 6100x3295 mm240,16x129,72 in
Availability: pronta
Available in stock: si
