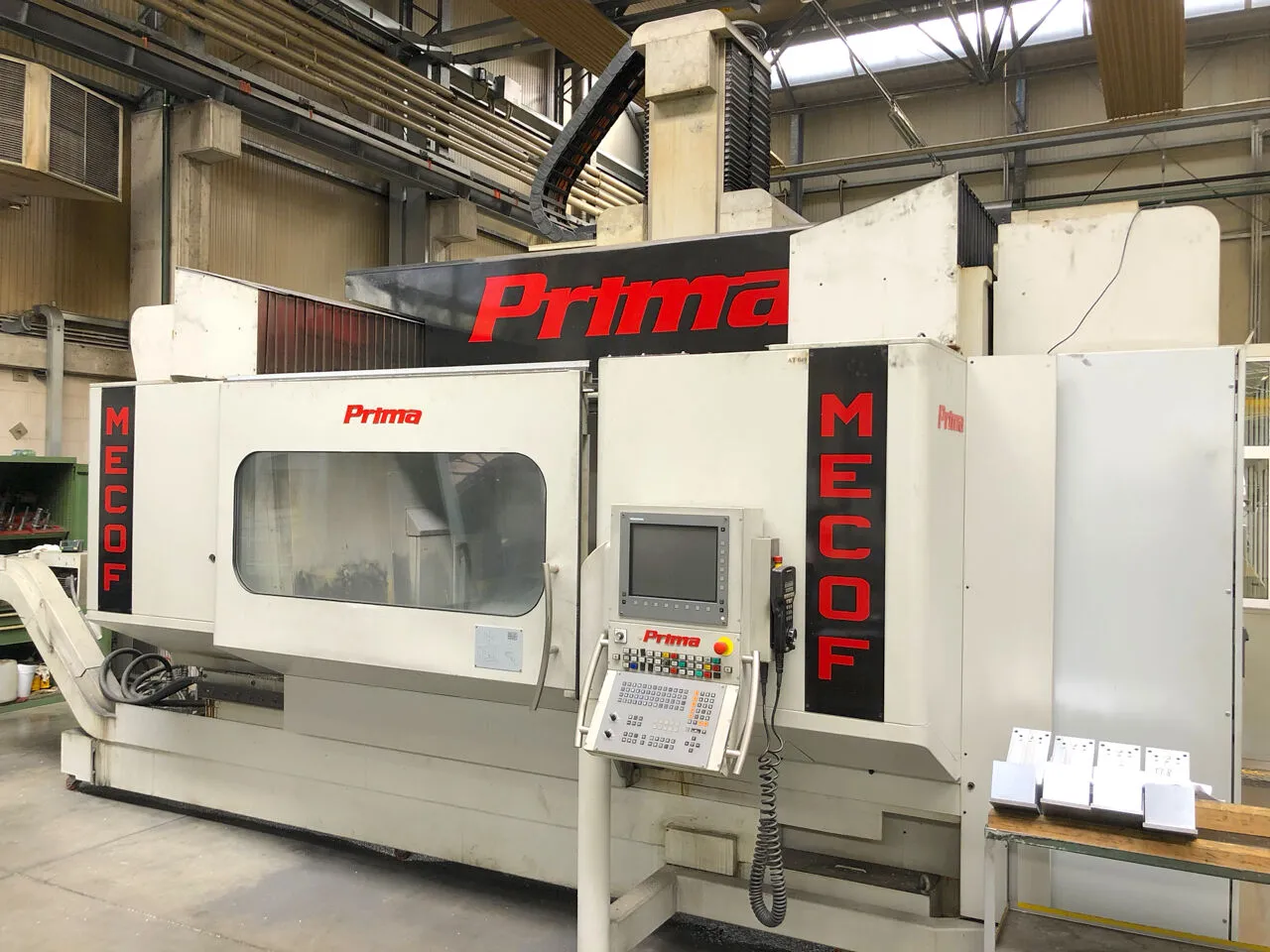

USED MECOF PRIMA

Longitudinal (X): 1400 mm55,12 in
Vertical RAM (Y): 800 mm31,50 in
Cross Crossrail (Z): 1650 mm64,96 in
Axes support: guide lineari a ricircolo di rulli
Notes: Motori lineari su tutti gli assi
CNC: Heidenhain TNC530
Measuring system: Righe ottiche Heidenahin
RAM section: 400x400 mm15,75x15,75 in
Spindle power: 30(S6)-24(S1) Kw
Rotating speed: 500-18.000 Rpm
Torque: 100(S6)-80(S1) Nm
Taper: HSK63A
Notes: Elettromandrino MG1
Rapid X: 100 m/min3.937,00 ipm
Rapid Y: 100 m/min3.937,00 ipm
Rapid Z: 100 m/min3.937,00 ipm
X: 60 m/min2.362,20 ipm
Y: 60 m/min2.362,20 ipm
Z: 60 m/min2.362,20 ipm
Positions: 24
Max tool diameter: 80 mm3,15 in
Max tool lenght: 300 mm11,81 in
Tool taper: HSK63A
Max tool weight: 7 Kg
Floorspace (LxWxH): 1800x1500 mm70,87x59,06 in
T slots number: 6
Total weight capacity: 10000 Kg
Type: TWIN MG1
Spindle taper: HSK63A
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max speed: 18.000 Rpm
Max power: 30 Kw
Max torque: 100 Nm
Notes: cuscinetti testa nuovi
Machine total weight: 39000 Kg
Floor space: 6520x2930x3560 mm256,69x115,35x140,16 in
Tool presetter: si
Housing: integrale
Availability: pronta
