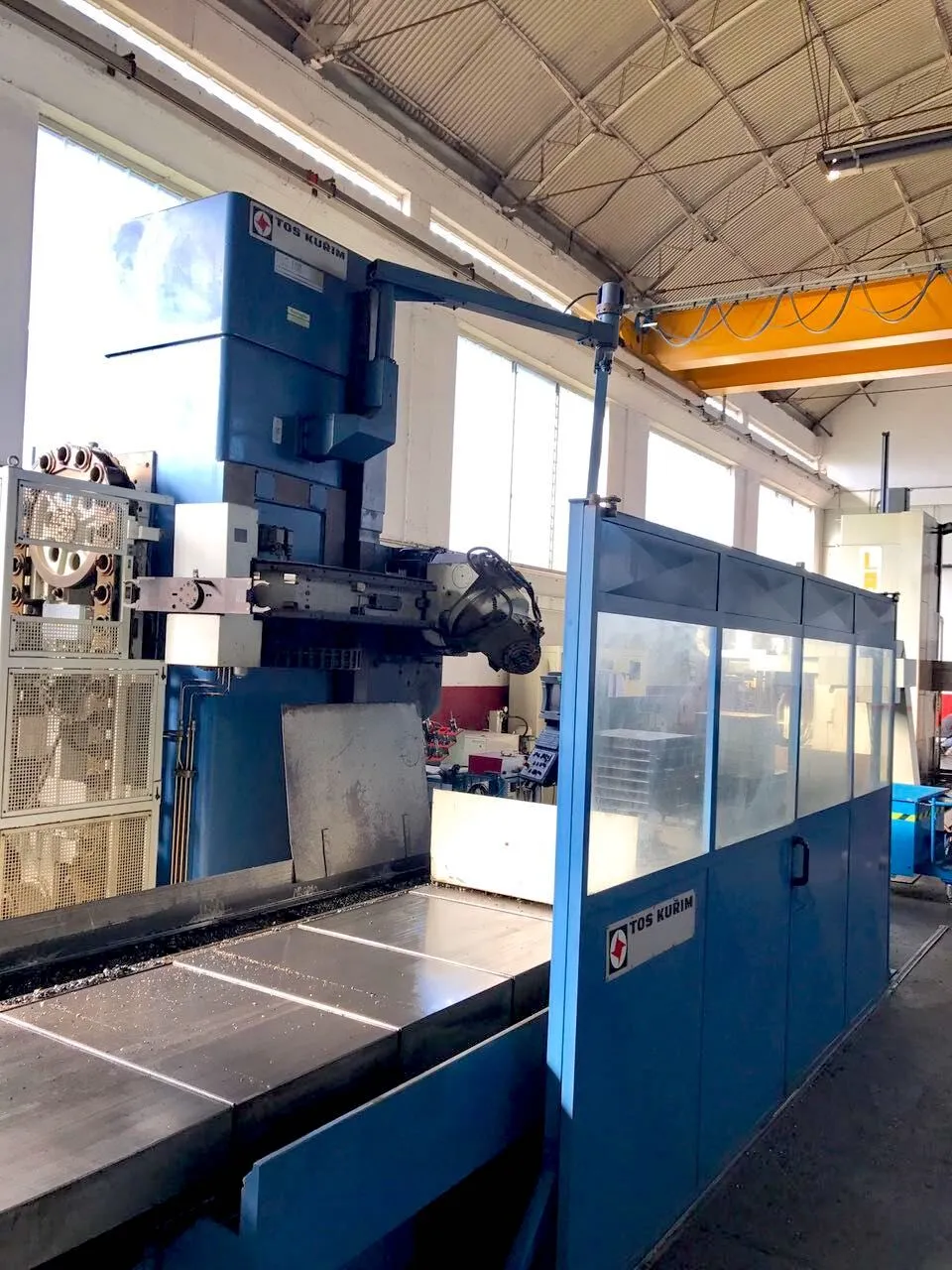

USED TOS KURIM FSQ100 OR/A3

Longitudinal (X): 3000 mm118,11 in
Vertical (Y): 1400 mm55,12 in
Cross RAM (Z): 1000 mm39,37 in
CNC: SELCA 4040D
Measuring system: Righe ottiche
Spindle power: 22/27,5 Kw
Rotating speed: 11-4000 Rpm
Taper: ISO50 DIN69871
Gearbox: 2 gamme meccaniche
Torque: 1200 Nm
Rapid X: 15 m/min590,55 ipm
Rapid Y: 10 m/min393,70 ipm
Rapid Z: 10 m/min393,70 ipm
X: 5 m/min196,85 ipm
Y: 5 m/min196,85 ipm
Z: 5 m/min196,85 ipm
Positions: 40
Tool taper: ISO50 DIN69871
Floorspace (LxWxH): 3000x1000 mm118,11x39,37 in
Type: Universale Birotaitva Automatica tipo ”O”
Spindle taper: ISO50 DIN69871
A axis: 2x180 °
C axis: 144x2,5 °
Max speed: 11-4000 Rpm
Max power: 22/27,5 Kw
Coolant: esterno
Max torque: 1200 Nm
Machine total weight: 23000 Kg
Housing: Protezioni frontali CE
Availability: Pronta
Available under power: Si
Chip conveyor: si
