NEW SQUARE D AFH2316G4STM

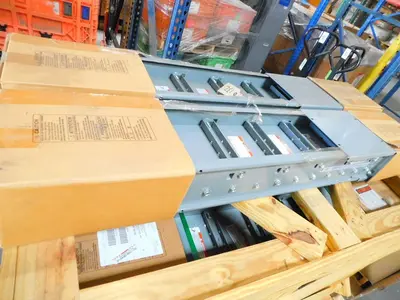

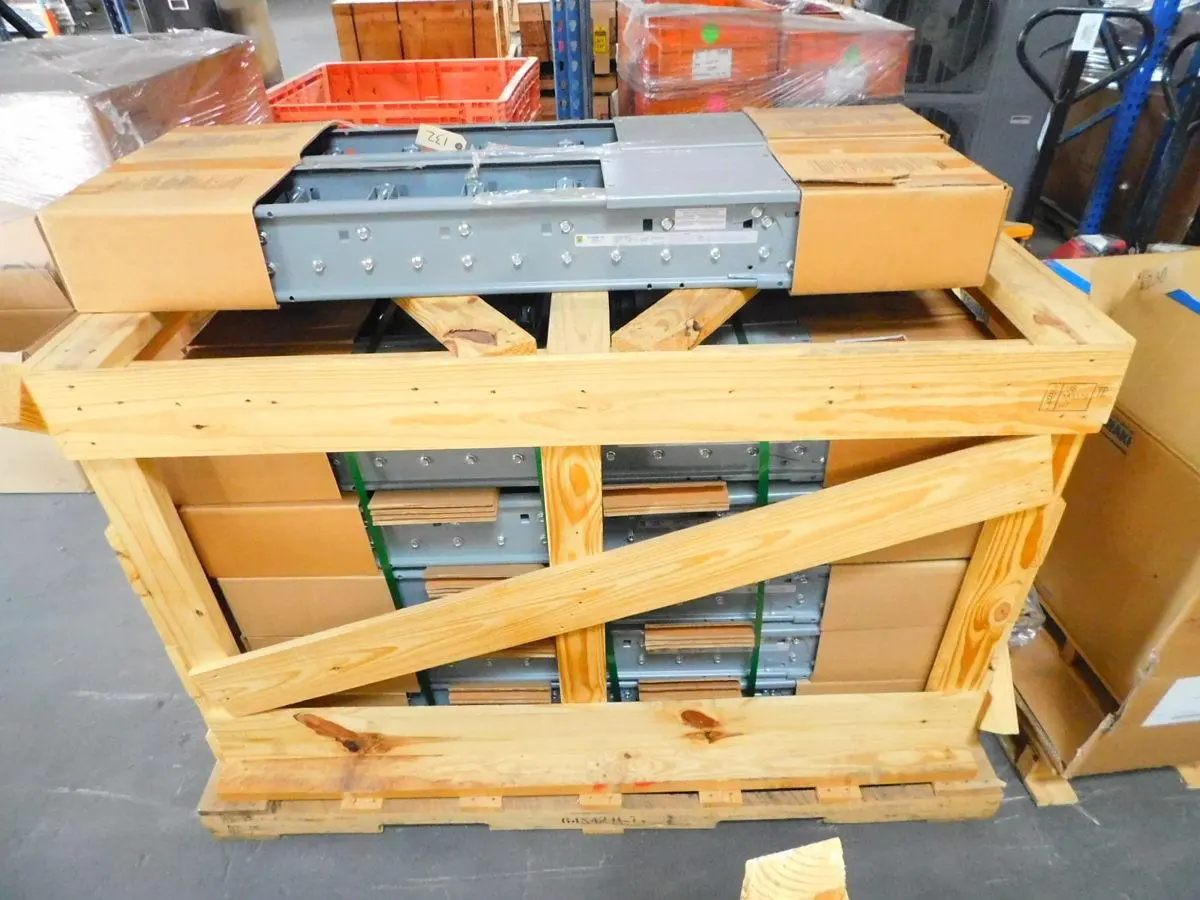

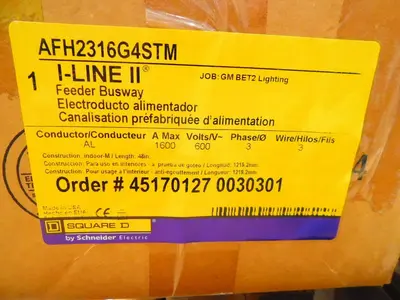

THE SQUARE D AFH2316G4STM I-LINE II FEEDER ALUMINUM BUSWAY IS A 3-PHASE, 3-WIRE SYSTEM COMPONENT RATED FOR 600 VAC AND 1600A. THIS STRAIGHT SECTION BUSWAY, CONSTRUCTED WITH ALUMINUM CONDUCTORS, HAS A NOMINAL LENGTH OF 4 FEET. THE MODEL DESIGNATION SIGNIFIES AN ALUMINUM FEEDER BUSWAY ('AF') WITH A HORIZONTAL MOUNTING DESIGN ('H'). THE '23' INDICATES A 3-PHASE, 3-WIRE CONFIGURATION FOR 600V SYSTEMS, AND '16' REPRESENTS THE 1600A CURRENT RATING. THE 'G4' DENOTES A 4-FOOT STANDARD LENGTH SECTION, AND 'STM' IDENTIFIES IT AS A STRAIGHT SECTION EQUIPPED WITH INTEGRAL MALE AND FEMALE INTERCONNECTION ENDS. THIS I-LINE II BUSWAY FEATURES A TOTALLY ENCLOSED DESIGN, SUITABLE FOR GENERAL INDOOR POWER DISTRIBUTION APPLICATIONS.
