USED GE 2336058 46-155500G18

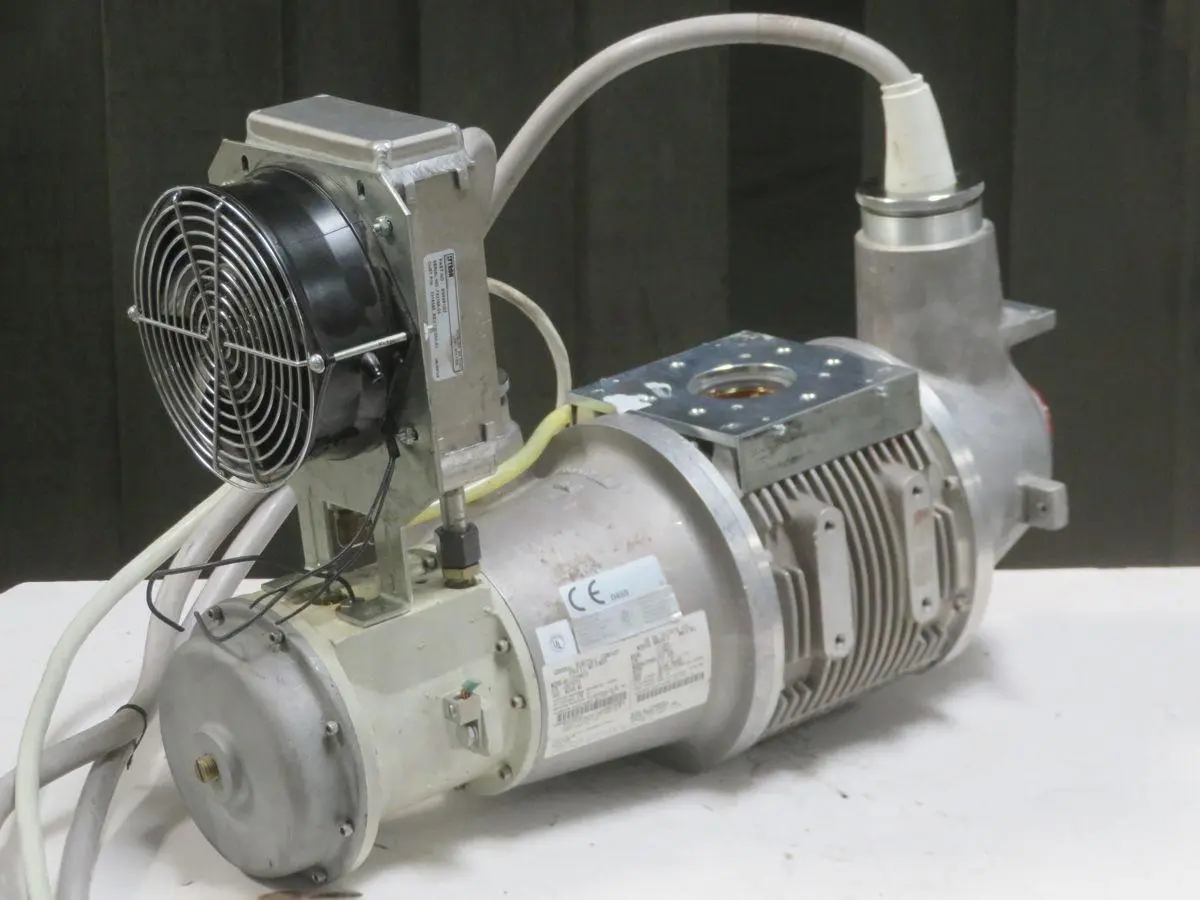

THE GENERAL ELECTRIC 2336058 46-155500G18 IS AN MX100 INSERT X-RAY TUBE ASSEMBLY DESIGNED FOR MEDICAL IMAGING APPLICATIONS. IT FEATURES A MAXIMUM ANODE-TO-CATHODE POTENTIAL OF 150 KV AND INCORPORATES ALUMINUM FILTRATION EQUIVALENT AT 150 KV. THE TUBE ASSEMBLY UTILIZES A TUNGSTEN-RHENIUM ALLOY TARGET WITH A 7-DEGREE TARGET ANGLE. IT PROVIDES DUAL FOCAL SPOTS MEASURING 0.6 MM AND 1.2 MM, SUPPORTING A MAXIMUM ANODE INPUT POWER OF 100 KW. THE ANODE POSSESSES A HEAT CAPACITY OF 6.3 MHU (MEGA HEAT UNITS), WHILE THE HOUSING HEAT CAPACITY IS 1.4 MJ.
