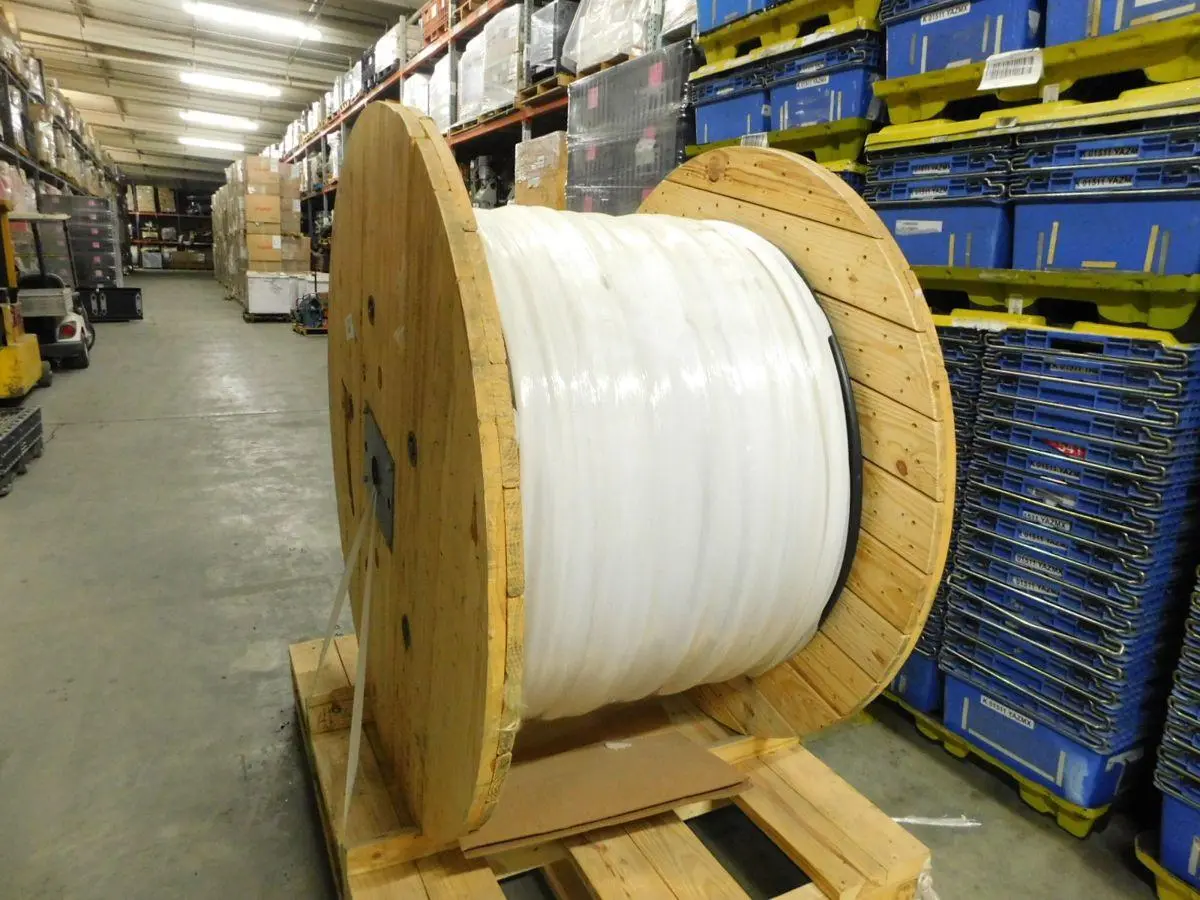

NEW BELDEN TU-SLG-012-RN2N

THE BELDEN MODEL TU-SLG-012-RN2N IS A 12-FIBER OS2 SINGLEMODE (G.652.D, G.657.A1 COMPLIANT) MULTI-LOOSE TUBE FIBER OPTIC CABLE DESIGNED FOR INDOOR AND OUTDOOR APPLICATIONS, INCLUDING DIRECT BURIAL. ITS CONSTRUCTION FEATURES GEL-FILLED LOOSE TUBES AND DRY WATER-BLOCKING ELEMENTS TO ENSURE MOISTURE PROTECTION. THE CABLE INCORPORATES A UV-RESISTANT LOW SMOKE ZERO HALOGEN (LSZH) OUTER SHEATH, CONTRIBUTING TO ITS DURABILITY AND SAFETY IN VARIOUS ENVIRONMENTS. KEY PERFORMANCE SPECIFICATIONS INCLUDE AN APPROXIMATE OUTER DIAMETER OF 8.8 MM. IT IS RATED FOR AN OPERATING TEMPERATURE RANGE OF -30°C TO +70°C, WITH AN INSTALLATION TEMPERATURE RANGE OF -20°C TO +60°C. MECHANICAL CHARACTERISTICS INCLUDE A LONG-TERM TENSILE STRENGTH OF 800 N AND A SHORT-TERM TENSILE STRENGTH OF 1600 N, ALONGSIDE A CRUSH RESISTANCE OF 1500 N/10CM (LONG-TERM) AND 3000 N/10CM (SHORT-TERM). THE MINIMUM STATIC BEND RADIUS IS 10 TIMES THE CABLE'S OUTER DIAMETER, AND THE DYNAMIC BEND RADIUS IS 20 TIMES THE OUTER DIAMETER.
