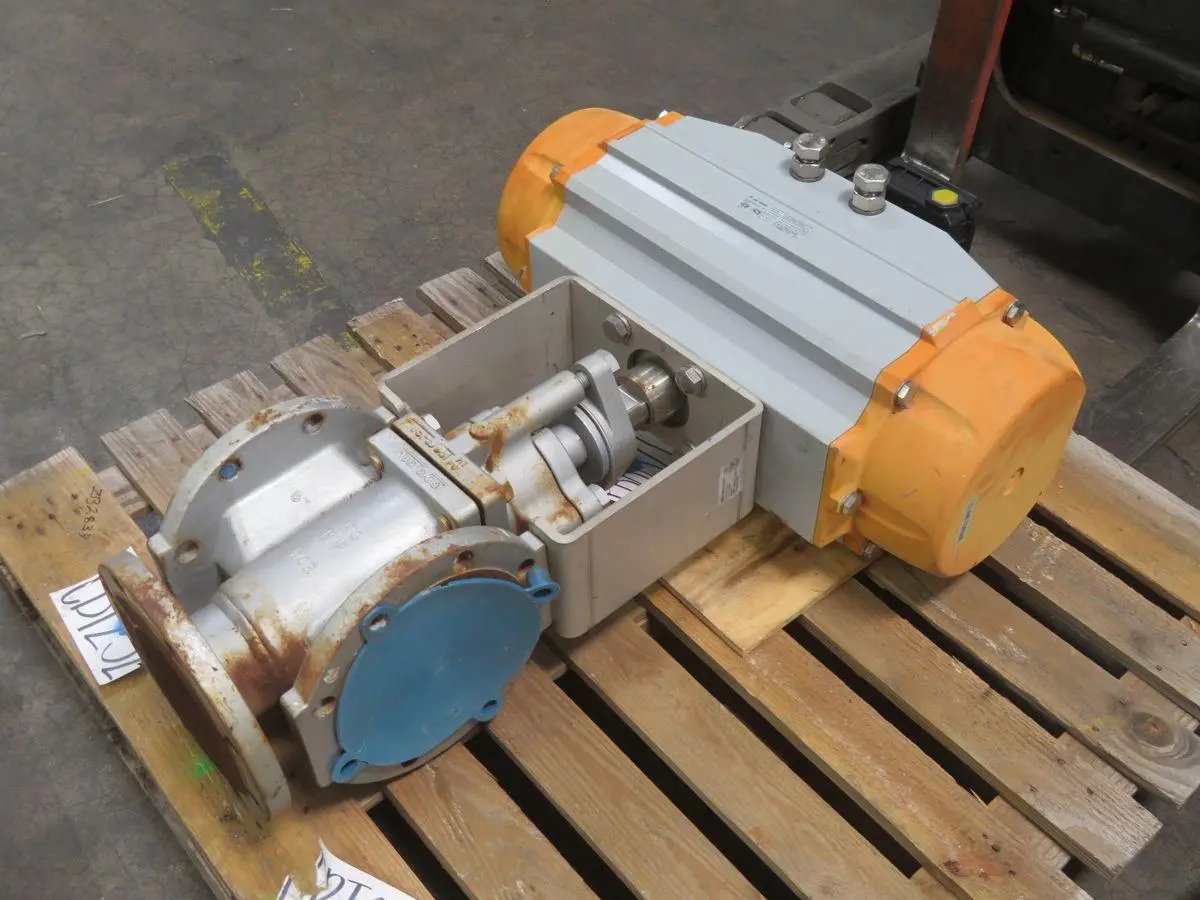

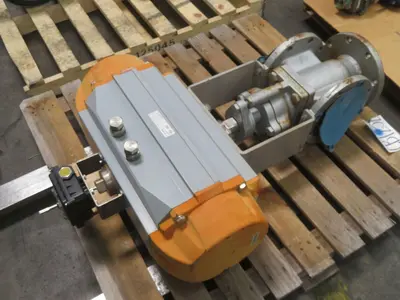

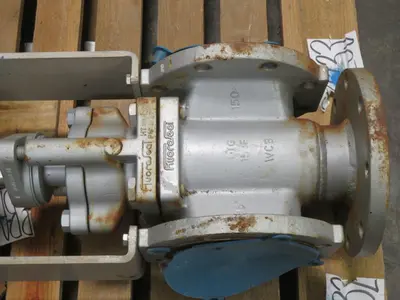

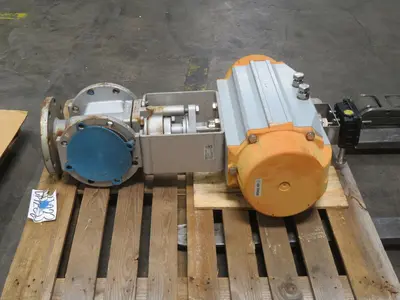

USED AIR TORQUE PT700 S12

THE AIR TORQUE PT700 S12 PNEUMATIC VALVE ACTUATOR IS A SPRING RETURN MECHANISM DESIGNED FOR 0-90 DEGREE ROTATION. IT DELIVERS A MINIMUM OUTPUT TORQUE OF 1309 NM AND A MAXIMUM OF 1803 NM AT 6 BAR SUPPLY PRESSURE. THE MAXIMUM PERMISSIBLE OPERATING PRESSURE IS 8 BAR. ITS CONSTRUCTION FEATURES AN ALUMINUM ALLOY BODY WITH A HARD ANODIZED FINISH, HARD ANODIZED ALUMINUM PISTONS, AND A NICKEL-PLATED STEEL PINION. THE END CAPS ARE MADE OF POWDER-COATED DIE-CAST ALUMINUM. IT UTILIZES A NICKEL-PLATED CARBON STEEL OUTPUT SHAFT WITH A DOUBLE SQUARE CONFIGURATION AND CONFORMS TO THE ISO 5211 F16 MOUNTING STANDARD, INCLUDING A NAMUR INTERFACE FOR ACCESSORY MOUNTING. AIR CONNECTIONS ARE G 1/4" NPT, AND THE STANDARD OPERATING TEMPERATURE RANGE IS -20°C TO +85°C.
