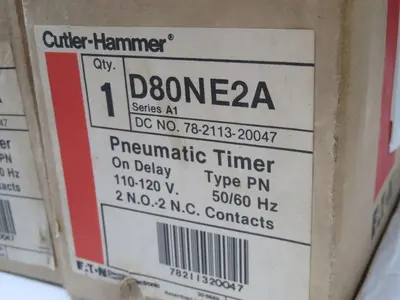

NEW EATON D80NE2A

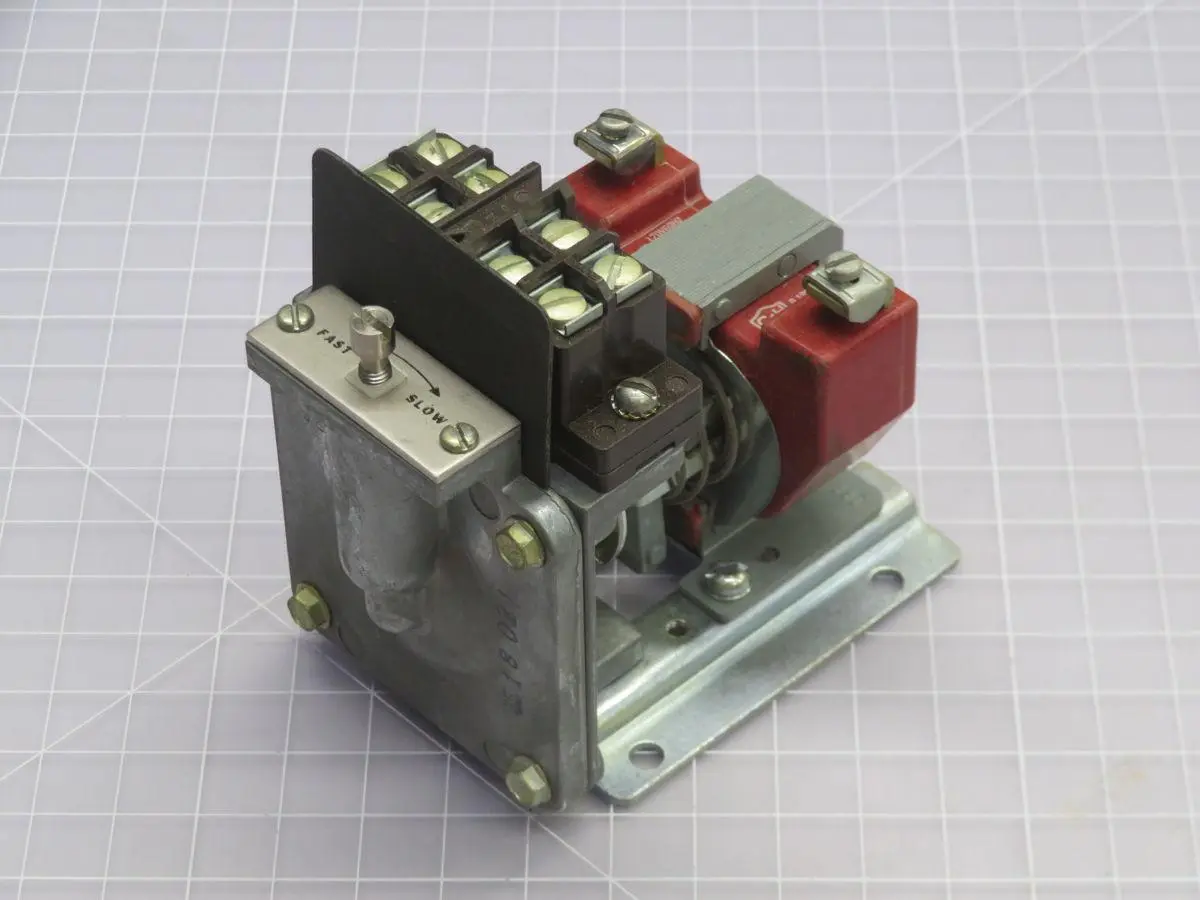

The Eaton D80NE2A is an on-delay timing relay from the D80 series, designed for surface mounting with screw termination. It features a 120 VAC coil and provides a delay range adjustable from 0.5 to 180 seconds via a knob. The relay incorporates a 2-normally open (2NO) and 2-normally closed (2NC) contact configuration. Its contacts are rated for 10 A resistive load at 120/240 VAC, with a B300 pilot duty rating. Operating frequency is 50/60 Hz, and typical power consumption is approximately 6 VA. The operational temperature range is specified from -10 °C to 55 °C.
