USED HYDRA-CELL PUMP D03SABTHFECA A-959985

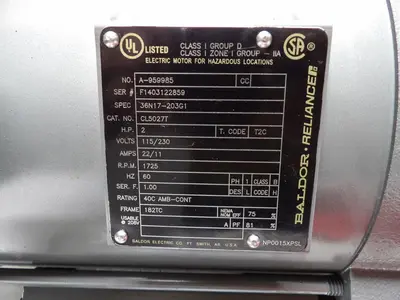

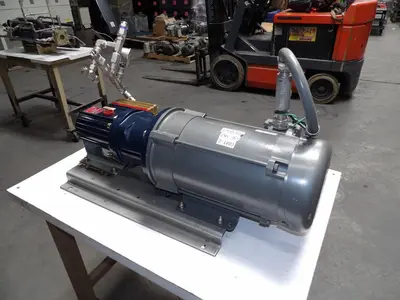

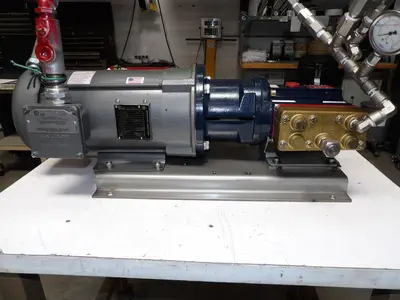

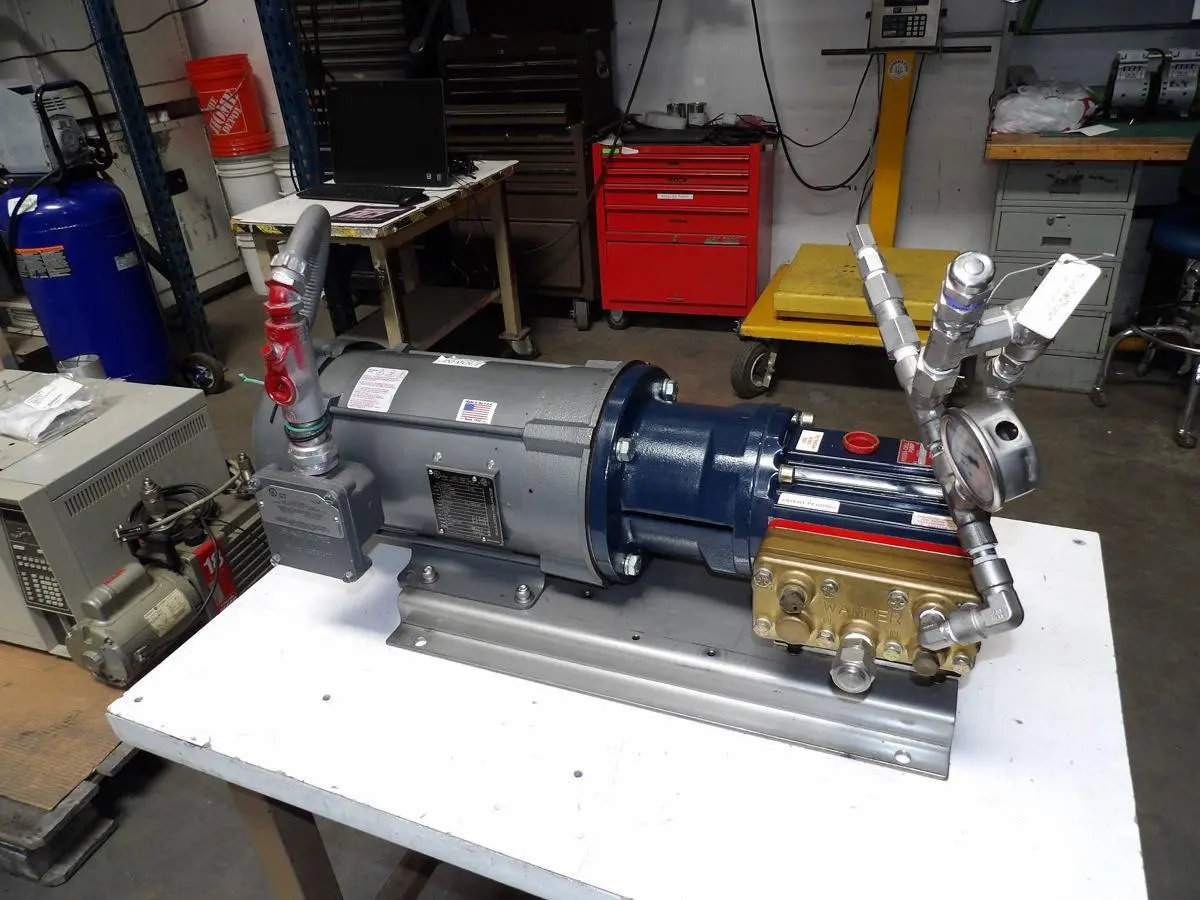

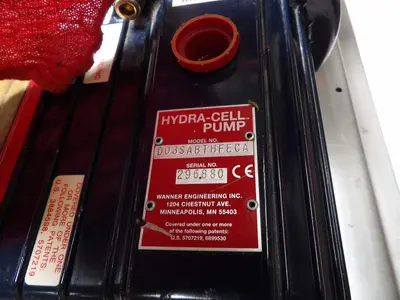

THE HYDRA-CELL PUMP D03SABTHFECA IS A POSITIVE DISPLACEMENT HYDRAULIC UNIT CONFIGURED WITH A BALDOR-RELIANCE M7131 MOTOR. THE PUMP, A D03 SERIES MODEL, FEATURES A MAXIMUM FLOW RATE OF 3.0 GPM (11.4 LPM) AND A MAXIMUM OPERATING PRESSURE OF 1200 PSI (83 BAR). ITS WETTED COMPONENTS, INCLUDING VALVES, ARE CONSTRUCTED FROM 316L STAINLESS STEEL, COMPLEMENTED BY TUNGSTEN CARBIDE VALVE SEATS AND AN FKM ELASTOMER DIAPHRAGM. THE PUMP HOUSING IS CAST IRON, AND CONNECTIONS ARE 1/2" NPT. THE INTEGRATED BALDOR-RELIANCE M7131 MOTOR IS RATED AT 1 HP WITH A ROTATIONAL SPEED OF 1725 RPM, OPERATING ON A 220 VAC, SINGLE-PHASE POWER SUPPLY. THIS PUMP-MOTOR ASSEMBLY IS DESIGNATED BY THE ALTERNATIVE PART NUMBER A-959985.
