NEW CCS HPD2-250RD

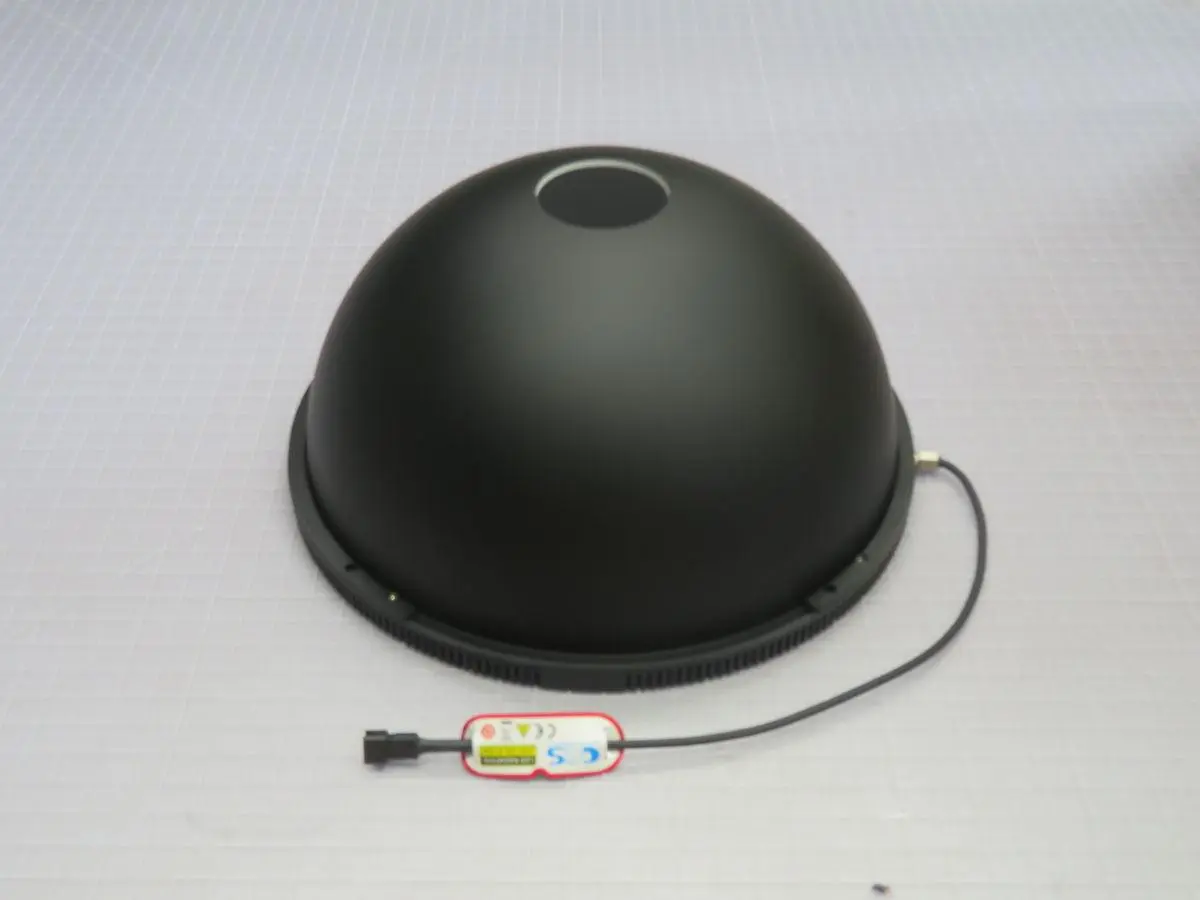

THE CCS HPD2-250RD IS A HIGH-POWER, RED LED DOME LIGHT OPERATING AT A PEAK WAVELENGTH OF 635 NM. ENGINEERED FOR MACHINE VISION APPLICATIONS, IT DELIVERS CONSISTENT, DIFFUSED ILLUMINATION OPTIMIZED FOR GLOSSY, CURVED, OR UNEVEN SURFACES. THIS MODEL FEATURES A 266 MM OUTER DIAMETER, A 210 MM INNER DIAMETER, AND A HEIGHT OF 131.5 MM. ELECTRICALLY, IT OPERATES AT 24 VDC WITH A RATED CURRENT OF 0.88 A, RESULTING IN A MAXIMUM POWER CONSUMPTION OF 21.0 W. THE UNIT WEIGHS APPROXIMATELY 2.8 KG AND FUNCTIONS WITHIN AN OPERATING TEMPERATURE RANGE OF 0 TO 40 °C. IT PROVIDES THREE TIMES THE BRIGHTNESS OF PREVIOUS MODELS AND CONNECTS VIA AN M12 4-PIN MALE CONNECTOR.
